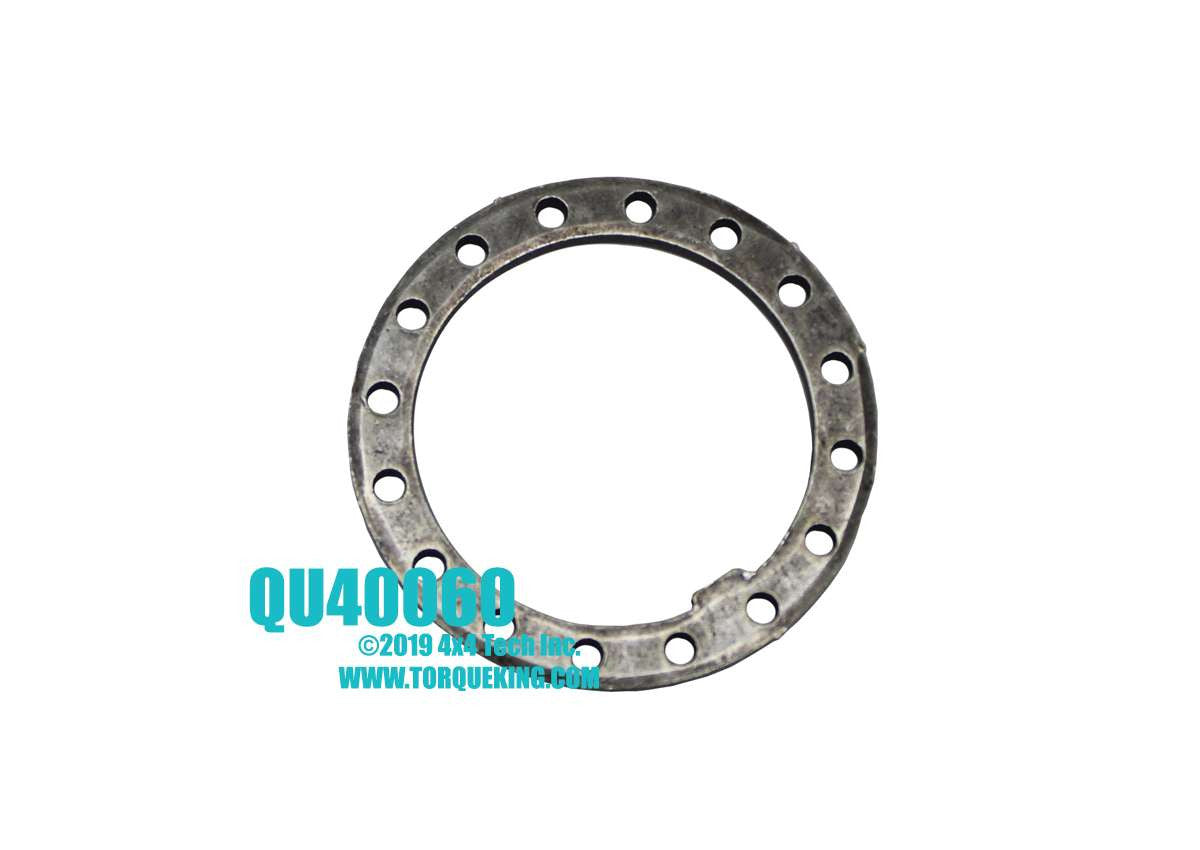

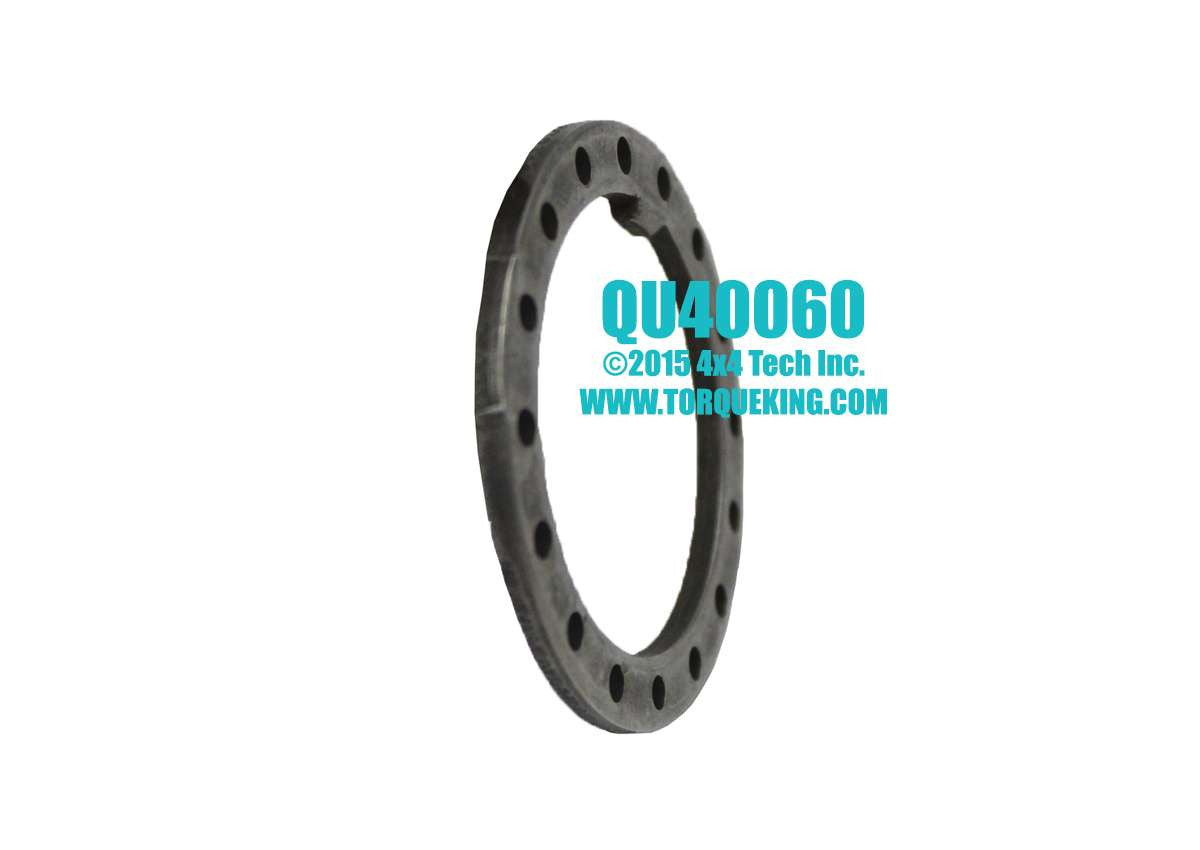

QU40060 Round Spindle Lock Washer

QU40060 Round Spindle Lock Washer for Dana 28IFS, Dana 30, Dana 35IFS, Dana 44 (All Makes), Dana 44IFS, 1973-1977 Ford F-250 Crew Cab Dana 60 front drive axles, and GM 10 (Chevy/GM) Bolt Front Axles. This washer was used between the inner and outer spindle nuts on most SUVs, 1/2 ton and 3/4 ton Chevy, Ford, and GM trucks with serviceable wheel bearings from the late 1950's to the early 1990's. Dodge used it from 1969-1974 and 1985 to 1993, Jeep J-series full size 4x4s had it from 1974-1991. USA Made.

Also see QK4727 Spindle Nut Kit.
Also See: QU40060U Used Round Spindle Lock Washer available while supplies last.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Older Ford Tabs
Size
Matching Parts
Applications

Tech Note 1: Older Ford Tabs
QU40060 has the correct ID and OD to fit 1971 and prior Ford Broncos with Dana 30 front axles, but the tab that engages the spindle slot is wider than the one on the no longer available washer used by Ford.

Tech Note 2: Size
QU40060 Spindle Washer fits spindles with thread diameters of 1-5/8" or 38mm.

Tech Note 3: Matching Parts
QA4769 1990-1997 Ford Dana 28IFS, 35IFS
QU40108 Dana 28IFS, Outer Spindle Nut
QU40123 Dana 28IFS Inner Spindle Nut with Pin
QK4727 Dana 30, 44, 44HD
QU40004 Dana 30, 44 Inner Spindle Nut
QU40031 Dana 30, 44 Outer Spindle Nut

Applications:

Chevy/GM:
K10, K20, K15, K25, Standard Dana 44: 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969
Dana 44 HD Closed Knuckle which uses a 3 piece double nut & washer set to adjust & retain wheel bearings: 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969
Blazer, Jimmy, 1/2 ton, 3/4 ton 4x4s Dana 44 Open Knuckle: 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
GM 10 Bolt 8.5" Front Axle: 1977, 1978, 1979, 1980, 1981

Dodge:
W-100 Dana 44 4x4s: 1969, 1970, 1971, 1972, 1973, 1974, 1975
Ramcharger, W-100, W-150, W-200, W-250 4x4s and Plymouth Traildusters with Dana 44 open knuckle: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

Ford Front Axle:
Ranger Pickup Dana 28IFS with 27 Spline Manual Lock Hubs: 1993, 1994, 1995, 1996, 1997
Bronco Dana 30: 1966, 1967, 1968, 1969, 1970, 1971
Ranger Pickup, Bronco II, Explorer with Dana 35IFS & 27 Spline Manual Lock Hubs: 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Bronco, F-100, F-150 F-250, Dana 44: 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
F-100 1/2 ton 4x4s Regular Cab trucks with Standard Dana 44 Closed Knuckle: 1959, 1960, 1961, 1962, 1963, 1964, 1965
F-250 3/4 ton 4x4s Regular Cab trucks with Standard Dana 44 Closed Knuckle: 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
F-250 3/4 ton 4x4s with Dana 44 Open Knuckle: 1976, 1977, 1978, 1979
F-250 3/4 ton Dana 44HD: 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
Bronco, F-100, F-150, F-250 4x4s with Dana 44IFS Front Axles with Manual Hub-Locks: 1983.5, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
F-250 Crew Cab Dana 60 Front Axles: 1973, 1974, 1975, 1976, 1977

IHC:
1100 Dana 44: 1971, 1972, 1973, 1974, 1975

Jeep J-Series:
J-Series Full-Size 4x4s: 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
