Description
QU30108 1992-2010 Rear Axle Shaft Flange Gasket for GM or AAM 10-1/2" 14 Bolt Full Floating Rear Axles is a genuine original equipment cut precision gasket that seals between your rear wheel hub and axle shaft flange on 1992-2010 GM 14 Bolt, 10-1/2" Ring Gear and 2001 and 2010 AAM/GM 11.5" Full Float Rear Axles in Chevy and GMC 2500 series 3/4 ton and 3500 series 1 ton trucks. USA Made. Order 2 gaskets per axle.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Single Use Part
Before Installation
1991-Prior Axles
Matching Parts
GM-AAM
Applications
Tech Note 1: Single Use Part
Axle Shaft Flange Gaskets are intended for a single use. To minimize the chance of oil leaks always replace axle shaft flange gaskets any time the axle shafts are removed.
Tech Note 2: Before Installation
Before installation, clean the axle shaft and hub mating surfaces. Do not use a sealant with this gasket except to fill in deep gouges in a mating surface.
Tech Note 3: 1991-Prior Axles
QU30108 Composition Axle Shaft Flange Gasket only fits 1992 and newer axles. If you have a 1991 or older GM 14 Bolt 10.5" full float rear axle, order QU30010 Steel Axle Shaft Flange Gasket.
Tech Note 4: Matching Parts
Matching Parts for QU30108 Axle Shaft Flange Gasket:
QU30109 Spindle Nut Retainer

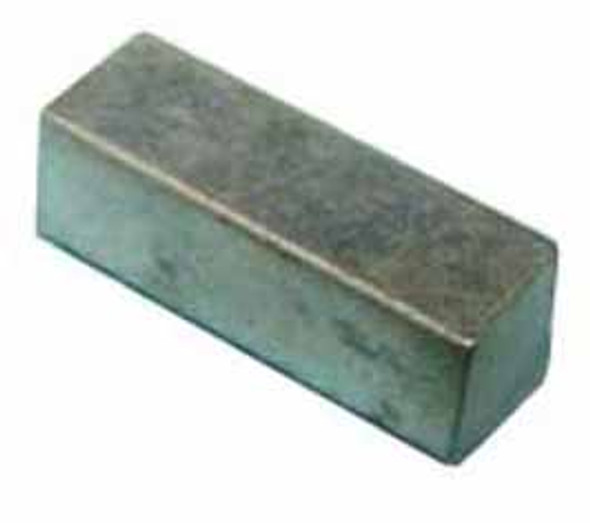

QU30110 Spindle Nut Key
QU30111 Spindle Nut
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
QT1025 Spindle Nut Wrench
Tech Note 5: GM-AAM
General Motors sold it's Final Drive and Forge (Axle and Driveshaft) unit in 1994 to a group of investors who named their new acquisition American Axle Manufacturing (AAM). The new company built then and largely builds today the same axles as previously made by GM. AAM currently builds almost all the IFS front axles and rear beam axles for GM SUVs and light trucks.
Applications:
Chevy and GMC:
Chevy Silverado and GMC Sierra 2500, 3500 trucks with 10.5" Full Float Rear Axles: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Chevy Silverado and GMC Sierra 2500, 3500 trucks with 11.5" Full Float Rear Axles: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
