Description

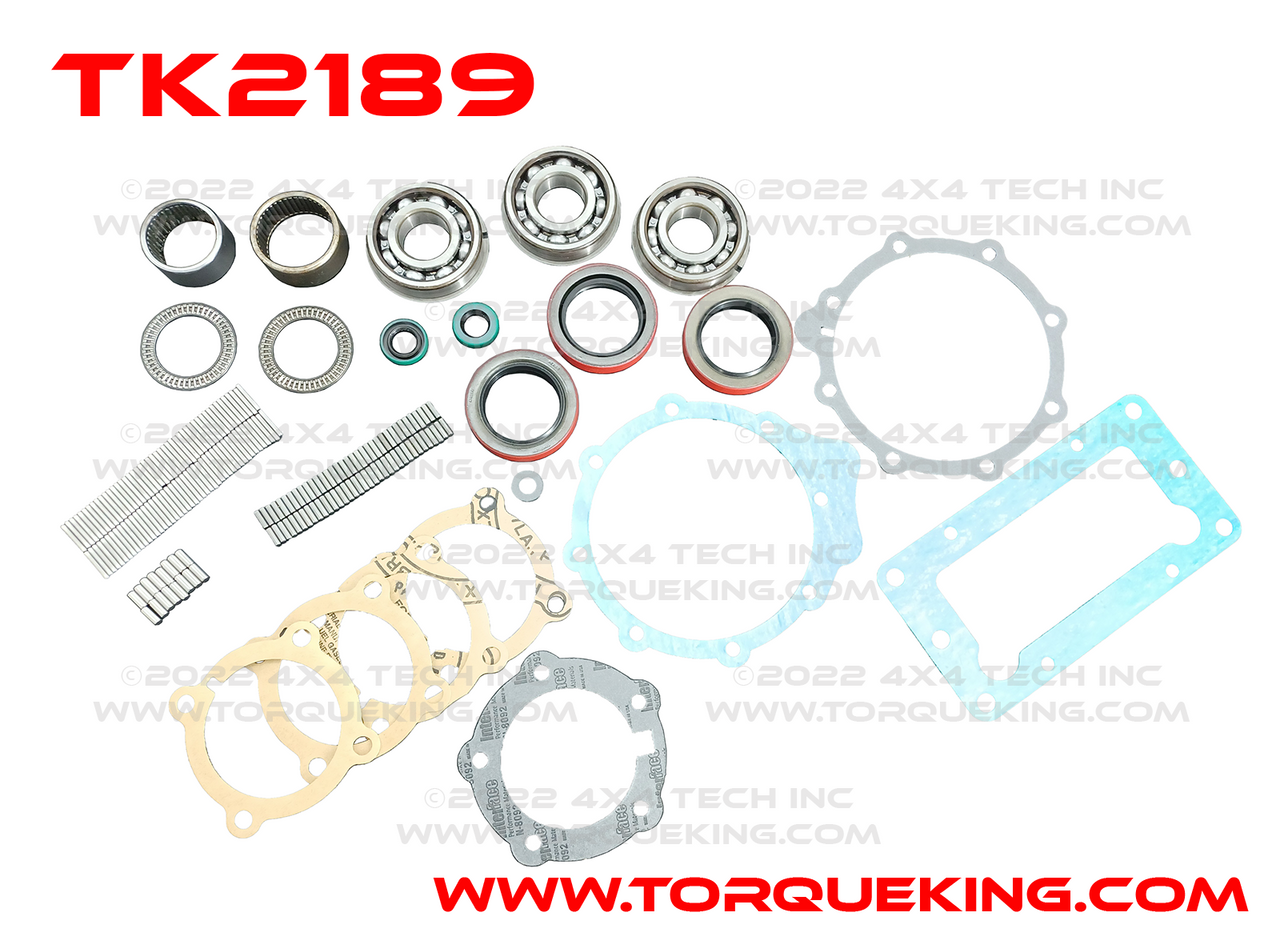

TK2189 Torque King Premium Bearing, Seal, Gasket Kit for 1959-1968 International TC141 New Process NP202 2 speed gear drive transfer cases. Kit includes All Bearings, Seals and Gaskets plus 2 Idler Shaft Inner Thrust Washers. International introduced the TC141/NP202 Transfer Case midway during the B Series Product Cycle (1959-1960). It was replaced by the NP205 transfer case after the 1968 model year.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Kit Components
Applications
Tech Note 1: Kit Components
TK10503 Rear Bearing Retainer 5 Bolt Gasket
TK10604 Rear Housing 8 Bolt Gasket
TK10680 Poppet Plug Gasket
3 TK50105 Output and Remote Input Ball Bearing
3 TK50123 Output Seal
4 QU50183 23 Roller Needle Bearing Kit
QU50184 70 Needle Roller Bearing Kit
QU50185 16 Rear Output Shaft Needle Rollers
2 QU50237 Shift Rail Seal
TK50356 Front Output Caged Needle Bearing
TK50357 Rear Output Shaft Needle Bearing
2 QU51186 Idler Shaft Thrust Bearing
TK52136 Upper Housing Gasket
TK52137 PTO 10 Bolt Gasket
2 TK52256 0.010" Front Bearing Retainer 4 Bolt Gasket
2 TK52257 1/64" Front Bearing Retainer 4 Bolt Gasket
Applications:
IHC:
TC141 NP202 Transfer Cases: 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968
Warranty
Product Reviews
-
Bearing and Gasket for NP202
Good quality bearing used in the kit. But the kit only included two bearing retainer gaskets for a transfer-case that has three bearing retainers. The other thing to note, the three bearing retainers need different thickness gaskets to set the proper end thrust of the shafts. Due to the fact the third bearing retainer gasket was missing along with the fact neither one was the correct thickness, I ended up locally sourcing the different thickness gasket material needed to properly set the end shaft end thrust need to complete my overhaul. The bearing retainer gaskets included in the kit ended up being the pattern to cut the new gasket. It would have been good kit if a assortment of different thickness bearing retainer gaskets were included in the kit along with the correct number of them. Note from Torque King: All Gaskets used in the International TC141/NP202 Transfer Case are included with this Kit. As a result of this review, we replaced the 2 TK10514 4 Bolt Bearing Retainer Gaskets with 2 Each of TK52256 (0.009-0.011") and TK52257 (0.0135-0.0165") Paper gaskets to conform to the original gasket configuration specified in IHC Parts Books.
