Description

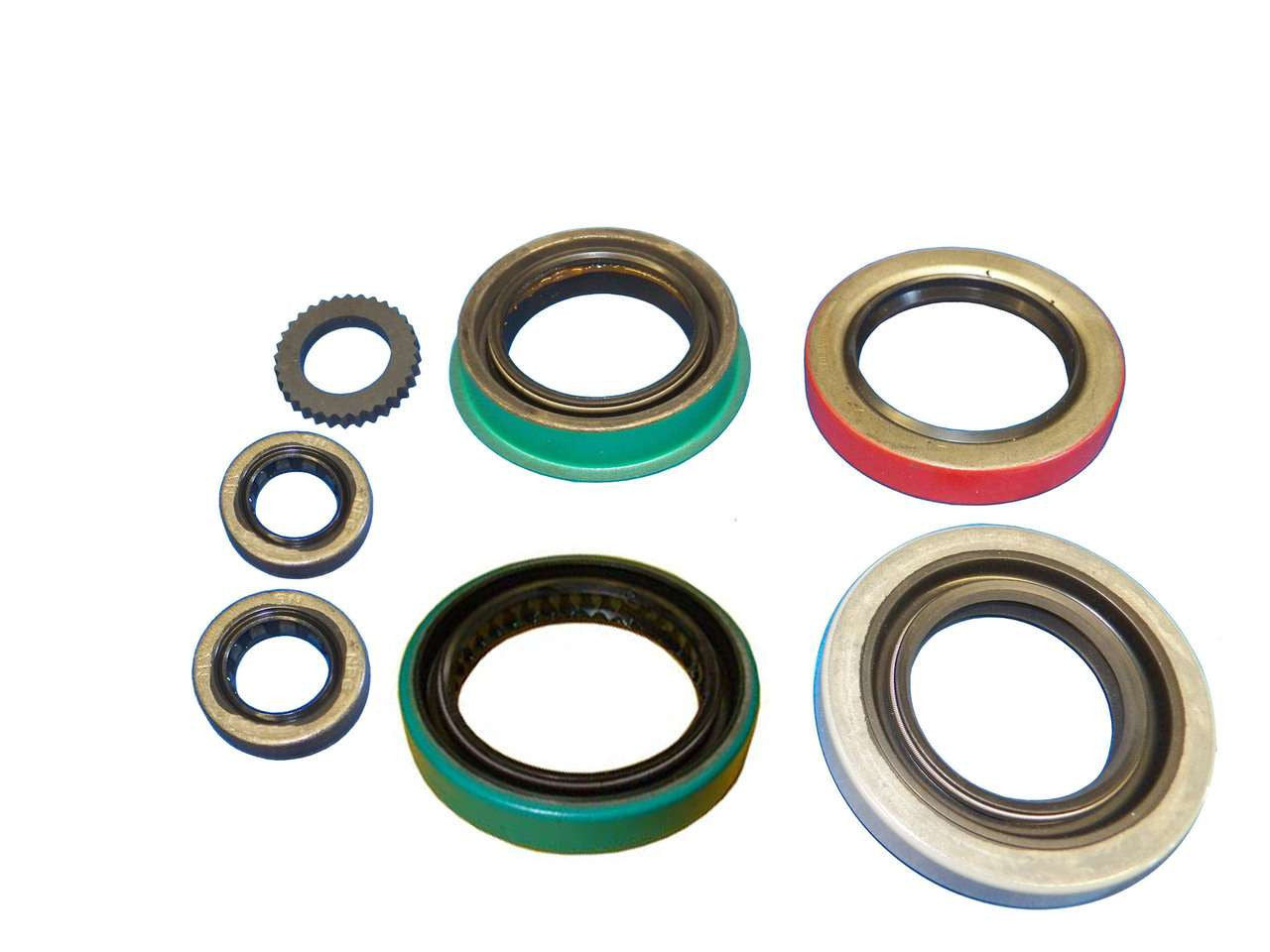

TKA2146 Torque King® Premium Seal Set for 1973-1991 GM NP205 transfer case with 32 spline input shaft.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
NP205 Seal Kits Chart
Applications
Tech Note 1: NP205 Seal Kits Chart
Itemized Parts List for NP205 Premium Seal Kits
| Component Name | Part Number | TKA2142 1989-1993 29 Spline |
TKA2143 1980-1993 23 Spline |
TKA2144 1969-1984 27 Spline |
TKA2145 1969-1984 10 Spline |
TKA2146 1973-1991 32 Spline |
TKA2147 1973-1979 31 Spline |
TKA2156 1969-1977 |
| Front Output Seal | TK10510 | 1 | 1 | – | – | – | – | – |
| Input Seal | TK10511 | – | 2 | – | – | – | – | – |
| Output Shaft and Remote Mount Input Shaft Seal | TK10513 | 2 | 2 | 1 | 1 | 1 | 2 | 3 |
| Input Seal | TK10517 | 1 | – | – | – | 1 | 1 | – |
| Input O-Ring | QU30075 | – | – | 1 | – | – | – | – |
| Rear Output or Remote Input Seal | TK50123 | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Input Seal | QU50167 | – | – | 2 | – | – | – | – |
| Input Seal | QU50209 | – | – | – | 2 | – | – | – |
| Rear Output Seal | TK50358 | – | – | 1 | 1 | 1 | – | – |
| Output Seal | QU50543 | – | – | – | – | – | 1 | – |
| Shift Rail Seal | TK50098 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Front Output Seal | TK80044 | – | – | 1 | 1 | 1 | – | – |
Applications:
GM New Process NP205 Transfer Cases with 32 Spline Input Shafts: 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
