QK2084 1330 Series Rear Output Yoke Kit with 32 Spline Yoke NP205

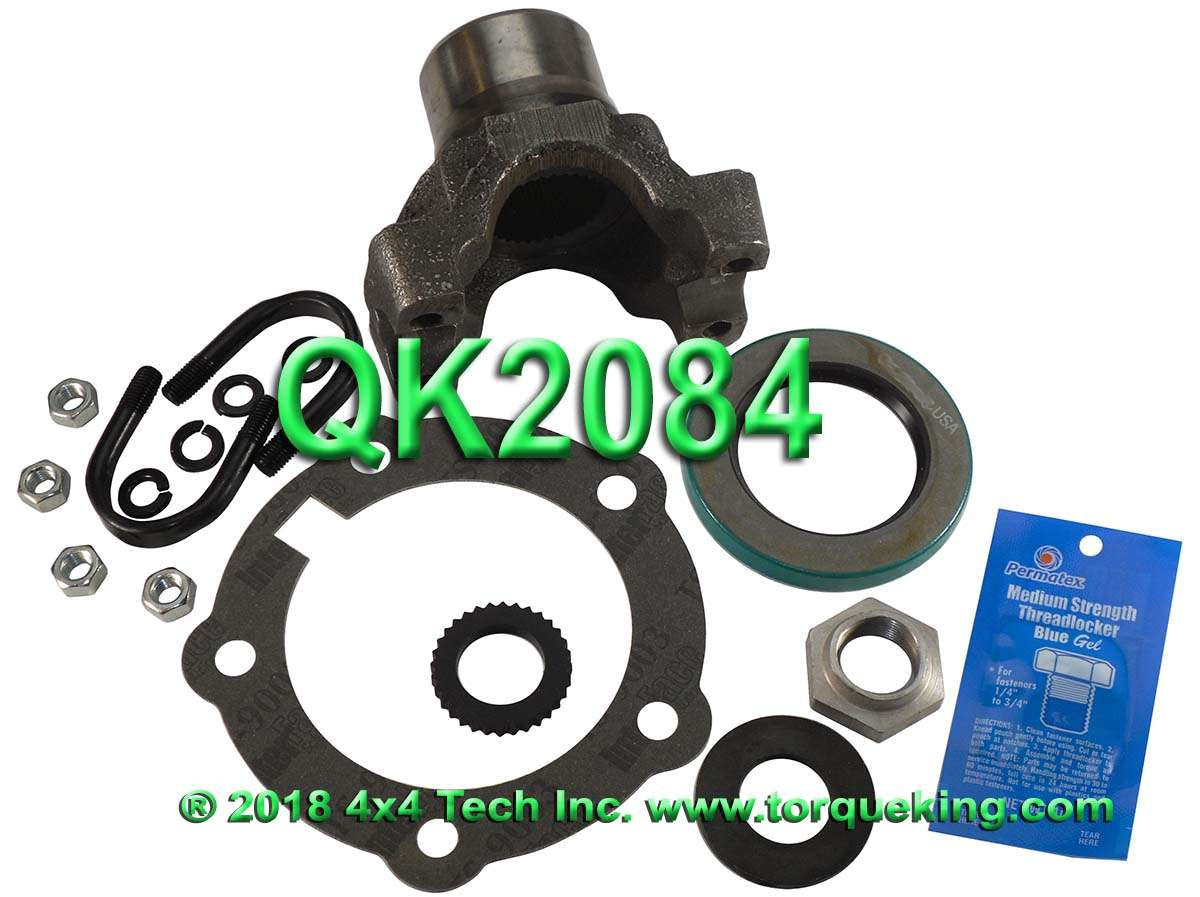

QK2084 1330 Series Rear Output Yoke Kit Includes QU40823 Yoke, QU40768 U-Bolt Kit, QU50380 Rear Seal, TK10513 Spline Seal, QK2036 Nut/Washer Set, TK10503 5 Bolt Gasket, and S9978 Threadlocker. The QU40823 Yoke is a Genuine Spicer Replacement Yoke for many 1970's Ford NP205 rear output applications. These Yokes may have some surface rust from long storage. QU40823 can be used to upgrade any Chevy, Dodge, Ford, GMC, or International NP205 Transfer Case with 32 spline remote input or front/rear output shafts having smaller series output yokes to couple with 1330 series universal joints.

Just Need the Yoke? See: QU40823

Also See: QU20258U Used Front and QU20259U Used Rear NP205 Yokes

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Matching Slinger
Matching U-Joints
Matching Parts
High Performance Rear Output Applications
Applications

Tech Note 1: Matching Slinger
To convert QU40823 rear output yoke to a Remote Input or Front Output Yoke, simply add QU20030 Front Yoke Slinger.

Tech Note 2: Matching U-Joints
QU40823 is made for external snap ring type universal joints made to Spicer 1330 series dimensional specifications. The u-joint cup diameter is 1-1/16". The overall width is 3-5/8". Matching universal joints are TK40721 or QU40774.

Tech Note 3: Matching Parts
Optional matching parts for QK2084 Yoke Kit are:
QU40768 Driveshaft U-Bolt Kit to secure the driveshaft universal joint
QU50380 2" ID Output Seal
TK10513 Rubber Spline Seal to seal oil from leaking past the inside splines
QK2036 Output Yoke Nut and Washer Set
TK10503 5 Bolt Gasket for Rear Output Bearing Flange
TK10514 4 Bolt Gasket for Front Output or Remote Input Bearing Flanges
S9978 Threadlocker
TM2000 NP205 Shop Manual
Chevy & GMC Shop Manuals
Dodge & Ram Shop Manuals
Ford Shop Manuals

Tech Note 4: High Performance Rear Output Applications
For high performance rear output applications, I recommend you replace your weak original NP205 32 spline rear output shaft with our TK50084 shaft. The redesigned, stronger part which was exclusively used in 1989-1993 Dodge Cummins Diesel Trucks with 5 speed manual transmissions.

Applications

Fits many 1970's NP205 Rear Output Applications
Can also be used to upgrade any Chevy, Dodge, Ford, GMC, or IHC NP205 Transfer Case with 32 Spline Remote Input or Front/Rear Output Shafts with Smaller Series Output Yokes to Couple with 1330 Series U-Joints

1330 U-Joint is specific to 1973-1979 Ford, but will fit:
All 1969-1993 Rear Output Shafts (except 1980-1991 GM Slip Yoke)
All 32 Spline 1969-1993 Dodge, 1973-1979 Ford, 1969-1975 IHC Front Output Shafts
All Remote Input Shafts 1969-1975 IHC, 1969-1974 Dodge, 1973-1977.5 Ford F250
