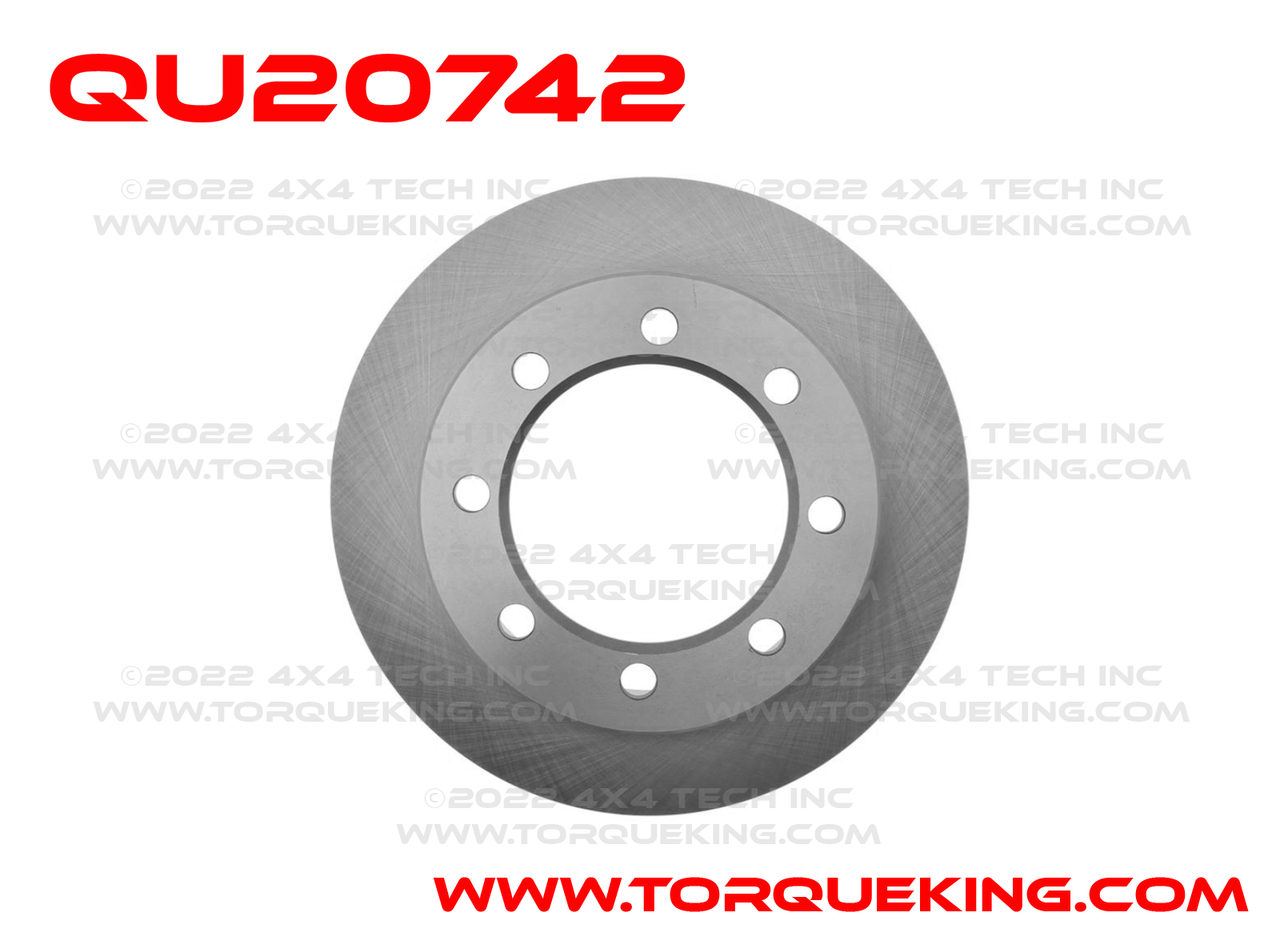

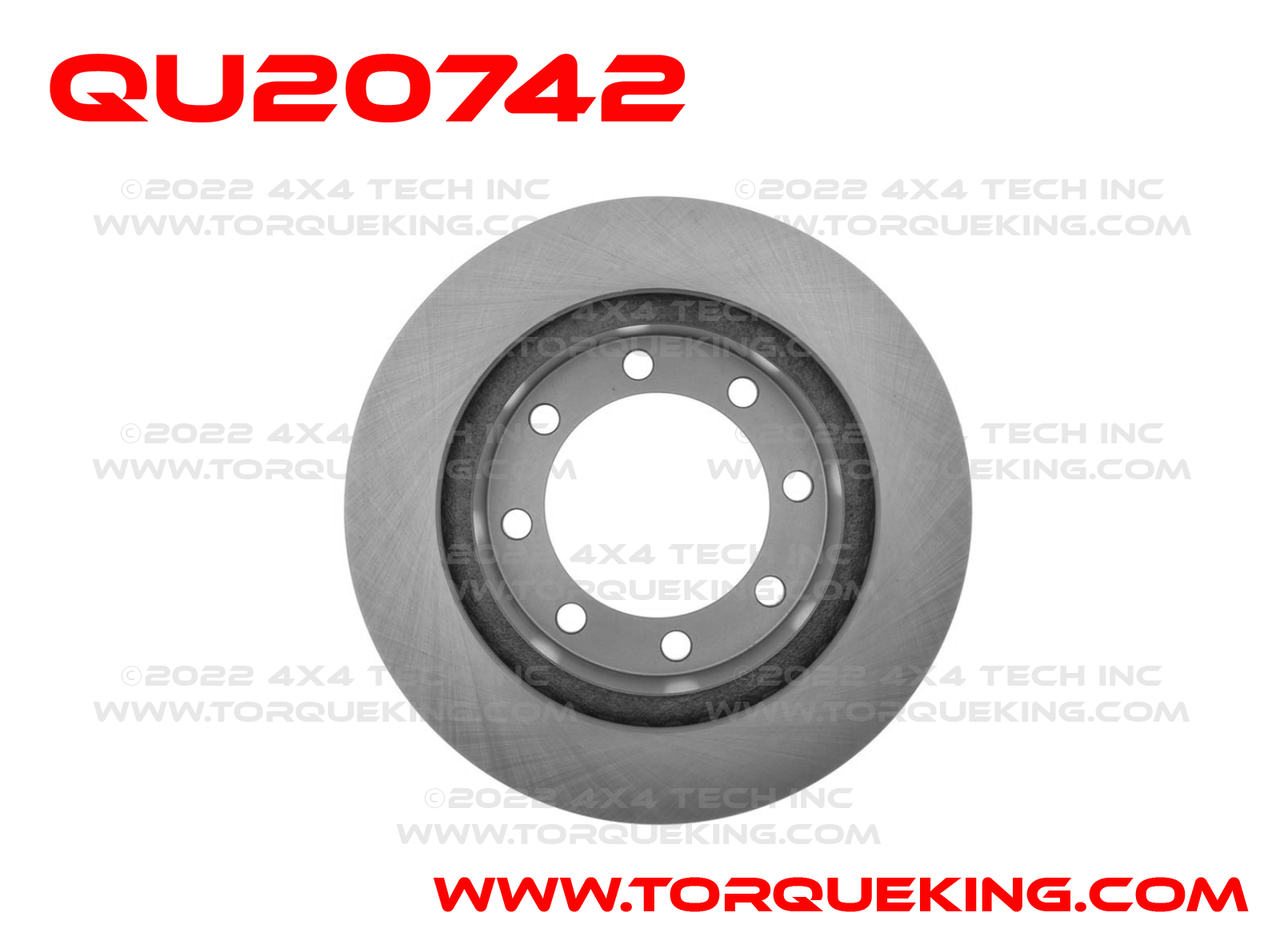

QU20742 1995-1997 DRW Ford F350 4x4 Front Disc Brake Rotor

QU20742 1995-1997 Ford F350 DRW 4x4 Front Disc Brake Rotor is a brand new quality replacement front disc brake rotor for 1995, 1996, 1997 F350 4x4 Trucks with Dual Rear Wheels. Precision non-directional finish on the braking surface and accurately machined holes. Imported

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Safety First
After Assembly
Matching Parts
Applications

Tech Note 1: Safety First
For safety reasons, never reuse wheel bolts (studs) or rotor to hub bolts. Nel bolts  are way cheaper than hospital or funeral bills.

Tech Note 2: After Assembly
It is relatively unusual for a big 4x4 brake rotor to have less than the maximum allowable runout and rotor thickness variation once it is assembled to a wheel hub. This is due to manufacturing tolerances of the parts and the pressures exerted on the hub and rotor when pressing in the wheel studs. After assembling your brake rotor to your wheel hub, the rotor should be checked for runout (0.005" {0.127 mm} maximum with 0.003" or less preferred). A rotor that is out of tolerance should be machined with an on-the-vehicle brake lathe if possible or on an accurate bench type brake lathe.

Tech Note 3: Matching Parts
Matching Parts for QU20742 1995-1997 F350 DRW Front Brake Rotor
Exploded View 1995, 1996, 1997 F350 Dana 60 Front Wheel Hub with hot links
QU20594 12 Point Rotor to Hub Bolt
QU20744 9/16" Hardened Wheel Stud
QU40119 Inner Wheel Seal
QU50396 Inner Wheel Bearing Cup (Installed in New Hub)
QU50398 Inner Wheel Bearing
QU50411 Outer Wheel Bearing Cup (Installed in New Hub)
QU50412 Outer Wheel Bearing
QU40420 Spindle for 1992-1997 F-350 Dana 60 Monobeam Axle
QK4729 Spindle Nut Kit for Manual Lockout Hub applications
QU20087 Spindle Nut and Hub Service Kit for Automatic Hubs
QU56011 Manual Hub Set
QT1018i and QT1110 Spindle Nut Sockets for Manual Hubs
QT1058i Rounded Hex Spindle Nut Socket for Auto Hubs

Applications:

Ford
F350 4x4 with Dual Rear Wheels: 1995, 1996, 1997
