Description

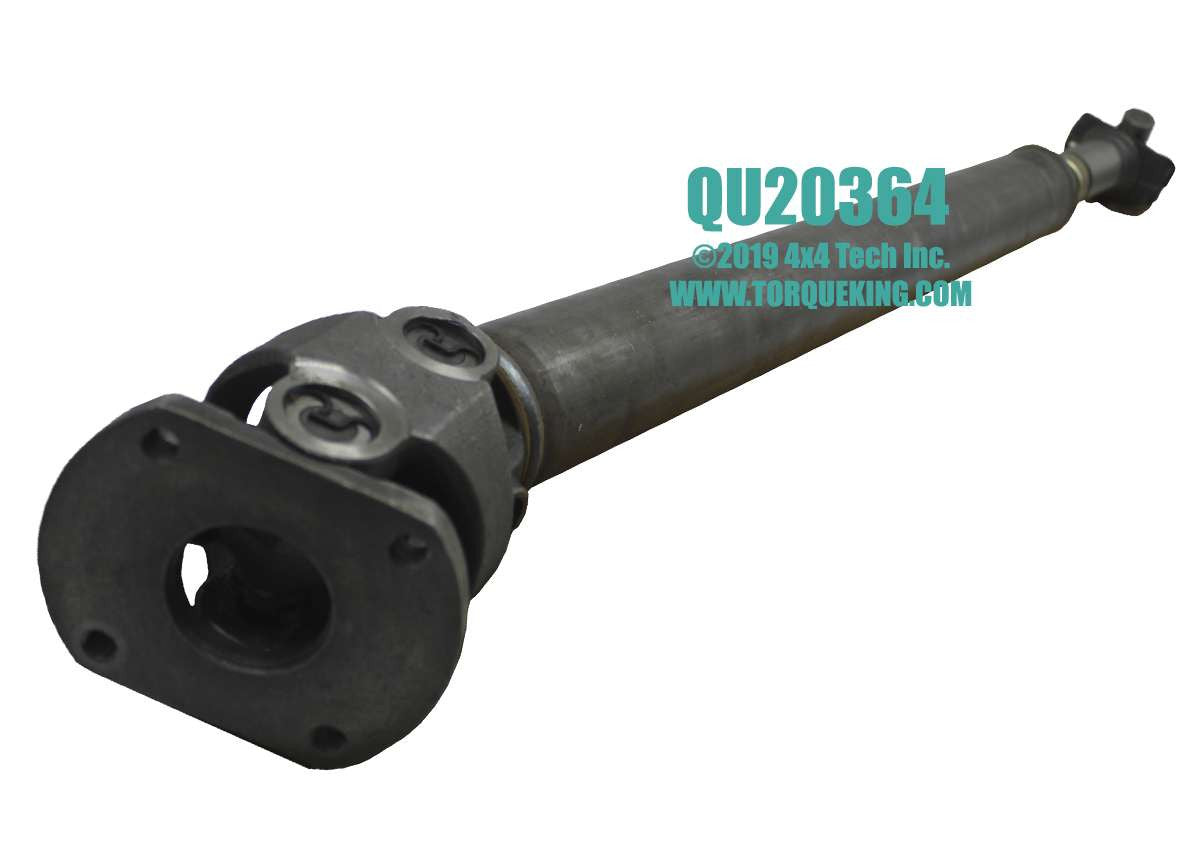

QU20364 Brand New Front Driveshaft with Greaseable Universal Joints and Slip Joint for Super Duty and Excursion fits 2003-2005 Ford Excursion with 6.0L Diesel and Dana 50 front axle PLUS 2002-2003 F250 AND 1999-2004 F350, F450, F550 4x4s with Dana 60 Front Axles, 7.3L Diesel Engines and either 4R100 4 Speed Automatic or ZF6-650 6 Speed Manual Transmissions. QU20364 has greaseable 1350 series universal joints and a greaseable slip yoke. Assembled, trued, and precision balanced in USA using both domestic and imported parts.
Installed running length for this shaft would be roughly 42" from the face of the transfer case output flange to the center of the u-joint cup in the front axle pinion yoke.
Also See: QU20141 New OEM Type Front CV Driveshaft
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Product Note
Applications
Tech Note 1: Product Note
This new shaft may look different than older model original equipment front CV shafts, but as long as the length is correct it will bolt to your transfer case and front axle. QU20364 CV Shaft will replace original equipment Ford CV front driveshafts with either Type A or Type B Slip Joints and with either Saginaw or Spicer type CV.
Applications:
Ford:
Excursion with 6.0L Diesel and Automatic Transmission: 2003, 2004, 2005
F350 Super Duty Dual Rear Wheel with 7.3L Diesel and either 4R100 Automatic Transmission or ZF6-650 Manual Transmission: 1999, 2000, 2001, 2002, 2003
F350 Super Duty Single Rear Wheel with Dana 60 Front Axle, 7.3L Diesel and either 4R100 Automatic Transmission or ZF6-650 Manual Transmission: 2000, 2001, 2002, 2003
F250 Super Duty with Dana 60 Front Axle, 7.3L Diesel and either 4R100 Automatic Transmission or ZF6-650 Manual Transmission: 2002, 2003
F450, F550 with 7.3L Diesel and either an Automatic Transmission or ZF6-650 Manual Transmission: 1999, 2000, 2001, 2002, 2003
