Description

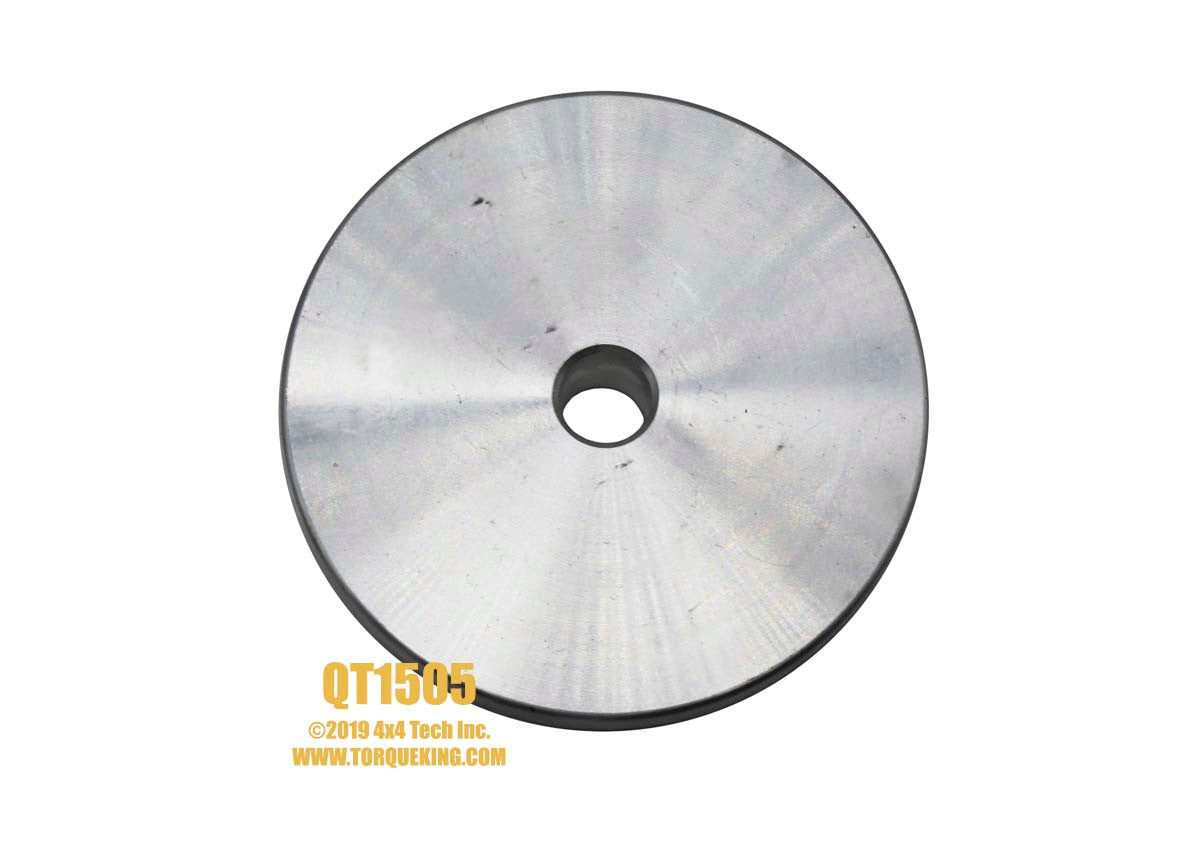

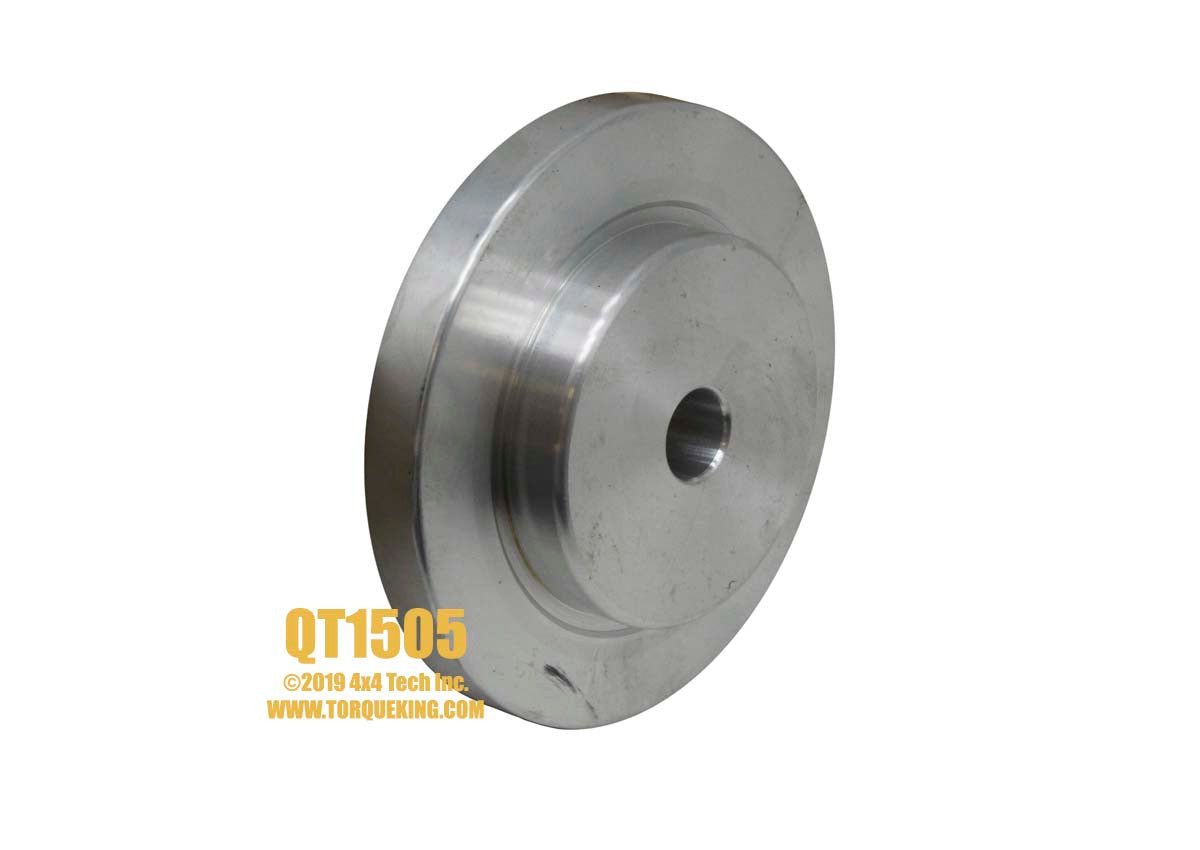

QT1505 1980-1997 Dana 50, 1969-1997 4x4 Front Wheel Seal Installer, and 1959-1970 Jeep Dana 70 Rear Wheel Seal Installer is specifically made to quickly and safely install QU40119 Wheel Seals in the back of your heavy duty 4x4's front hub or vintage trucks rear hub. Simply place your Seal on the Tool's pilot, attach a QT1100 series driver handle and drive the seal into place. The Installer will stop when the seal is square to the bore and seated to the correct depth. A relief groove in the installer allow adequate clearance for the outer seal lip, thereby preventing one of the most common causes of premature seal failure. Aluminum Installer is Made in U.S.A. by us here in Roberts, Montana.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
After Installing
1977-1991 Chevy/GMC K3 Series Dana 60 4x4 Front Axle
1975-1993 Dodge W250HD, W350 Dana 60, Dana 61 4x4 Front Axle
1980-1997 Ford F250 and 1980-1985.5 Ford F350 Dana 50IFS Front Axle
1978-1979 Ford F250, F350 Dana 60 and 1985-1997 F350 Dana 60 Front Axles
Applications
Tech Note 1: After Installing
After the seal is installed, lubricate the seal lips with clean wheel bearing grease.
Tech Note 2: 1977-1991 Chevy/GMC K3 Series Dana 60 4x4 Front Axle
Matching parts for QT1505 Front Wheel Seal Installer in 1977-1991 Dana 60 Front Axles in Chevy or GMC 1 ton K30, K35, K3500, V3500, CUCV 4x4s.
Exploded View XV1006 1977-1991 Chevy & GMC Dana 60 Front Axle
QU40119 Wheel Seal
QU50396 Inner Wheel Bearing Cup
QU50398 Inner Wheel Bearing
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
TK4744 Front Wheel Bearing and Seal Kit
TK4738 Master Front Wheel Bearing and Seal Kit with Tools
TKA4962 New Front Wheel Hub for 1977-1991 GM SRW
QU40293 New Premium OEM Spindle
Y440293 Replacement Spindle
QK4728 6 Slot Spindle Nut Set for 1977-1981
QK4729 4 Slot Spindle Nut Set for 1982-1991
QU90018 Pyroplex Synthetic Grease
QT5500 Wheel Bearing Packer
QT1110i 4 Lug Spindle Nut Socket
QT1025 6 Lug Spindle Nut Socket
Chevy & GMC Shop Manuals
Tech Note 3: 1975-1993 Dodge W250HD, W350 Dana 60, Dana 61 4x4 Front Axle
Matching parts for QT1505 Front Wheel Seal Installer in 1975-1993 Dodge Dana 60 or Dana 61 4x4 Front Axles in W250 (Diesel or Snowplow Package) and W350 (All except mid-1980s Light-Duty) 4x4 Trucks
Exploded View XV1001 1975-1989 Dodge W250, W350 Dana 60/61 Front Axle
Exploded View XV1004 1990-1993 Dodge W250, W350 Dana 60/61 Front Axle
QU40119 Wheel Seal
QU50396 Inner Wheel Bearing Cup
QU50398 Inner Wheel Bearing
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
QU50216 8 Bolt Hub Gasket 1975-1990
TK4744 Front Wheel Bearing and Seal Kit
TK4738 Master Front Wheel Bearing and Seal Kit with Tools
TKA4962 New Front Wheel Hub for 1990.5-1993 Dodge SRW
QU40293 New Premium OEM Spindle
Y440293 Replacement Spindle
QK4729 4-Slot Spindle Nut Set 1991-1993
QK4730 2-1/2" Hex Spindle Nut Set 1975-1991
QU90018 Pyroplex Synthetic Grease
QT5500 Wheel Bearing Packer
QT1110i and QT1018i 4 Lug Spindle Nut Sockets for 1991-1993
QT1013i 2-1/2" Hex Spindle Nut Socket for QK4730
QT1218 2-9/16" Hex Spindle Nut Socket For Stock Nut 1975-1991
Tech Note 4: 1980-1997 Ford F250 and 1980-1985.5 Ford F350 Dana 50IFS Front Axle
Matching parts for QT1505 Front Wheel Seal Installer in 1980-1997 Ford F250 and 1980-1985 Ford F350 Dana 50IFS Front Axles.
Exploded View XV1009 1980-1983.5 Ford Dana 50IFS Front Axle
Exploded View XV1014 1983.5-1994 Ford Dana 50IFS Front Axle
Exploded View XV1010 1995-1997 Ford Dana 50IFS Front Axle
QU40119 Wheel Seal
QU50396 Inner Wheel Bearing Cup
QU50398 Inner Wheel Bearing
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
TK4744 Front Wheel Bearing and Seal Kit
TK4738 Master Front Wheel Bearing and Seal Kit with Tools
TKA20332 New Front Wheel Hub for 1978-1994 Ford SRW
TKA4923 New Front Wheel Hub for 1995-1997 Ford SRW
TK20227 New Premium USA Made Hardened Spindle for 1980-1997 Ford Dana 50IFS
QK4728 6 Slot Spindle Nut Set for 1980-1984
QK4729 4 Slot Spindle Nut Set 1985-1997 Except Auto Hubs with 3 Bolt Caps
QU20200 Rounded Hex Spindle Nut for 1995-1997 with 3 Bolt Cap Type Auto Hubs
QU20201 Spindle Nut Lock for 1995-1997 Ford with Auto Hubs
QU90018 Pyroplex Synthetic Grease
QT5500 Wheel Bearing Packer
QT1110i or QT1018i 4 Lug Spindle Nut Sockets
QT1025 6 Lug Spindle Nut Socket
QT1058i Rounded Hex Spindle Nut Socket For 1995-1997 Ford with Auto Hubs
Ford Shop Manuals
Tech Note 5: 1978-1979 Ford F250, F350 Dana 60 and 1985-1997 F350 Dana 60 Front Axles
Matching parts for QT1505 Front Wheel Seal Installer in 1978-1979 Ford F250, 1979 F350 and 1985-1997 F350 Dana 60 Front Axles
Exploded View XV1015 1985-1991 Ford F350 Dana 60 Front Axle
Exploded View XV1013 1992-1994 Ford F350 Dana 60 Front Axle
Exploded View XV1011 1995-1997 Ford F350 Dana 60 Front Axle
QU40119 Wheel Seal
QU50396 Inner Wheel Bearing Cup
QU50398 Inner Wheel Bearing
QU50411 Outer Wheel Bearing Cup
QU50412 Outer Wheel Bearing
TK4744 Front Wheel Bearing and Seal Kit
TK4738 Master Front Wheel Bearing and Seal Kit with Tools
TKA20332 New Front Wheel Hub for 1978-1979 and 1985-1994 Ford SRW
TKA4923 New Front Wheel Hub for 1995-1997 SRW
QU40169 New Premium OEM Spindle for 1978, 1979, 1985-1991
Y440169 Replacement Spindle for 1978, 1979, 1985-1991
QU40420 New Premium OEM Spindle for 1992-1997
Y440169 Replacement Spindle for 1992-1997
QK4728 6 Slot Spindle Nut Set for 1978-1979
QK4729 4 Slot Spindle Nut Set 1985-1997 EXCEPT 1995-1997 with 3 Bolt Cap Auto Hub
QU20200 Rounded Hex Spindle Nut for 1995-1997 Ford with 3 Bolt Cap Auto Hubs
QU20201 Spindle Nut Lock for 1995-1997 Ford with 3 Bolt Cap Auto Hubs
QU90018 Pyroplex Synthetic Grease
QT5500 Wheel Bearing Packer
QT1110i or QT1018i 4 Lug Spindle Nut Sockets 1985-1997 EXCEPT 1995-1997 with 3 Bolt Cap Auto Hub
QT1025 6 Lug Spindle Nut Socket 1978-1979
QT1058i Rounded Hex Spindle Nut Socket For 1995-1997 Ford with Auto Hubs
Ford Shop Manuals
Front 4x4 Hub Applications:
Chevrolet Dana 60:
K30, K3500: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
K3500/V3500 1 Ton (square cab models): 1988, 1989, 1990, 1991
Dodge Dana 60, 61:
W-350 1 Ton*: 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
W-250 all with Cummins Diesel: 1989, 1990, 1991, 1992, 1993
Ford Dana 50IFS:
F-250 with 4600 pound front axle: 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992,1995,1996,1997
F-350: 1980, 1981, 982, 1983, 1984, 1985-1/2
Ford Dana 60:
Heavy-Duty F-250, F-350: 1978, 1979
F-350: 1985.5, 1986, 1987, 1988, 1989, 1990, 1991
GMC Dana 60:
K35, K3500: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
K3500/V3500 1 Ton (square cab models): 1988, 1989, 1990, 1991
*Some mid 1980's, Dodge Single Rear Wheel W350 models had a Model 44!!!
International
1300D, 1310 200 1 Ton 4x4 Dana 70 Front Axle: 1969, 1970, 1971, 1972, 1973, 1974, 1975
Rear Wheel Hub Applications:
Jeep Dana 70
FC-170 with Dual Rear Wheels: 1959, 1960, 1961, 1962, 1963, 1964, 1965
J- Series with Dual Rear Wheels: 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970
