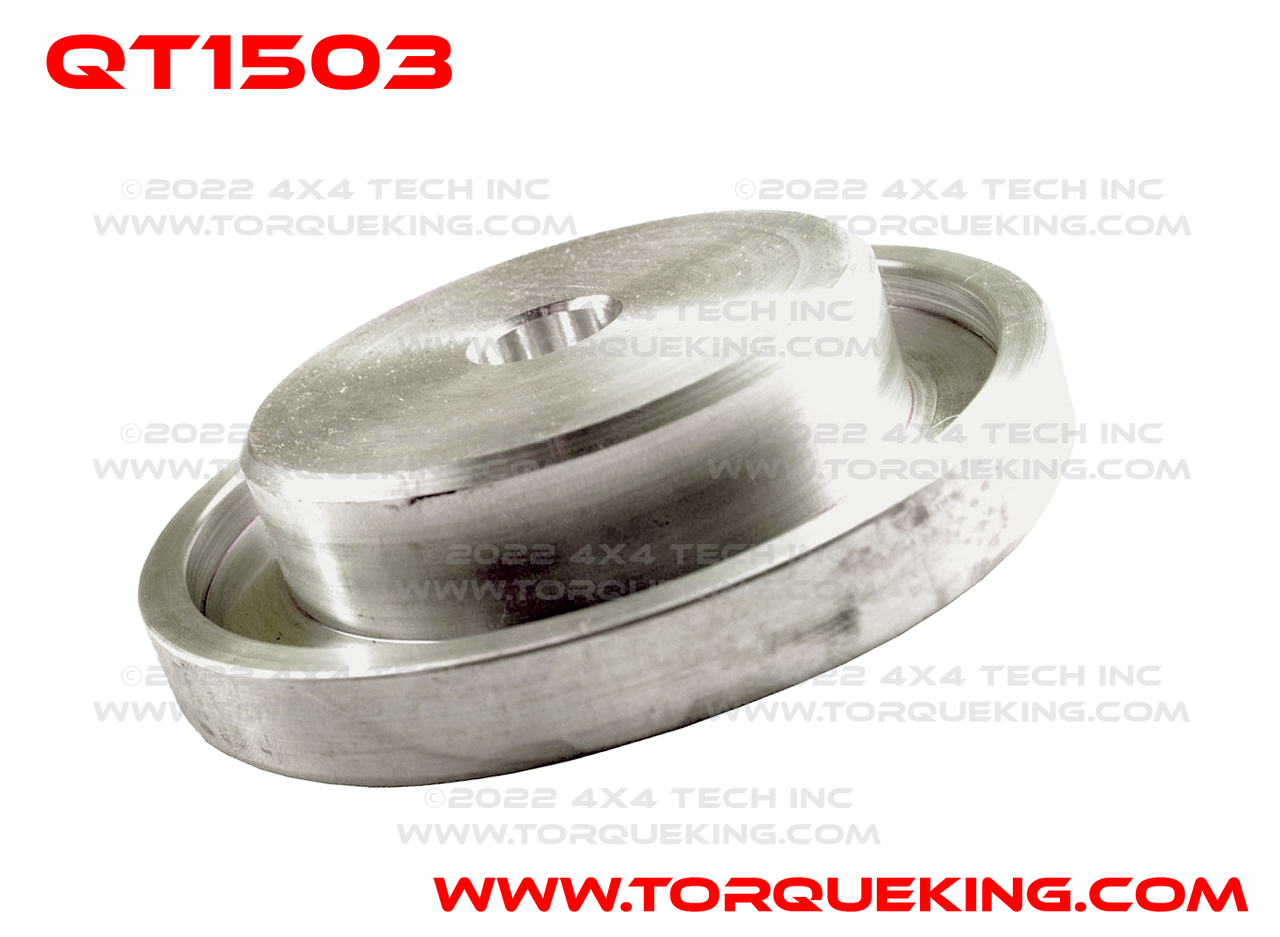

QT1503 Rear Wheel Seal Installer for Ford and Dodge Dana 70/80

QT1503 Dana 70 and Dana 80 Rear Wheel Seal Installer for Ford and Dodge is specifically made to install QU40449 and similar flanged inner wheel seals in 1970's to current Ford F-350 trucks and 1994 to 2002 Dodge 3/4 ton Ram 2500 and 1 ton Ram 3500 trucks with Dana 70 or Dana 80 rear axles and single rear wheels. The Installer is made to clear the raised outer shell on all popular wheel seals for these vehicles. A relief groove in the installer allows adequate clearance for the outer seal lip, thereby preventing one of the most common causes of premature seal failure. Aluminum Installer is Made in U.S.A. by us here in Roberts, Montana.

Exploded View XV2011 2000-2002 Dodge Ram 2500, Ram 3500 Dana 80 Rear Axle

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
After Seal Installation
Drive Handles
Matching Parts
Applications

Tech Note 1: After Seal Installation
After the seal is installed, lubricate the seal lip with clean wheel bearing grease.

Tech Note 2: Driver Handles
QT1503 has a 5/8" center hole for attaching Installer to QT1100, QT1101, QT1116, or QT1119 Driver Handles.

Tech Note 3: Matching Parts
Matching Parts for QT1503 in 1972-2002 Dodge and Ram Dana SRW Rear Axle Applications:
QU50414 Inner Wheel Bearing
QU50413 Inner Wheel Bearing Cup
QU50412 Outer Wheel Bearing
QU40450 Rear Wheel Seal
QU40449 Optional Flanged Rear Wheel Seal for 1994-2002
QU40078 Steel Axle Shaft Flange Gasket
QU15002 Spindle Lock Washer for 1972-1979.5
QU40077 Spindle Lock Nut for 1979.5-1993
QU40089 Spindle Nut Lock Wedge for 1979.5-1993
QU40118 Spindle Lock Nut for 1994-2002
QU40115 Spindle Nut Lock Wedge for 1994-2002
QU40577 Tapered Locking Bushing Cone for Axle Shaft Drive Studs
QU90018 Pyroplex Synthethic Grease
QU40367 Dana 70 Differential Cover Gasket
QU42030 Dana 70 Reuseable Differential Cover Gasket
QT1500 Wheel Seal Installer for QU40450 Seal 1979-1993
QT1510 Rear Wheel Seal Installer for QU40450 Seal 1994-2002
QU50411 Wheel Bearing Cup
QT1009i Spindle Nut Socket for 1979.5-2002
QT5500 Wheel Bearing Packer

Applications

Dodge:
Ram 2500 and Ram 3500 with Dana 70 or Dana 80 SRW Rear Axles: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002

Ford:
F-350 Dana 80 DRW Rear Axles: 1999, 2000, 2001, 2002, 2003, 2004; 2006.5, 2007, 2008, 2009, 2010
