Description

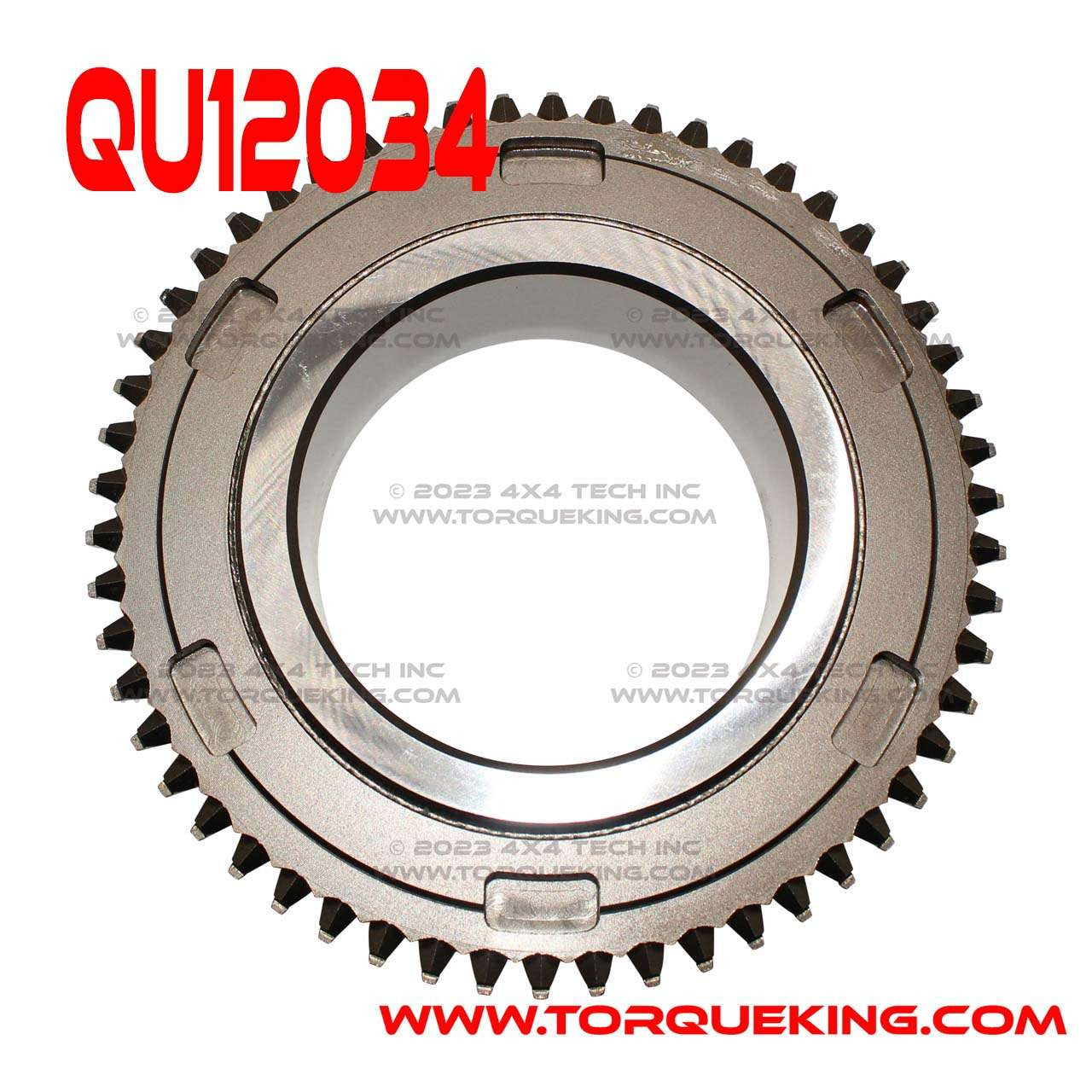

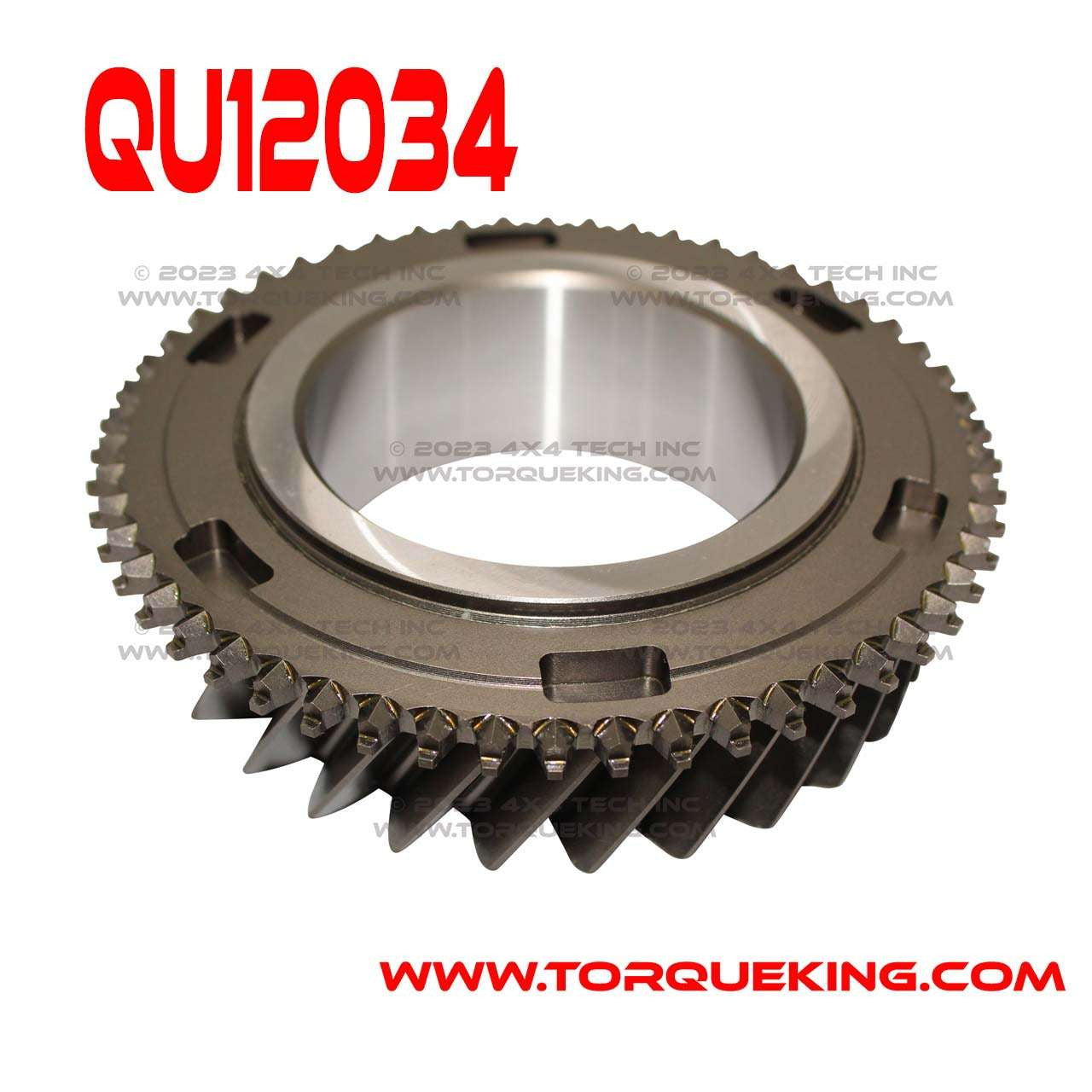

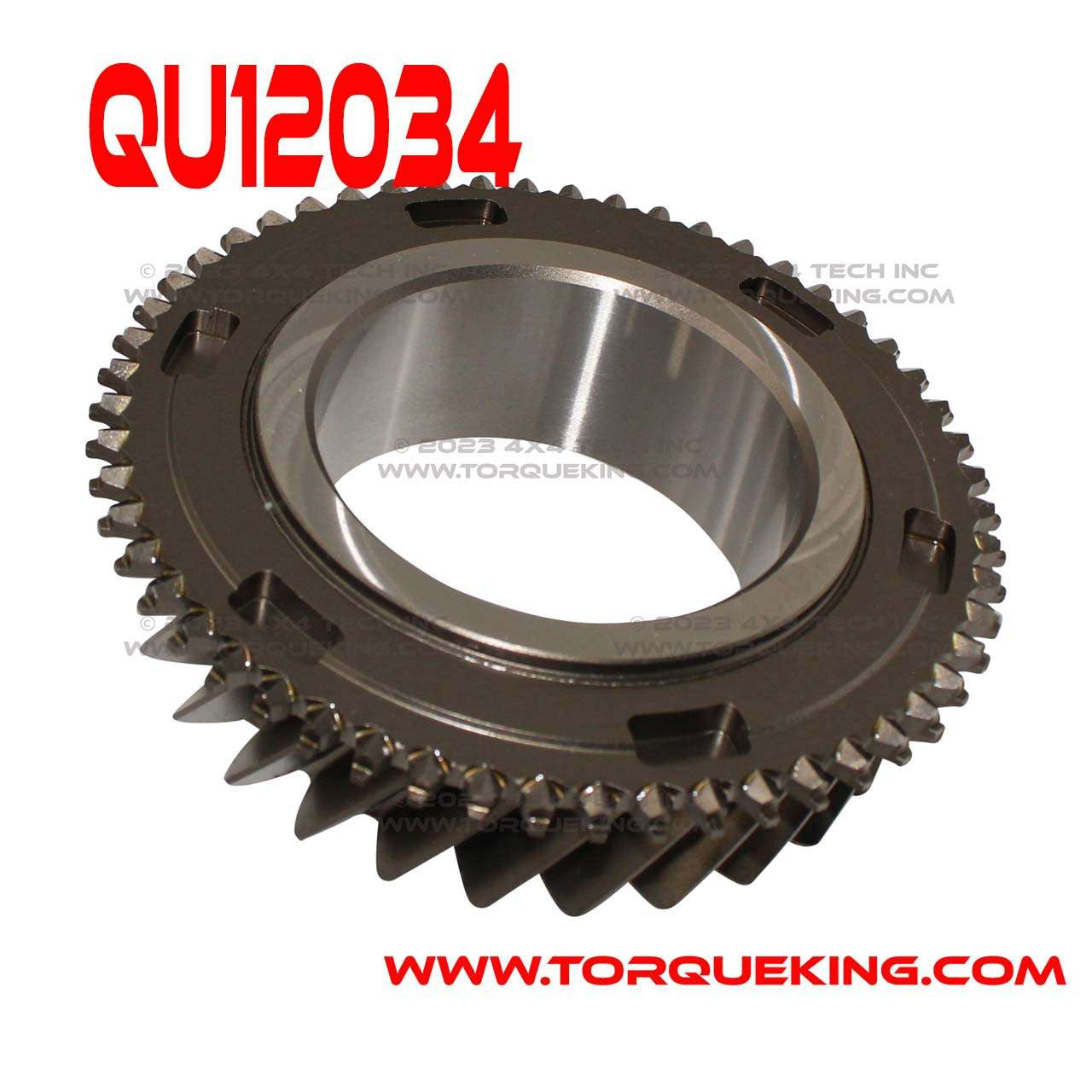

QU12034 Countershaft 3rd Gear for 2001.5-2005 NV5600 Transmissions 28 teeth. Imported. This gear can be used on 1999-2001.5 transmissions if synchronizer ring is also replaced.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
1999-2001.5
Applications
Tech Note 1: 1999-2001.5
1999-2000, plus some early 2001 NV5600 transmissions used a unique synchronizer ring that was discontinued long before New Venture went belly up. To the best of my knowledge, no one currently makes rings for those early transmissions. What you need to do is replace the matching gear with a late model gear and purchase a late model ring for that gear. For instance, if your 5th and 6th synchros are out, you need to get a new style QU12001 Main Drive Gear (Input Shaft), QU12013 Mainshaft 6th gear, and 2 QU10408 Synchro Rings.
Applications:
Dodge:
Dodge Ram 2500 or Ram 3500 with New Venture NV5600 6 Speed Manual Transmission: 2001, 2002, 2003, 2004, 2005
Dodge Ram 2500 or Ram 3500 with New Venture NV5600 6 Speed Manual Transmissions if Synchronizer Ring is also Replaced (See Tech Note): 1999, 2000, 2001, 2001.5
