Description

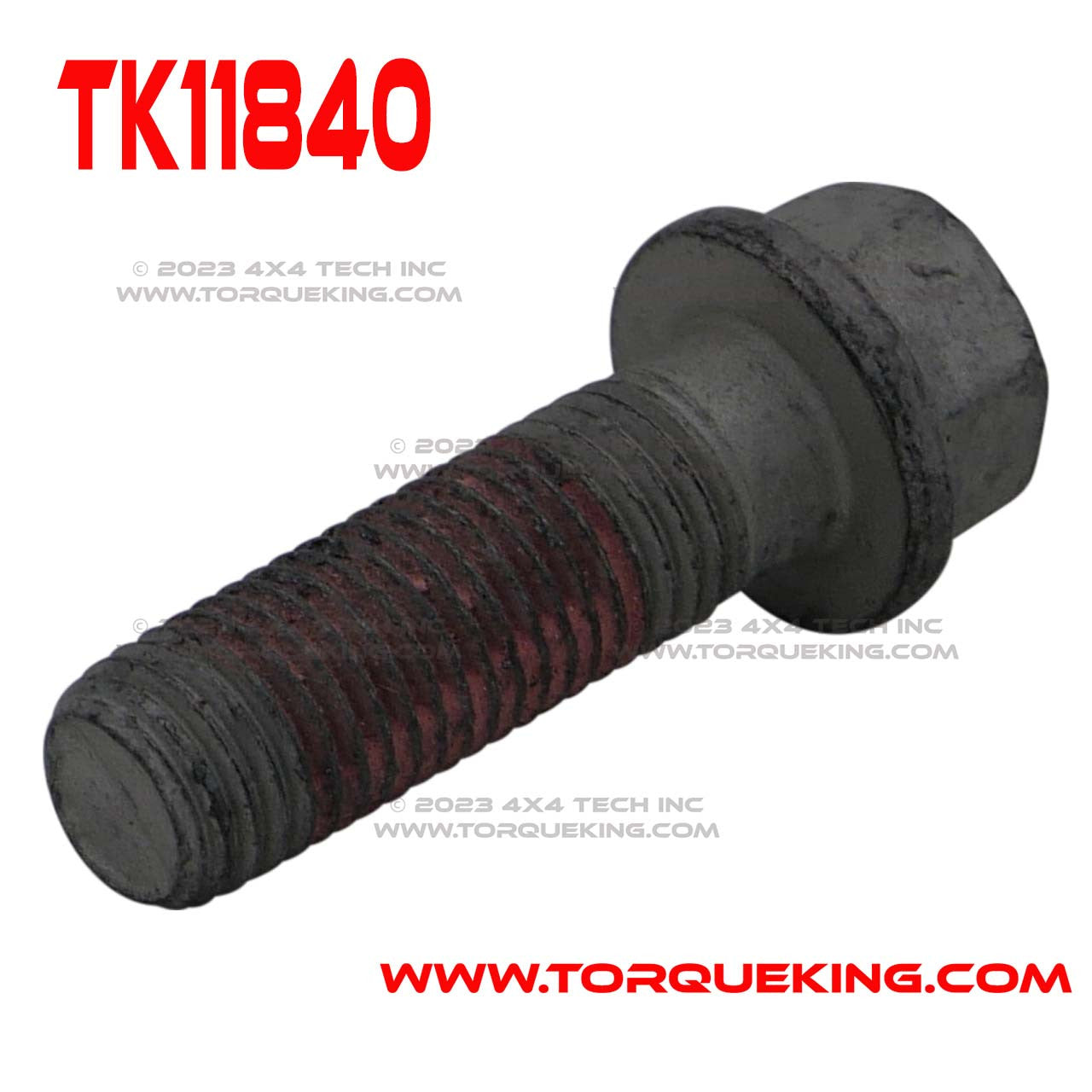

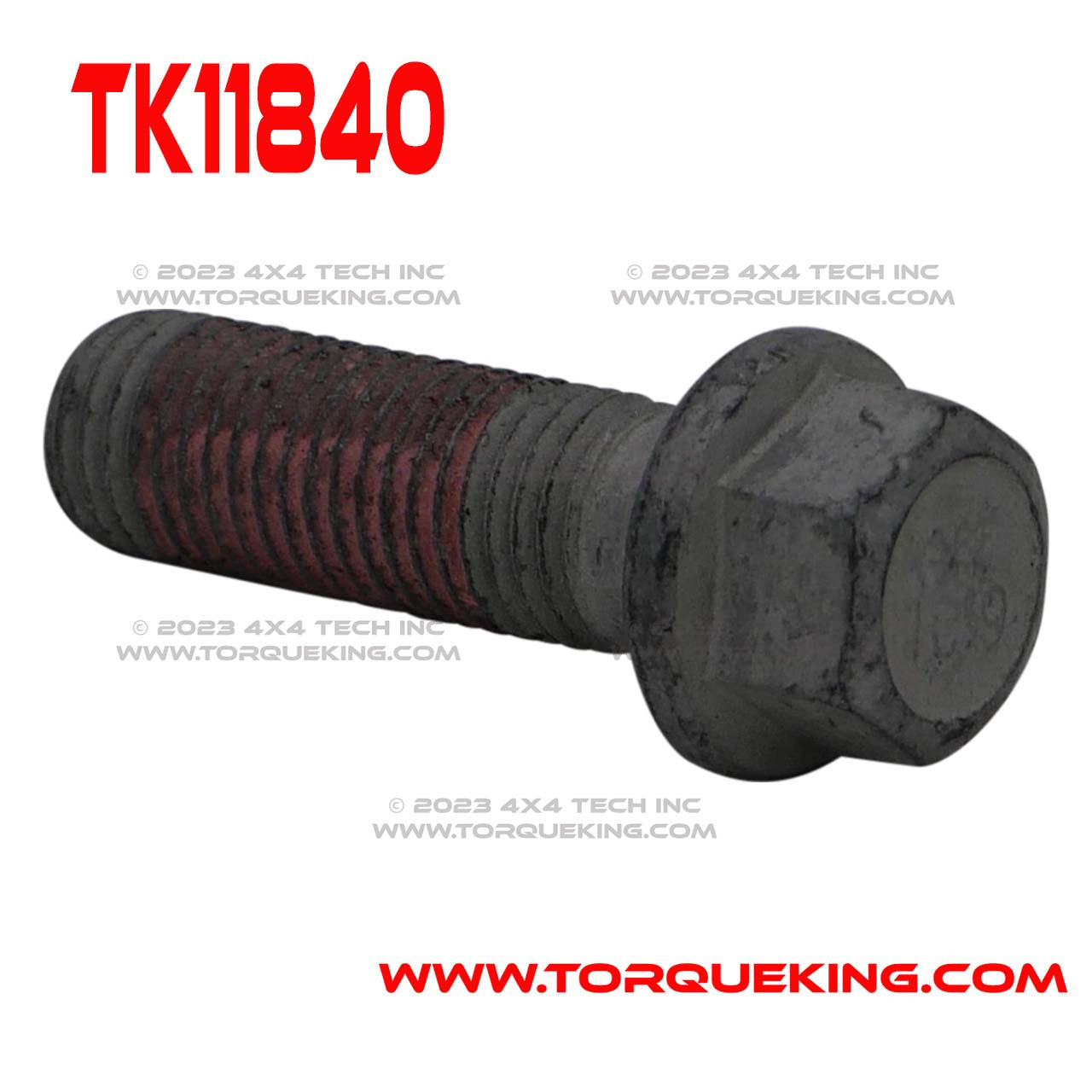

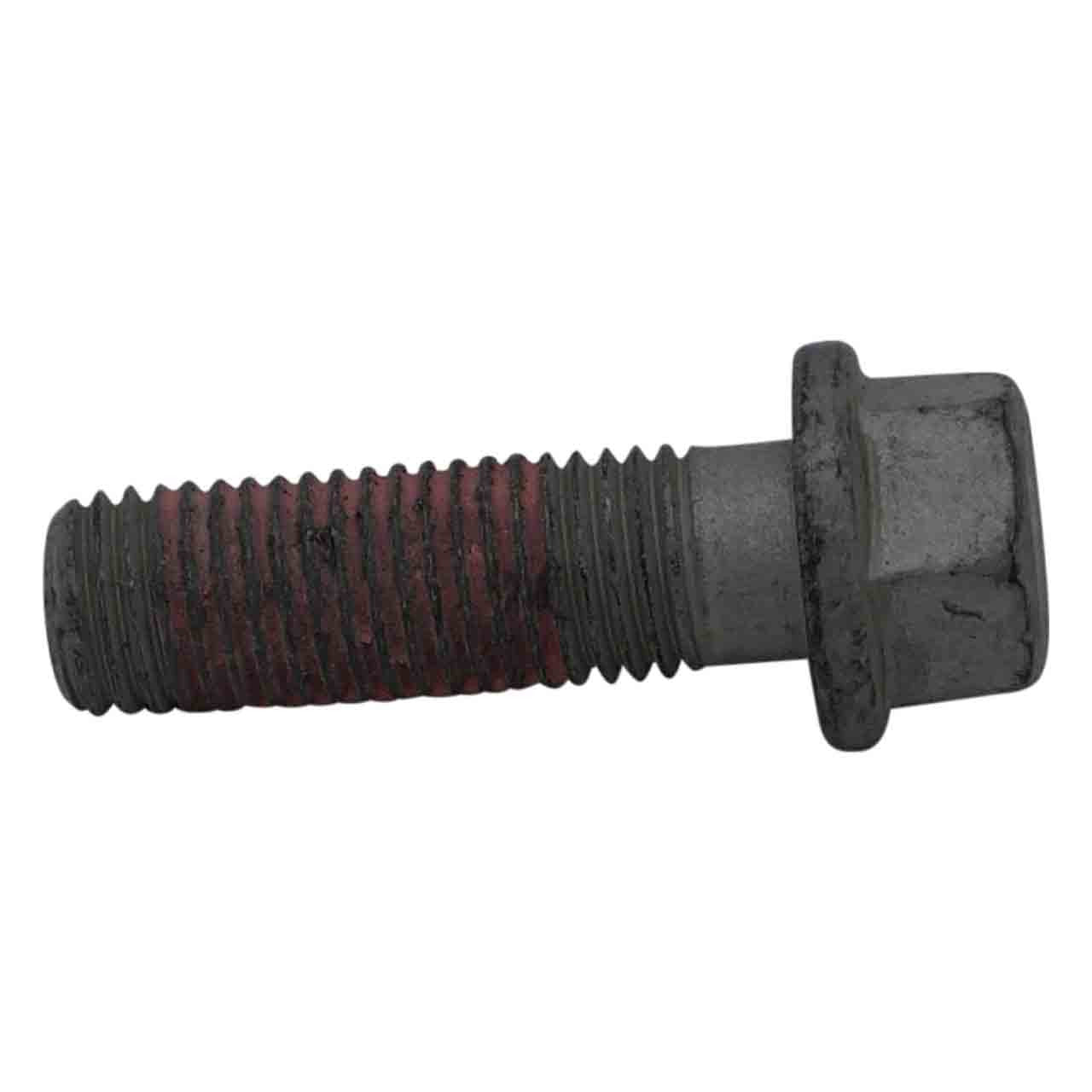

TK11840 Rear Axle Shaft Flange Bolt for 2019-2022 Ram 3500 Pickup High Output, Ram 4500, Ram 5500 with AAM 12" Rear Axles is a genuine original equipment American Axle Manufacturing replacement Axle Shaft Flange to Rear Wheel Hub Bolt with factory applied threadlocker. TK11840 fits all 2019-2022 Ram 3500 Pickup trucks with High Output Cummins Diesel engines and American Axle 12" 14 bolt rear axles. Also fits 2019-2022 Ram 4500 and Ram 5500 trucks with American Axle 12" 14 bolt rear axles. Sold individually. For 3500 High Output, uses 8 each side on 2019-2020 or 12 each side on 2021-2022. For 4500 and 5500, uses 12 each side.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Matching Parts Ram 3500 HO
Matching Parts Ram 4500, Ram 5500
Applications
Tech Note 1: Matching Parts Ram 3500 HO
XVD283 2019-up Ram 3500 DRW Hub Exploded View
TK11837 Inner Wheel Bearing
TK11834 Inner Wheel Bearing Cup
TK11833 Outer Wheel Bearing
TK11836 Outer Wheel Bearing Cup
TK11832 Wheel Seal
TK11839 Axle Shaft O-Ring
TK11716 Spindle Nut
QU30123 Spindle Nut Lock Key
TK11838 Spindle Nut Lock Ring
QT1559 Inner Wheel Seal Installer
QT1100 1" x 8" Driver Handle
S24200 Medium strength Blue Threadlocker for the axle shaft flange bolts
TK11835 DRW Hub, 2019-2020
TK11842 DRW Hub, 2021-2022
TK11831 Axle Shaft, 2019-2020
TK11841 Axle Shaft, 2021-2022
Tech Note 2: Matching Parts Ram 4500, Ram 5500
XVD284 2019-up Ram 4500, 5500 DRW Hub Exploded View
TK11843 Brake Rotor to Hub Bolt
QU11807 Brake Rotor
TK11832 Wheel Seal
QU50649 Inner Wheel Bearing
QU50650 Inner Wheel Bearing Cup
TK11848 Wheel Hub with Cups and Studs
QU50646 Outer Wheel Bearing Cup
QU50648 Outer Wheel Bearing
TK11716 Spindle Nut
QU30123 Spindle Nut Key
TK11838 Spindle Nut Retainer
TK11717 Axle Shaft to Hub O-Ring
TK11853 Right Axle Shaft
TK11854 Left Axle Shaft
TK11855 Brake Sensor Tone Ring
TK11856 Tone Ring to Hub Bolt
TK11857 ABS Sensor Cap
Applications
RAM:
Ram 3500 Pickups with AAM 12" Rear Axles and High Output Cummins Diesel (Engine code ETM): 2019, 2020, 2021, 2022
Ram 4500 and Ram 5500 Trucks with AAM 12" Rear Axles: 2019, 2020, 2021, 2022
