Description

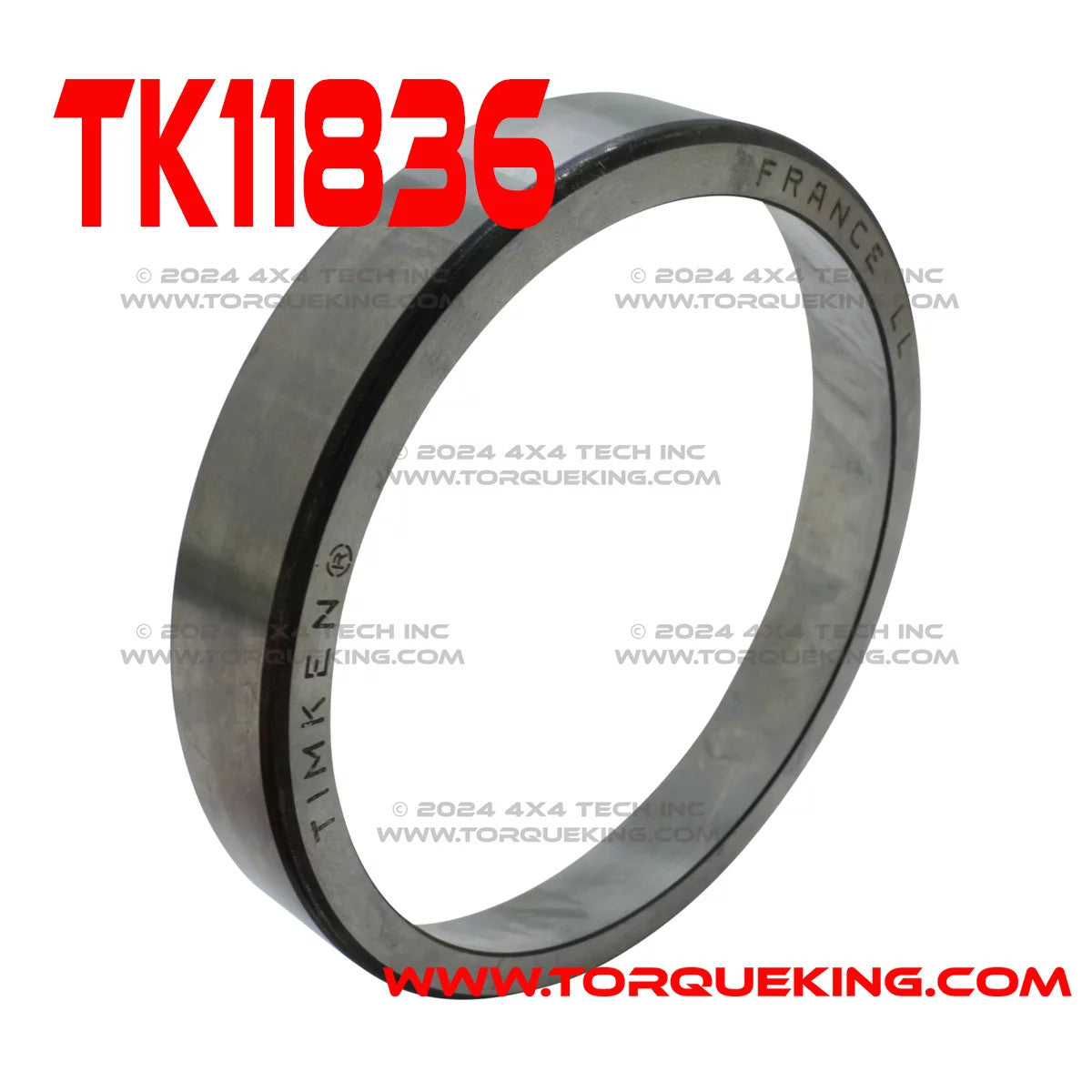

TK11836 Rear Outer Wheel Bearing Cup for Ram 3500 and GM DRW Trucks with 2-1/2" Spindle Nuts fits 2019-up Ram 3500 Dual Rear Wheel Pickup Trucks with the Cummins Diesel High Output (Engine code ETM) and AAM 12.0 12" rear axles. QT11836 additionally fits 2020-up Chevy Silverado and GMC Sierra 3500 DRW trucks. Also see TK30642 Cup and Cone Set.
Need More Info? Use the handy Links below to access over 45 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Always Replace
Installation Tools
Grease
Matching Parts for RAM
Matching Parts for Chevy and GMC
Applications
Installation Video
Tech Note 1: Always Replace
Always replace the cup and cone at the same time. The matching bearing is TK11833. Both TK11836 cup and TK 11833 Bearing are available together in TK30642 Cup and Cone Set.
Tech Note 2: Installation Tools
You new TK11836 Outer Wheel Bearing Cup is a precision machined component that must be properly installed for both safety and longevity. Our optional QT1833 Bearing Cup Installer is specifically made to install QK11836 bearing cups without damaging either the cup or hub. Use QT1833 in conjunction with one of our 5/8" tip Driver Handles:
QT1100 1" x 8"
QT1101 1" x 14"
QT1116 1-1/4" x 8" (Recommended)
QT1119 1-1/4" x 14"
Tech Note 3: Grease
To obtain maximum life from a wheel bearing, it must be properly lubricated. The long term wheel bearing lubrication is provided by oil from the differential that flows down the axle tubes and get trapped in the wheel hubs, however, the bearings must be lubricated to provide initial lubrication until oil from the diff works it's way down. Coat the inside hub and bearing cup surfaces with 75w85 synthetic axle lubricant. Pack the bearings with a clean NLGI #2 disc brake approved wheel bearing grease.
Tech Note 4: Matching Parts for 2019-up RAM 3500 DRW with Cummins High Output Diesel
XVD283 2019-up Ram 3500 DRW Hub Exploded View
QT1261 Spindle Nut Socket for 12 Slot Spindle Nut
TK11832 Wheel Seal
TK11834 Inner Wheel Bearing Cup
TK11833 Outer Wheel Bearing
TK11837 Inner Wheel Bearing
TK11839 Axle Shaft O-Ring
TK11716 Spindle Nut
QU30123 Spindle Nut Lock Key
TK11838 Spindle Nut Lock Ring
TK11840 Axle Shaft Bolt
S24200 Medium strength Blue Threadlocker for the axle shaft flange bolts
TK11835 DRW Hub, 2019-2020
TK11842 DRW Hub, 2021-2022
Tech Note 5: Matching Parts for 2020-up Chevy and GMC 3500 DRW
TK30640 Wheel Seal
TK30641 Inner Wheel Bearing Set
A560099 Brake Rotor Bolt
QU30643 Brake Rotor
TK30644 Wheel Stud
TKA30645 Wheel Hub with Bearing Cups
QU30124 Outer Bearing Cup Lock Ring
TK30646 Spindle Nut, 2020-2021
TK30663 Spindle Nut, 2022-2023
TK30647 Spindle Nut Lock Ring
QU30123 Spindle Nut Key
TK30648 Axle Shaft to Hub Gasket
TK30654 Axle Shaft, AAM 11.5" Rear
TK30655 Axle Shaft, AAM 12" Rear Chassis-Cab
TK30656 Axle Shaft, AAM 12" Rear Pickup
QU30121 Rear Axle Shaft to Hub Bolt
TK30651 Wheel Speed Sensor Retainer
TK30652 Rear Axle Housing Differential Gasket
TK30653 Rear Axle Housing Differential Cover
Applications
Chevy and GMC:
3500 Silverado and 3500 Sierra with Dual Rear Wheels: 2020, 2021, 2022
RAM:
Ram 3500 DRW Pickup Trucks with AAM 12" Rear Axles and High Output Cummins (Engine Code ETM): 2019, 2020, 2021, 2022
