Description
TK11827 SRW Rear Wheel Seal is a genuine original equipment American Axle Manufacturing Oil Bath Rear Wheel Seal for all 2019-up SRW Ram 2500 and Ram 3500 trucks equipped with either AAM 1150 11.5" or AAM 12.0 12" Ring Gear 14 Bolt, full floating Single Rear Wheel Rear Axles.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Lubrication
Oil Bath Seal
Axle Vent
Matching Parts
Applications
Tech Note 1: Lubrication
Under operating conditions, the rear wheel bearings are bathed in oil from the differential, but they do need to be pre-lubricated to provide initial lubrication.
Tech Note 2: Oil Bath Seal
TK11827 is a unitized Oil Bath type rear wheel seal. The rotating sealing surface is inside the seal. Both the ID of the seal is a tight fit on the spindle and the OD is a press fit in the wheel hub. In operation the outer portion of the seal rotates around the inside component. Oil Bath wheel seals can be easily damaged during installation by make-shift or wrong tooling. For best results, I strongly recommend you use optional QT1557 Wheel Seal Installer and either QT1100 1"or QT1116 1-1/4" diameter Driver Handles.
Tech Note 3: Axle Vent
Many wheel seal leaks are caused by pressure building in the axle due to a clogged axle vent system. Always check and clear the vent system. Other common causes of leaking seals include improper wheel bearing adjustment, poor installation techniques (See Tech Note 2), and damaged spindle surface or hub bore.
Tech Note 4: Matching Parts
QU50414 Inner Wheel Bearing
QU50414 Inner Wheel Bearing
QU50413 Inner Wheel bearing Cup
QT1557 Wheel Seal Installer

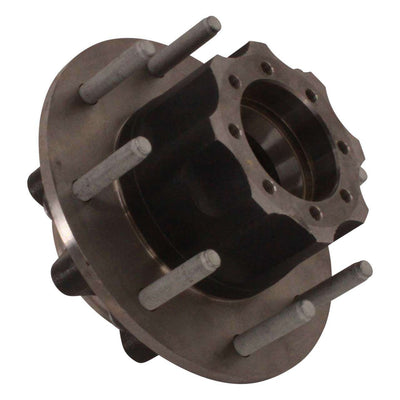

TK11828 SRW Hub with Cups and Studs
QU11712 Wheel Stud
QU50412 Outer Wheel Bearing
QU50411 Outer Wheel Bearing Cup
TK11828 Wheel Hub Assembly
QU10846 Spindle Nut
QU30123 Spindle Nut Key
QU10866 Spindle Nut Retainer
QU11823 Axle Shaft O-Ring
QU11121 Axle Shaft to Hub Bolt
Applications
RAM:
Ram 2500 and Ram 3500 SRW Trucks with AAM 11.5" or 12" Rear Axles: 2019, 2020, 2021, 2022
