TKA11740 1972-1993 Dodge 1 Ton DRW Rear Hub Assembly

TKA11740 DRW Hub and Bearing Cup Assembly for 1972-1993 Dodge 300 and 350 Series Dually Trucks is a Premium, Brand New rear wheel hub complete with Wheel Studs and Timken bearing cups for 1972-1980 Dodge D/W300 and 1981-1993 D/W350 1 ton trucks with Dual Rear Wheels (DRW) and rear drum brakes. TKA11740 is new USA made, Heavy-Duty Steel rear wheel hub for your 1972-1993 Ram 1 Ton dually Dana 70 Rear Axle. TKA11740 is CNC machined from a solid billet of high strength steel for maximum strength and durability under the toughest conditions. TKA11740 replaces discontinued Chrysler Dodge Mopar 3637776 and 53007766 OEM Hubs.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
DRW Only
Hub Assembly
Wheel Bearing Adjustment
Lubrication
Axle Vent
Grease Deflector or Slinger
Matching Parts
Safety Note
Applications

Tech Note 1: DRW Only
We often get requests about converting a Single Rear Wheel (SRW) Rear Axle to a Dual Rear Wheel (DRW). TKA11740 ONLY fits 1972-1993 Dual Rear Wheel Rear Axles with Rear Drum Brakes. The drum offset, spindle length and inner wheel bearing/wheel seal diameters are different between the SRW and DRW rear axles!

Tech Note 2: Hub Assembly

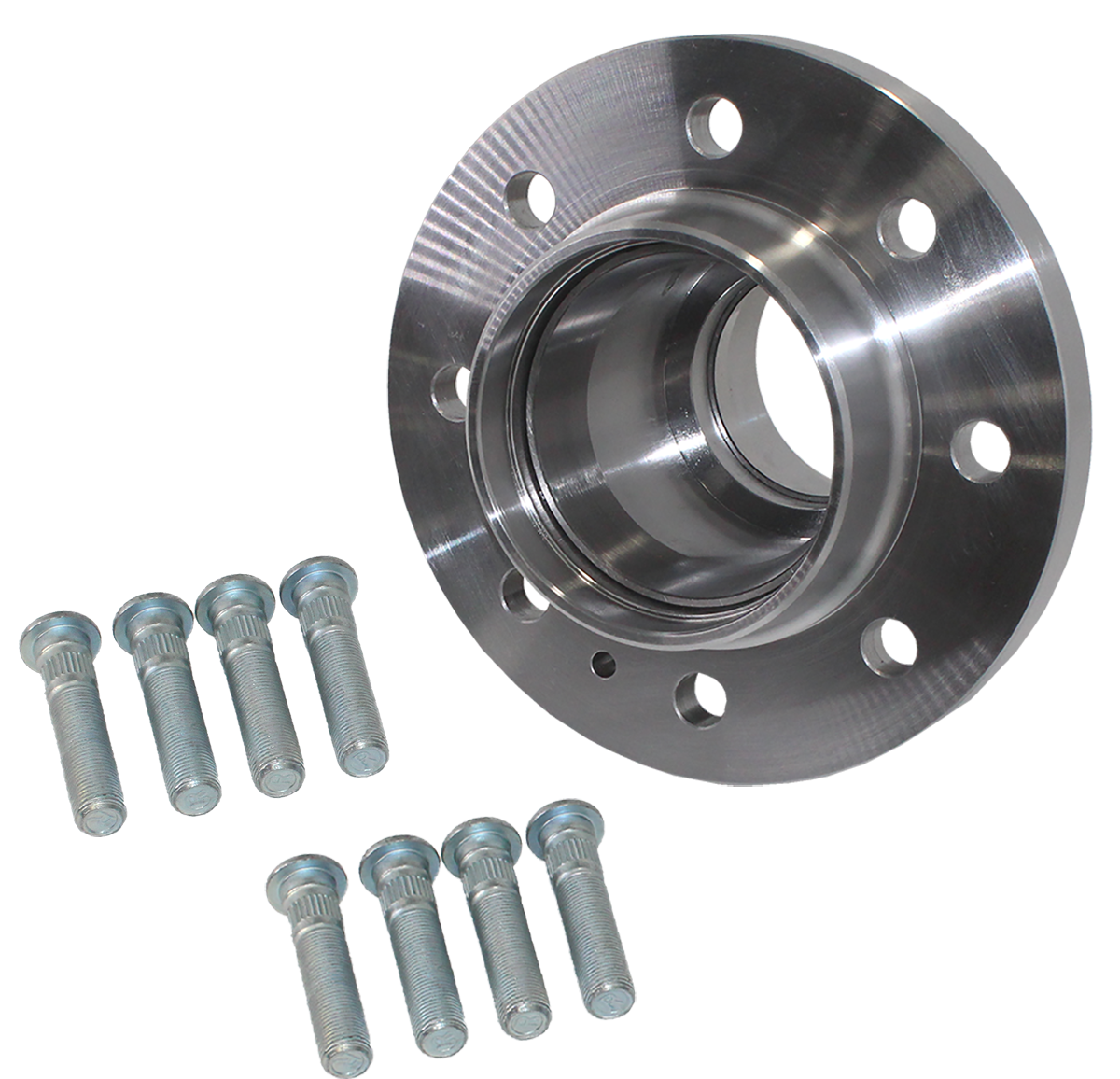

TKA11740 is a Hub Assembly that includes (8) QU52173 5/8" Wheel Bolts (1) TK90062 Wheel Alignment Pin, plus installed inner/outer Timken Bearing Cups. The wheel bolts or studs are shipped loose because the brake drum must be installed on the hub before you press the studs in. The supplied Wheel Alignment Pin is longer than stock to accommodate aluminum and other aftermarket wheels with thicker flanges. If you prefer the shorter stock pin, you can drive it from your old hub and install it in place of the supplied TK90062 Pin.

Tech Note 3: Wheel Bearing Adjustment
Under Construction

Tech Note 4: Lubrication
The Rear Wheel Bearings and Bearings need to be packed with grease to provide initial lubrication before you install the hub assembly on the rear axle spindle.

Tech Note 5: Axle Vent
Always check to make sure the axle vent system is clear. A plugged vent will cause axle pressure to build up which can blow out new wheel seals in a hurry.

Tech Note 6: Grease Deflector or Slinger
Dodge used TK11736 stamped steel Grease Deflector or Slinger to help protect the brake shoes from oil contamination in the case of a wheel seal leak. TK11736 Slinger is no longer available. Like your original hub, TKA11740 Hubs are sized to accept the slingers if they are in good shape and the ID of the matching drum is also sized accurately. The slingers were always a very tight fit between the drum and hub. If the slinger is thickened from being pressed together during the original installation, damaged/rusty or the drum bore is either dirty or slightly under size it may be impossible to install and reuse the slinger. In that case, you will have to install the drum without the slinger.

Tech Note 7: Matching Parts
QU40451 OEM Dana Rear Wheel Seal
QU50075 Upgrade, Double Lip Rear Wheel Seal
QU50377 Timken Inner Wheel Bearing Cup (included with Hub)
QU50376 Timken Inner Wheel Bearing
QU50411 Timken Outer Wheel Bearing Cup (included with Hub)
QU50412 Timken Outer Wheel Bearing
QU40078 Axle Shaft Flange Gasket
QU80000 12" Rear Brake Drum
QU40077 Spindle Nut for 1979.5-1993
QU40089 Spindle Nut Lock Key for 1979.5-1993
QU40051 Spindle Nut Lock Washer for 1972-1979.5
QU40052 Spindle Nut for 1972-1979.5
QU40535 Axle Shaft Bolt for 1991-1993
QU42238 Rear Hub Stud and Cone Kit for 1972-1990
TK40582 32 Spline Axle Shaft for 1991-1993 DRW Pickup
TK40583 32 Spline Axle Shaft for 1991-1993 DRW Cab and Chassis
TK40585 35 Spline Rear Axle Shaft for 1972-1990 Wide Track Chassis and Pickup
TK40586 35 Spine Axle Shaft for 1972-1990 34" Frame Cab and Chassis
QT1009i Spindle Nut Socket for 1979.5-1993
QU90018 Pyroplex Plus Synthetic Grease
QU90021 Spicer Premium Synthetic Grease

Exploded View: Available Soon!

Safety Note:
Stock Elastic Stop Spindle Nuts and Lock Wedges used on 1979-1993 Dodge Ram Dana 60 and Dana 70 rear axles are designed to be installed once and only once! For safety reasons, you must discard both the nut and wedge if they are removed from the spindle for any reason. Both parts lose a percentage of their resistance of coming off when they are removed. You may hear of cases where this type of factory nut has come off while the truck was being driven. Invariably, these failures involve nuts and wedges that have been reused or improperly installed. NEVER REUSE FACTORY ELASTIC STOP SPINDLE NUTS and LOCK WEDGES!!!!

Applications
Dodge:
D300, W300 with Dual Rear Wheels: 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
D350, W350 with dual Rear Wheels: 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
