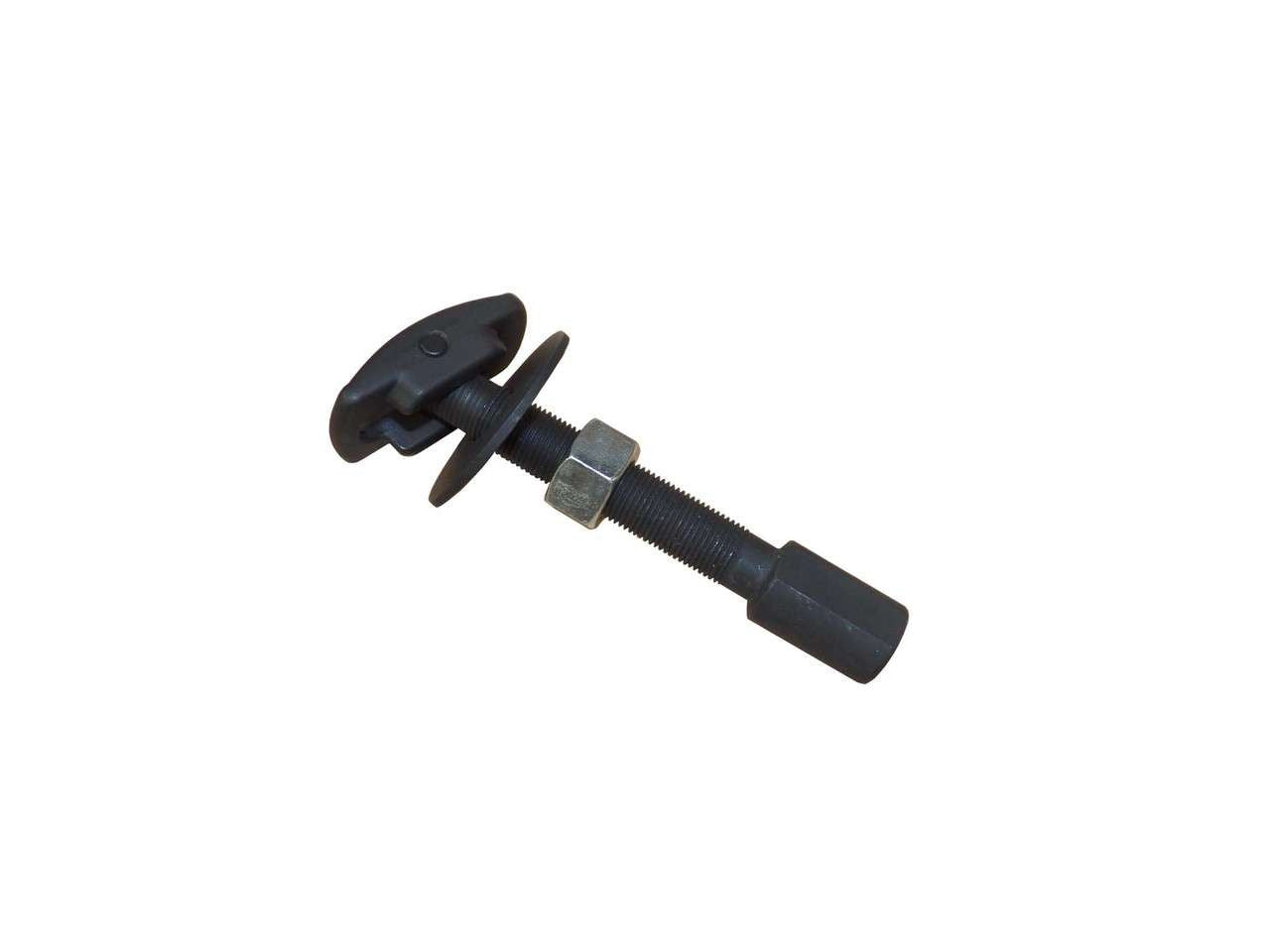

QT1168 Medium Semi-Float Rear Axle Bearing Puller

QT1168 Medium Semi-Float Rear Axle Bearing Puller for 1983-up Ford 8.8", 1974-2007 Dodge 9-1/4" Standard Duty, and 1964-up GM 1/2 ton Semi-Float Rear Axles in trucks and vans. QT1168 makes pulling your wheel bearings a straight-forward job. Fits any 5/8" fine thread Slide Hammer (The bigger the better!). Made in Taiwan.

Discontinued.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Works On
To Use
Bearings
Matching Parts
Applications

Tech Note 1: Works On
QT1168 works on 2.53" outside diameter semi-float roller bearings in 1/2 ton and light-duty 3/4 ton truck or van semi-float rear axles. Due to different axle tube inside diameters, you may need to use a grinder to reduce the puller plate diameter.

Tech Note 2: To Use
To use QT1168, loosen the nut and slide back the washer so the tip can swivel against the threaded stem as you slide it through the bearing. Pull the tool back until the plate seats against the inside of the bearing. Tighten the nut so the washer contacts the rollers. Attach your slide hammer and have at it!

Tech Note 3: Bearings
Semi-float wheel bearings are usually a very tight fit in the axle housing. You want a 5 pound or larger Slide Hammer (I use 10 pound). The rollers still have to be in the bearing for the puller to work.

Tech Note 4: Matching Parts
Matching Parts for QT1168 Bearing Puller:
QU50213 Wheel Bearing (Chevy, Dodge, Ford, GMC)
QU50271 Wheel Seal (Dodge)
QU10953 Axle Shaft C-Clip (Dodge)

Applications

Chevy and GMC:
1/2 Ton with 8.5" or 8-7/8" Rear Axles: 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995

Dodge:
9.25" Standard Duty Rear Axle: 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

Ford:
8.8" Rear Axle: 1983-up

Jeep:
Cherokee and Comanche with 8.25" Ring Gear Rear Axle
