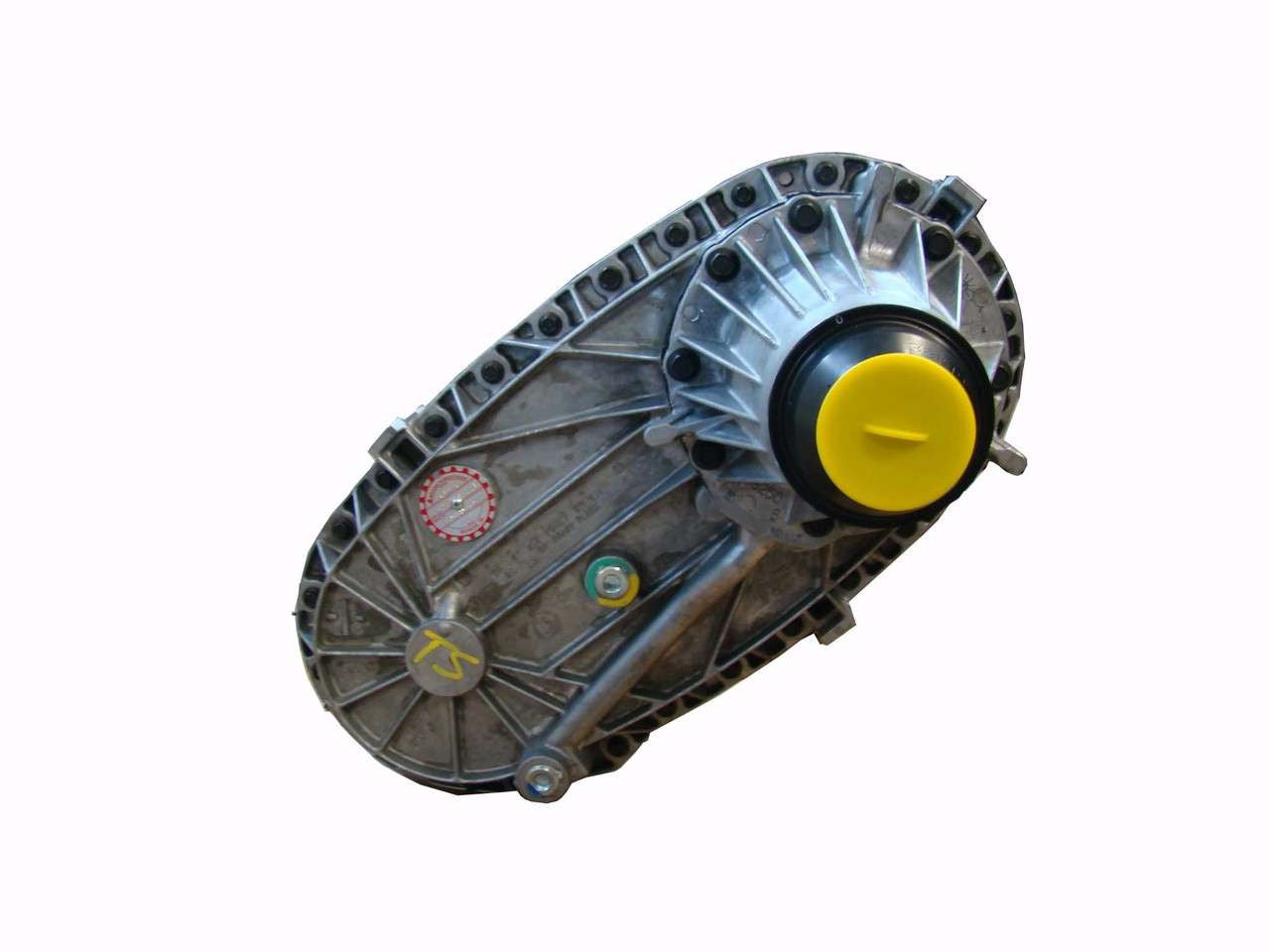

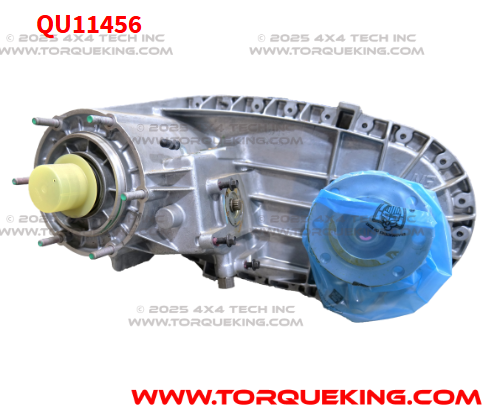

QU11456 52123024AB NP273D Electric Shift Transfer Case Assembly Without Shift Motor

QU11456 52123024AB 23 Spline New Venture NP273D Electric Shift Transfer Case Assembly WITHOUT Shift Motor for 2006-2012 Dodge Ram 2500 and Ram 3500 trucks with 23 spline output automatic transmissions. Has Spline type shift shaft and Slip yoke style rear output. Made in USA.

Order QU11169 Shift Motor separately

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Check Oil Level
Updated Transfer Case
Matching Slip Yokes
Transmission to Transfer Case Gasket Not Required
Applications

Tech Note 1: Check Oil Level
These transfer cases are shipped by New Venture with a factory fill of oil, but leakage can occur during shipping if the case is tipped. Always check the oil level after installation and refill as needed.

Tech Note 2: Updated Transfer Case
QU11456 assembly is the latest production model of 52123024 series of transfer cases. It includes all the production updates that were phased in over the years. QU11456 replaces all previous 52123024 versions including: 52103024, 52123024AA, plus Dodge replacement R2123024 series cases.

Tech Note 3: Matching Slip Yokes
The output shaft has 34 splines. If you need a matching slip yoke, these are the available choices:
AAM 1415 Series (1-3/16" Cup Diameter): QU50430, QU50431, QU50432, QU50752
AAM 1485 Series: (1-3/8" Cup Diameter): QU50441

Tech Note 4: Transmission to Transfer Case Gasket Not Required
Dodge did not use a gasket between the transmission and transfer case as both the transmission output shaft and transfer case input shaft are sealed. However, you can use TK10519 Transmission to Transfer Case Gasket if you wish.

Applications
Dodge:
Ram 2500, Ram 3500: 2006, 2007, 2008, 2009, 2010, 2011, 2012
