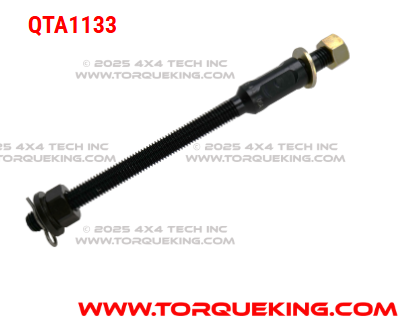

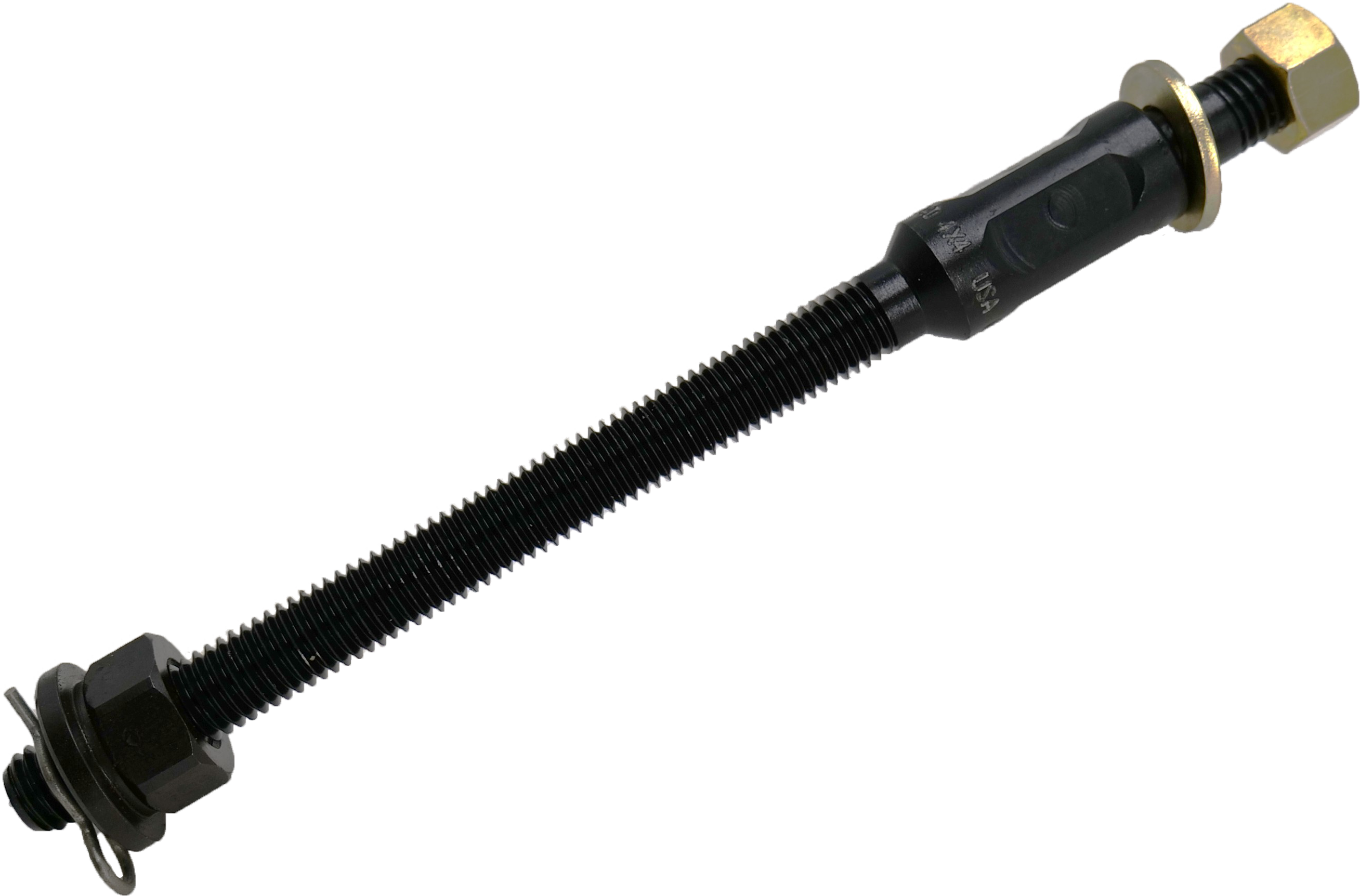

QTA1133 Front Inner Axle Shaft Seal Press Screw Assembly

QTA1133 Front Inner Axle Shaft Seal Press Screw Assembly for Dana/Spicer Model 50, 60, 61, 70, and GM 10 Bolt Front Axles. Use with the appropriate Seal Installer and Thrust Plate for your application to quickly and easily press the Inner Axle Shaft oil seals in your 4x4 front axle. Rod is CNC machined from a billet of solid high strength U.S. produced steel. Has wrench flats for 7/8" end wrench to hold rod steady as you tighten the hardened forcing nut against the seal installer for your application. QTA1133 Assembly includes Press Screw, Hardened Forcing Nut, QU95006 Grade 8 Nut, 2 QU95051 Grade 8 Flat Washers, and Retaining Clip. Made in U.S.A. by us here in Montana.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Adjustable Depth Installer Sets
Fixed Depth Installer Sets
Applications

Tech Note 1: Adjustable Dept Installer Sets
This Press Screw Assembly is a component part of these ADJUSTABLE DEPTH Inner Axle Seal Installer Sets:
TS4643 Ford Excursion and 1999-2004 Super Duty® F-250 and F-350 4x4s with Dana 50 Front Axles
TS4644 1992-current F-350, 1999-current Super Duty® F-250, F-450, F-550 4x4s with Dana 60 Front Axles
TS4656 1975-1993 All Dana 60 and 61 King Pin Axles in Chevy. Dodge, Ford, GM, and IHC 4x4 trucks

Tech Note 2: Fixed Depth Installer Sets
This Press Screw Assembly is a component part of these FIXED DEPTH Inner Axle Seal Installer Sets:
TS4802 1975-1993 All Dana 60 and 61 King Pin Axles in Chevy. Dodge, Ford, GM, and IHC 4x4 trucks
TS4807 1992-current F-350, 1999-current Super Duty® F-250, F-450, F-550 4x4s with Dana 60 Front Axles
TS4808 Ford Excursion and 1999-2004 Super Duty® F-250 and F-350 4x4s with Dana 50 Front Axles

Applications:
Dana/Spicer Models 50, 60, 62, 70 and GM Bolt Axles: (1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018)
