QT1130 Dana 60, Dana 70 Thrust Plate for Axle Seal Installer Tools

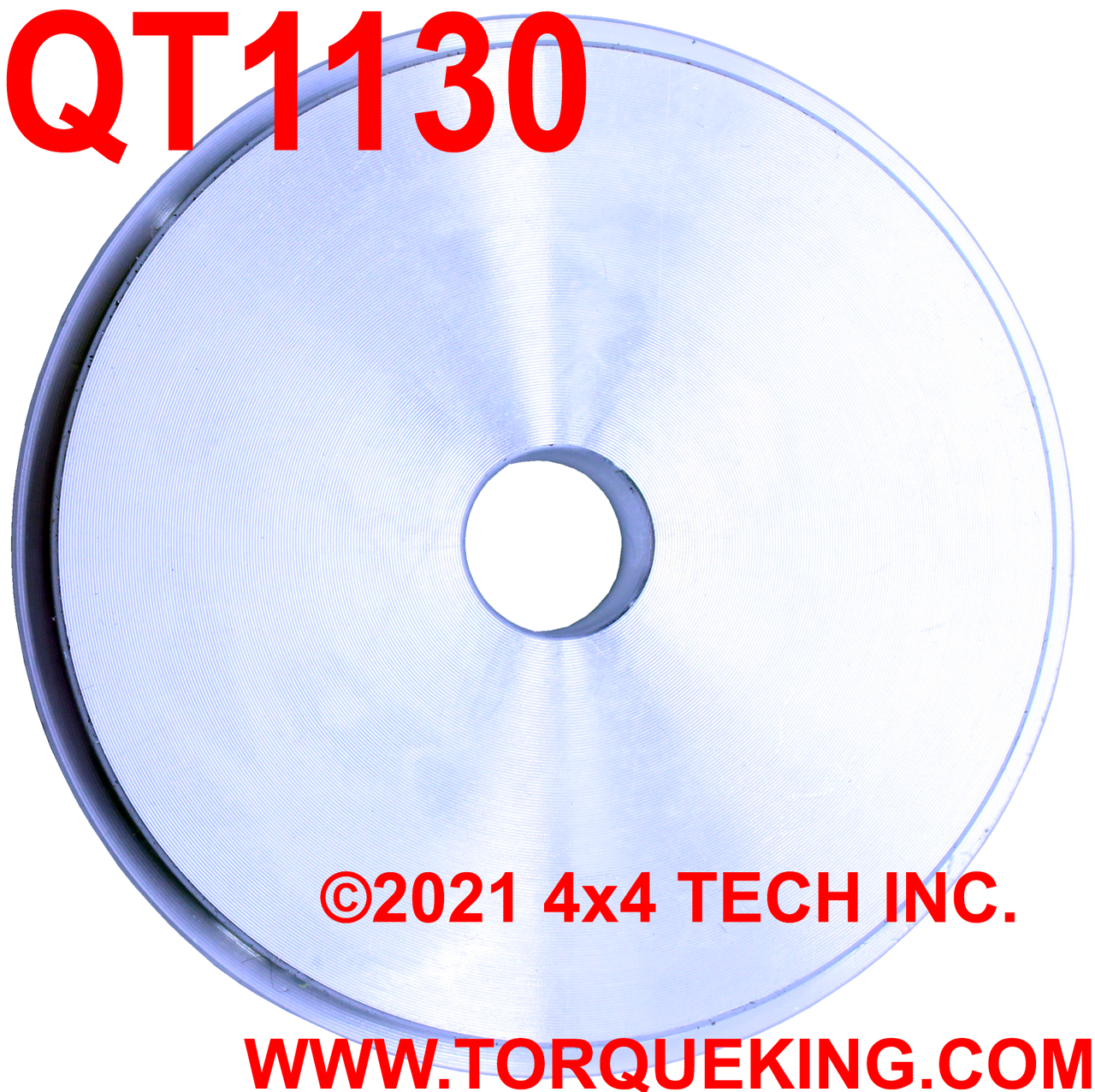

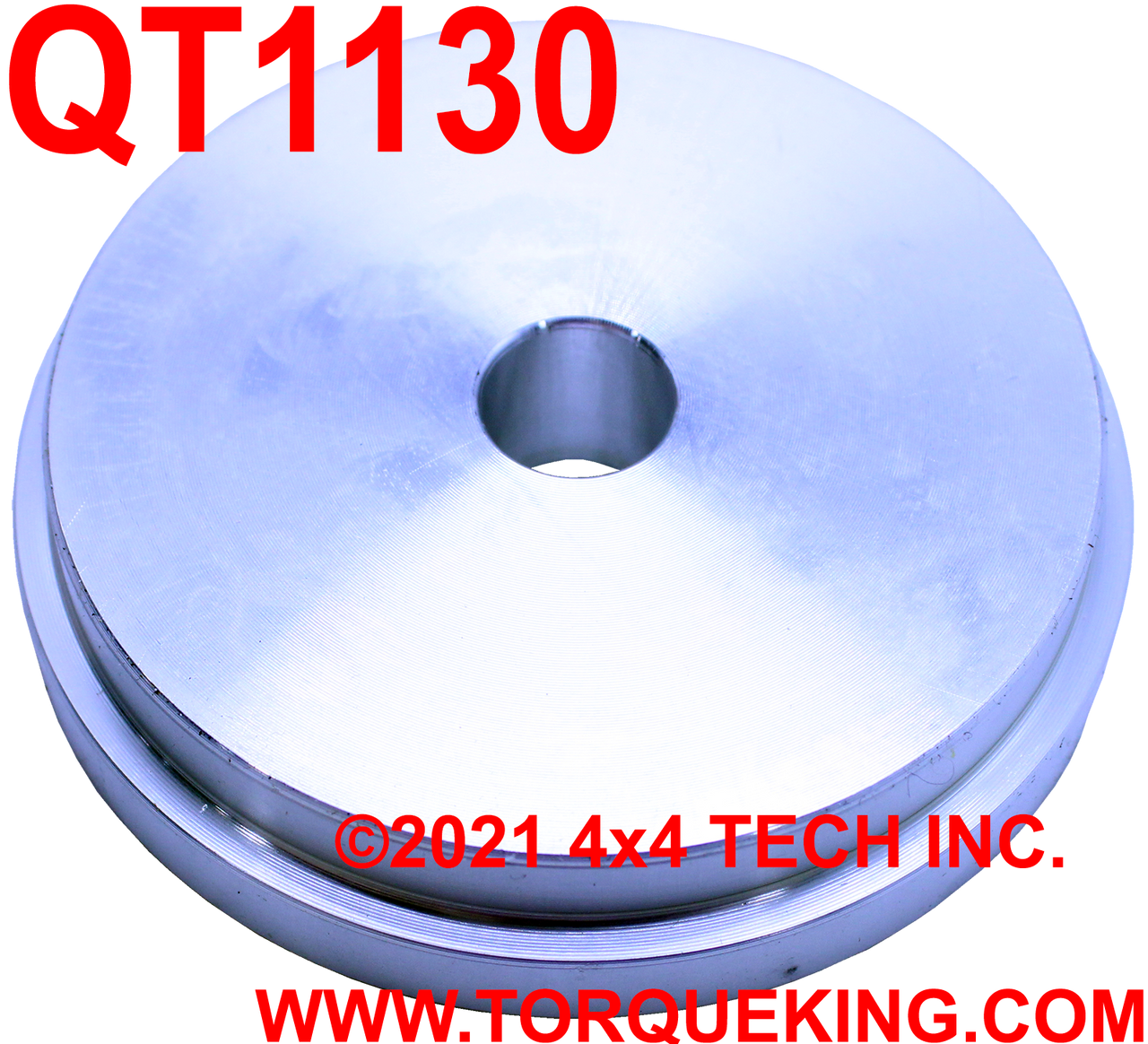

QT1130 Inner Axle Seal Installer Thrust Plate for Dana 60, Dana 61, Super 60, and Dana 70 Front Axles Fits all Dana Model 60, Super 60, 61, and Closed Knuckle Model 70 axles from 1957-current. QT1130 is placed against the differential bearing bore face opposite of the side you are pressing in a new seal. QT1130 is included in many Kits & Tool Sets. Custom CNC Machined, Made in U.S.A. by Us Here in Montana.

See how fine it works on this Ford Axle in the Video in the Product Videos tab!

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Service Procedures
5/8” ID
Available Kits
Removing Seals
Replacing Seals
4X4 Tech Publications
Applications:

Tech Note 1: Service Procedures
Your brakes, wheel hubs, axle shafts, and differential must be removed from the housing to replace your QU40244 Inner Axle Shaft Seals. For Ford 1999-2004 Super Duty®, please refer to these 4x4 Tech Publications for service procedures:
TSB4643 Includes 5 pages of Step-by-Step procedures with 17 full-color photographs. Covers axle shaft removal, inner axle seal replacement, axle shaft reassembly, differential oil specs, differential gear backlash, torque specs and wrench sizes for fasteners. Explains in text and photos how to change the Inner Axle Shaft Oil Seals located next to the differential. Includes detailed axle shaft oil seal replacement procedures, tool recommendations, and torque specifications that you need to correctly perform inner seal replacement plus check the gear backlash on your Ford Excursion or 1999-2004 Ford F250, F350, F450, or F550 Super Duty® 4x4 Dana Spicer Model 50 or Model 60 front axle. *Note: The TSB4643 only applies specifically to Ford Excursion and 1999-2004 Super Duty®. For 2005 and newer Super Duty trucks, Inner Seal Replacement is identical. The disassembly and reassembly are different as far as the hub and rotors.
TM4637 Front Axle Tech Manual for Ford Excursion and 1999-2004 Super Duty is a 17 page, color illustrated, step-by-step printed shop repair manual that includes our four Tech Service Bulletins plus Front Axle Exploded Views. TM4637 covers: Front Hub Service (TSB4594), Axle Shaft Service (TSB4610), Ball Joint Service (TSB4591), and Inner Axle Seal Replacement Service (TSB4643), including torque specs all in one manual.
TM4688 4x4 Hub, Axle Shaft, Ball Joint, and Axle Shaft Seal Service Manual includes 76 full color printed tech pages with precise and detailed service instructions, plus a color photo for every step. (Includes all info in TM4637.) Close to 400 color photographs, color Exploded Views and Parts Guide. Comprehensive service information for replacing Front Axle Shaft Oil Seals, Axle Universal Joints, Ball Joints, Knuckle Seals, Axle Shaft Needle Bearings, Wheel Hubs, and Hub locks. Also covers basic Front Brake Service. Additionally includes complete torque specs, and tool recommendations.

Tech Note 2: 5/8"ID
QT1130 Thrust Plate fits against Differential Bore Face when pressing in opposite axle seal on axles without Central Axle Disconnect. (All Thrust Plates have 5/8" ID center holes.)

Tech Note 3: Available Kits
QT1130 Dana 60 Thrust Plate is a component tool of QK4644, TS4644, QK4807, TS4807, QK4983, TS4983, QK4656, TS4656, QK4867, TS4867 Kits and more.

Tech Note 4: Removing Seals
Once the axle is disassembled, the old seals can be easily removed with our QK4647 Seal Remover Tool Set or another suitable tool such as a length of sturdy pipe that will fit inside the axle tube and oil guide. You will also need to clean the inside of the axle tube to remove dirt and crud that could get pushed into your new seal during reassembly. For 1999-2004 vehicles, QK4647 is made it fit through QU20039 Plastic Axle Shaft Guides which are located in the axle tubes just outboard of the inner axle shaft oil seals.

Tech Note 5: Replacing Seals
When replacing your inner axle seals, ALWAYS inspect your Ball Joints, Axle Universal Joints, Differential Bearings, Outer Axle Shaft Support Bearing, and Wheel Hubs for wear or damage. The extra time needed to replace these components is minimal since you already have the axle apart to do the axle seals. Also, the large diameter seals on each outer axle shaft are not reusable and must be replaced with a new one using a special tool to prevent water infiltration and/or vacuum loss.

Tech Note 6: 4x4 Tech Publications
QU40244 is item 35 in the Differential Parts Full Color Exploded View that is included in these 4x4 Tech Publications for Ford Excursion and 1999-2004 Super Duty®: TM4637, and TM4688.

Applications:
Chevy/GMC:
K30, K35, K3500 V3500: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1991
Military CUCV: 1984, 1985, 1986, 1987, 1988

Dodge:
W300: 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1975
W600: 1974, 1975, 1976, 1977, 1978
W300, W350: 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
W250 with Cummins Diesel: 1989, 1990, 1992, 1993

Ford:
F-250 Heavy Duty, F-350: 1978, 1979
F-350: 1985, 1986, 1987, 1988, 1989, 1990, 1991
F-350: 1992, 1993, 1994, 1995, 1996, 1997
F-250, F-350SRW (only those with Model 60 axle): 2002, 2003, 2004
F350DRW, F-450, F550: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

IHC:
1300: 1968.5, 1969, 1970, 1971, 1972, 1973, 1974, 1975
1600: 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978
1300 Camper Special: 1975
