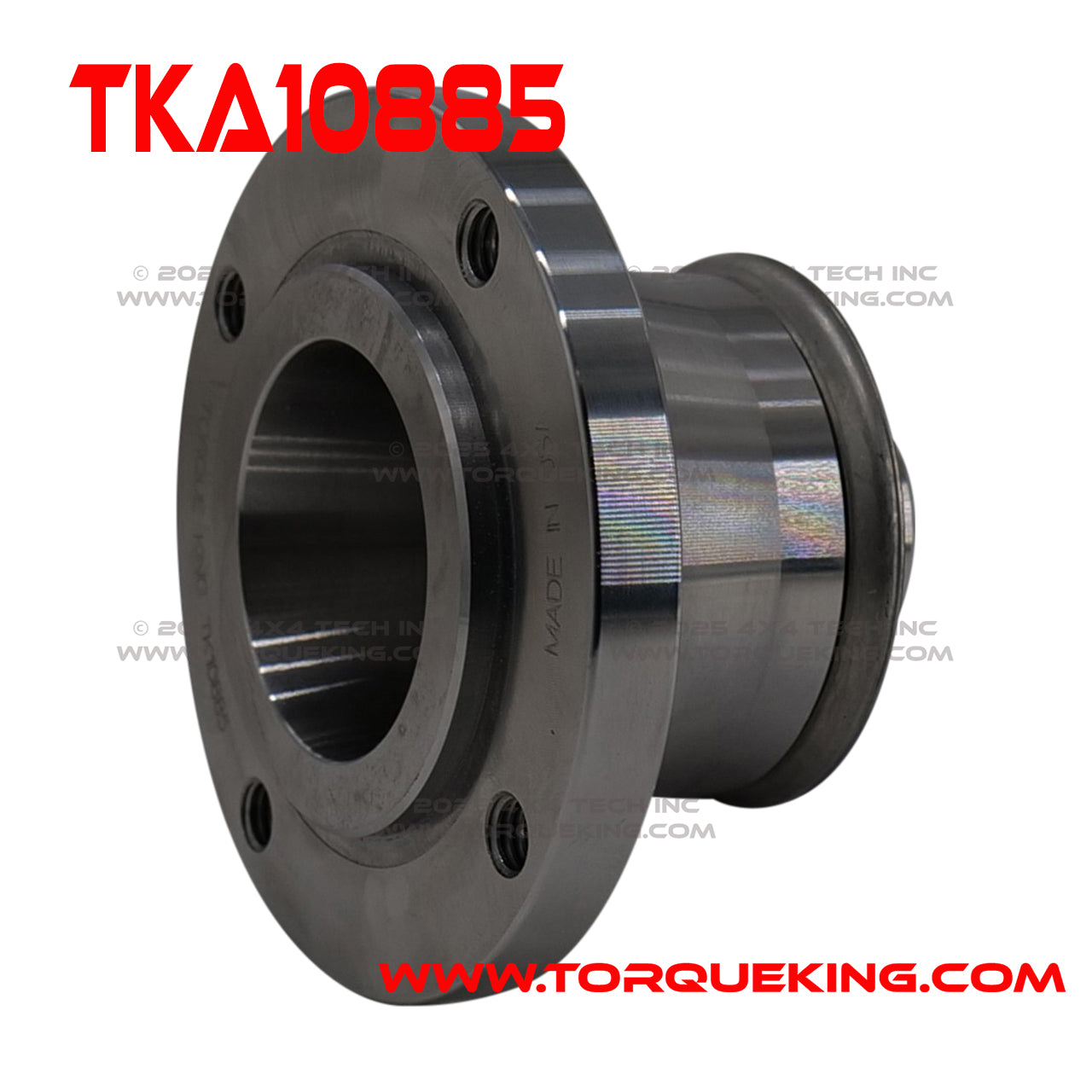

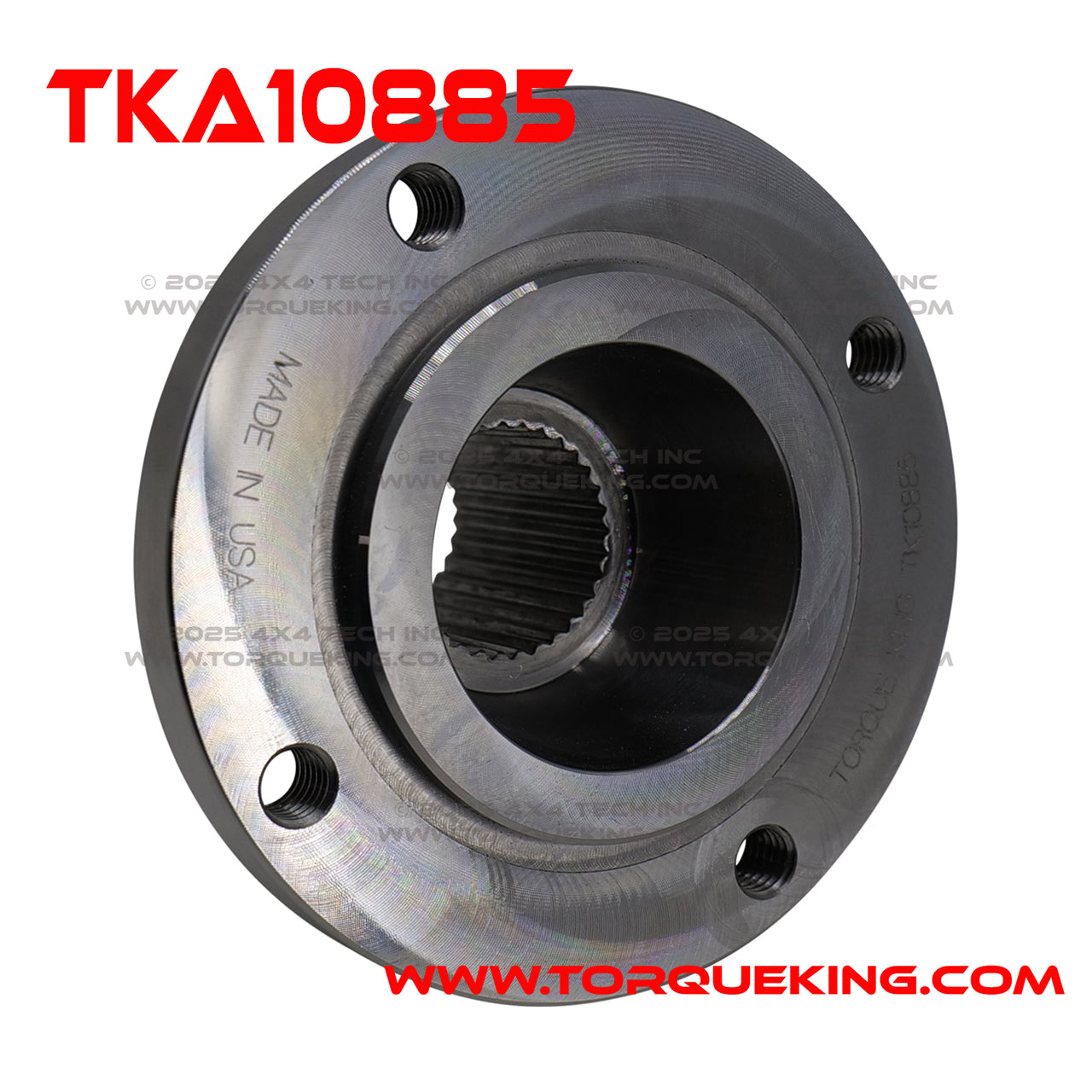

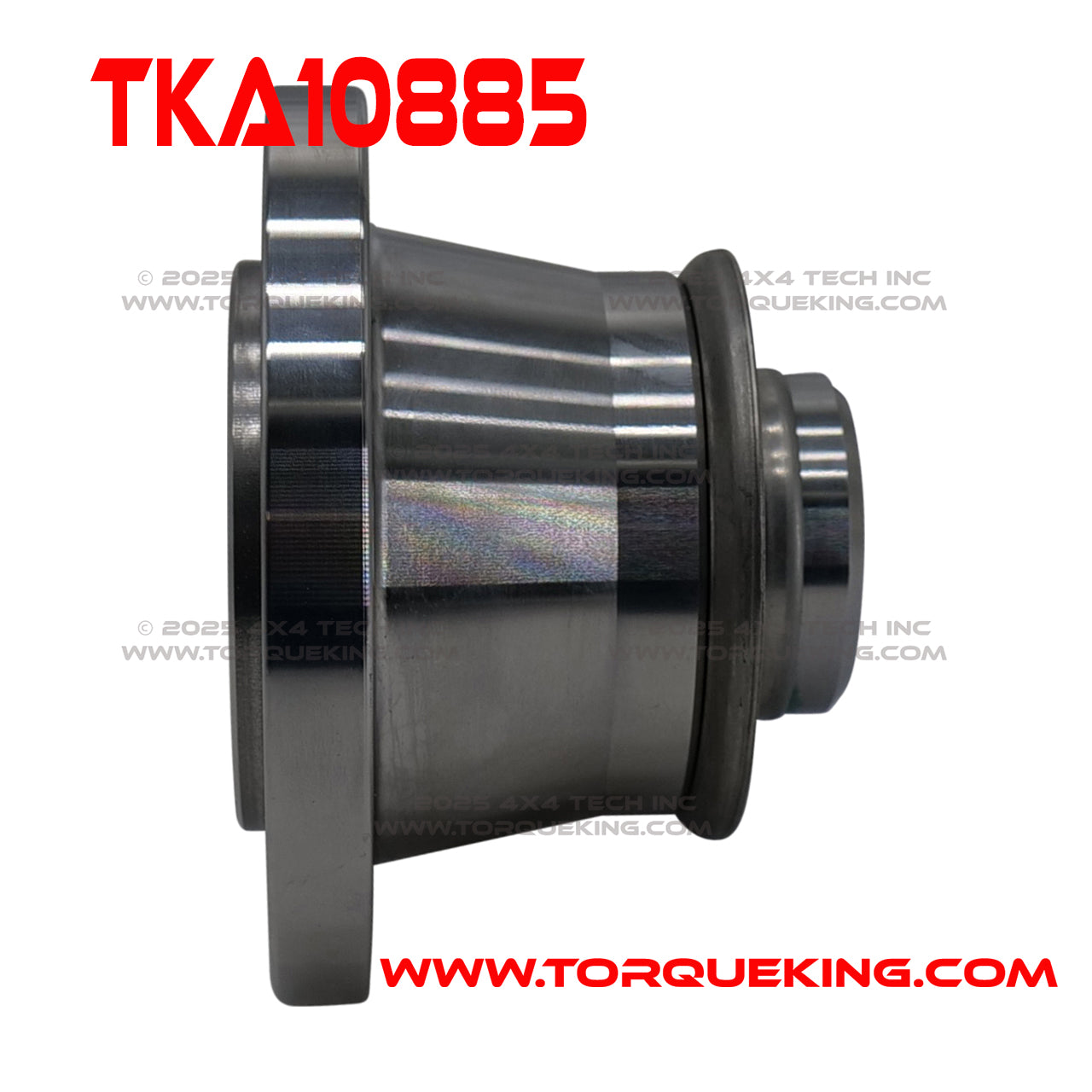

TKA10885 Front CV Flange Yoke for 1998-2002 NP241DHD & NP241DLD

TKA10885 Torque King Steel Billet 1999-2002 NP241DLD/NP241DHD Transfer Case Front CV Flange Yoke is a premium USA made heavy-duty replacement 1-3/8" x 32 Spline CV Drive Flange made from tough Billet Steel. TKA10885 replaces the original front output CV flange used in 1998-2002 Dodge RAM 2500, Ram 3500 4x4 trucks with NP241DLD or NP241DHD Transfer Cases. TKA10885 now includes QU10639 Slinger/Wear Sleeve. USA Made.

Also See: QU10885U Used Front CV Flange Yoke available while supplies last

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Complete Flange Yoke Kit
Matching Parts NP241DHD
Matching Parts NP241DLD
Applications

Tech Note 1: Complete Flange Yoke Kit
For a complete Flange Yoke Kit, see QK2037.

Tech Note 2: Matching Parts NP241DHD
Exploded View XV4003 1998-2002 Dodge Ram NP241DHD Transfer Case
QU10512 Front Output Flange Lock Nut
TK10513 Splined Yoke Seal
QU10806 Grade 8 Bolt
QU10639 Slinger/Wear Sleeve
QU10801 Front Output Seal with Wiper
QU50875 Front Output Bearing
QU10874 Front Output Bearing Snap Ring
QU10200 Front Output Shaft
QU10922 Lower Chain Sprocket
QU50000 Drive Chain
QU10818 Front Output Sprocket Snap Ring
QU50502 Front Output Rear Needle Bearing
Mopar® 68218057AB ATF+4 Transfer Case Fluid, Requires 3-1/4 Quarts to Fill

Tech Note 3: Matching Parts NP241DLD
Exploded View XV4004 1998-2002 Dodge Ram NP241DLD Transfer Case
QU10512 Front Output Flange Lock Nut
TK10513 Splined Yoke Seal
QU10806 Grade 8 Bolt
QU10639 Slinger/Wear Sleeve
QU10801 Front Output Seal with Wiper
QU50875 Front Output Bearing
QU10874 Front Output Bearing Snap Ring
QU50505 Front Output Shaft
QU50071 Drive Chain
QU50513 Lower Driven Sprocket
QU10818 Front Output Sprocket Snap Ring
QU50502 Front Output Rear Needle Bearing
Mopar® 68218057AB ATF+4 Transfer Case Fluid, Requires 2.31 Quarts to Fill

Applications
Dodge:
Ram with NP241DLD or NP241DHD Transfer Cases: 1998, 1999, 2000, 2001, 2002

Drawing is a Large File that may take Longer to Load
