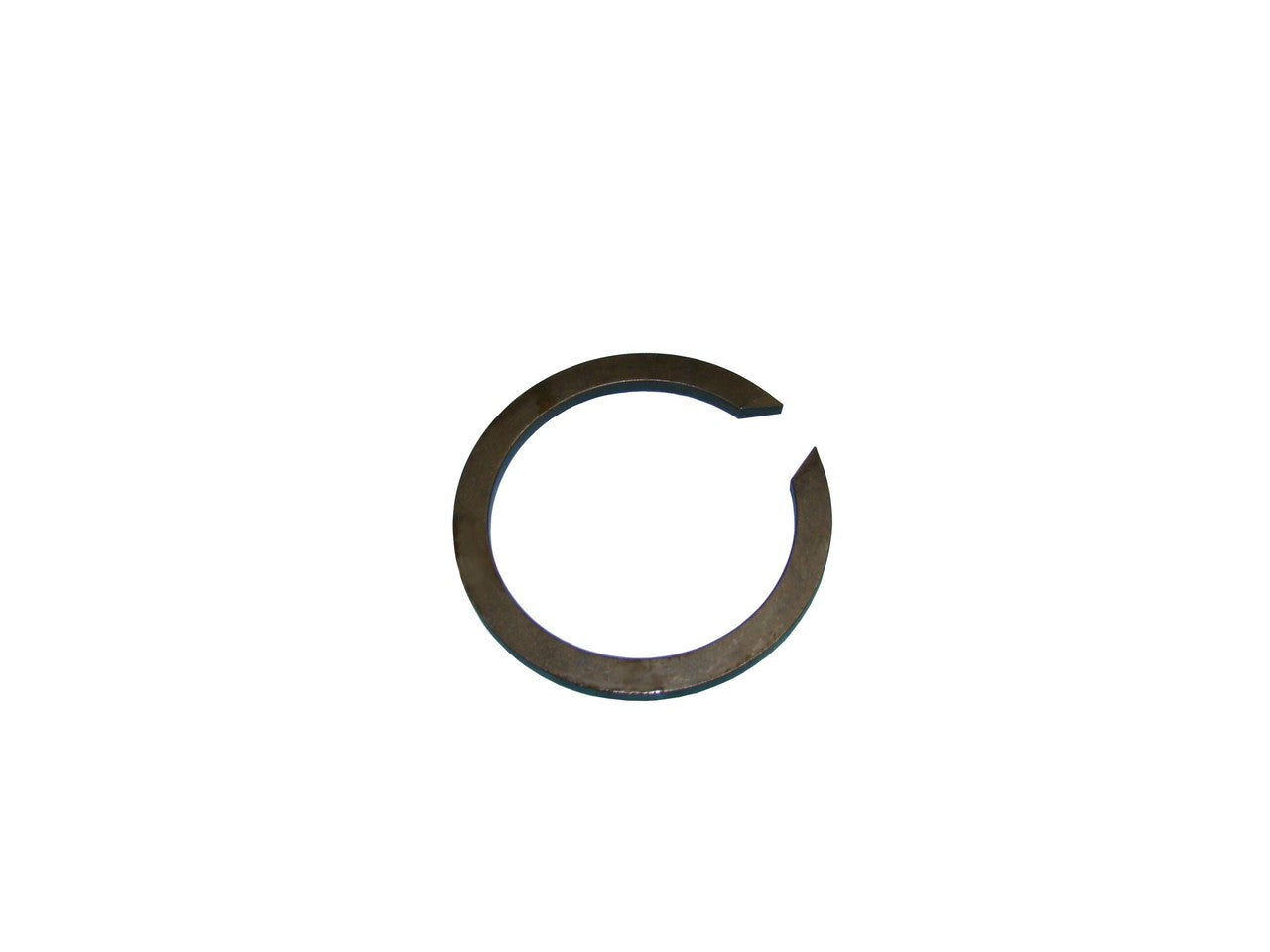

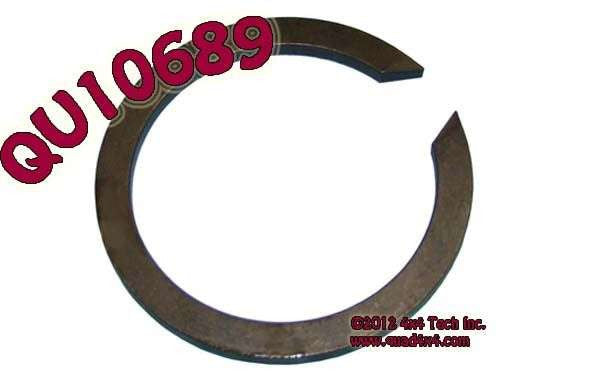

QU10689 New Process NP205 Transfer Case Low Gear Lock Ring

THIS PART HAS BEEN SUPERSEDED BY QU51164

QU10689 New Process NP205 Transfer Case Low Gear Lock Ring is Genuine OEM replacement for the Low Gear Lock Rings used on all mid-to-late production NP205 Transfer Cases. Also replaces early production Low Gear Snap Rings with eye holes. Sold individually, but Requires two per case except for 1982-1985 GM Synchronized units use one. USA Made.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Product Note
Matching Parts
Tech Help
Applications

Tech Note 1: Product Note
All New Process NP205 Transfer Cases EXCEPT 1982-1985 GM synchronized NP205 Transfer Cases use two of these Lock Rings, one on each output shaft. 1982-1985 GM synchronized NP205 Transfer Cases use one of these Lock Rings on the rear output shaft and a QU30081 Lock Ring on the front output shaft.

Tech Note 2: Matching Parts
Optional Matching Parts for QU10689 are:
TK10859 Low Gear
QU50345 32 Spine Front Output Shaft
TK50084 32 Spline Rear Output Shaft
QU50185 Low Gear Bearing Rollers
QU10696 and QU50256 Low Gear Thrust Washers
Chevy & GMC Shop Manuals
Dodge & Ram Shop Manuals
Ford Shop Manuals

Tech Note 3: Tech Help
Need Tech Help on rebuilding your NP205? Get my TM2000 New Process NP205 Transfer Case Service Manual. A Complete NP205 shop Manual with over 375 color photographs is your indispensable NP205 resource for Repair Procedures and Parts Identification. Complete coverage of Disassembly, Inspection, and Reassembly Procedures. Also, Shop Notes, Tool Recommendations, Complete Parts Guide, and full color Exploded Views, including Right Drop and Left Drop Models, plus GM Specific Parts. Covers New Process NP205 Transfer Cases found in Chevrolet, Dodge, Ford, GMC, and International Harvester (IHC) 4x4 vehicles from 1969-1993.
Or my TM2002 for the Exploded Views and Parts Guide only. Fully Illustrated with dozens of crisp color photographs for EASY Parts Identification! This Manual includes 10 page Parts Identification Guide with full color Exploded Views.

Applications
All New Process NP205 Gear Drive Transfer Cases
