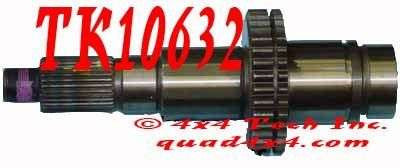

TK10632 Genuine 32 Spline Front Output Shaft for New Process NP205

THIS PART HAS BEEN SUPERSEDED BY TK10632U

TK10632 Genuine New Process 32 Spline Front Output Shaft for New Process NP205 Transfer Cases is a genuine New Process original equipment, USA made, 32 spline transfer case front output shaft that fits all Dodge, Ford, and International NP205 transfer cases and can be retrofitted to any Chevy or GMC NP205 model EXCEPT 1982-1985 synchronized units. The accurate, high quality machining, precise heat treatment, and tough steelmake these shafts the preferred choice for all heavy-duty NP205 applications. Made by New Process in Syracuse New York. Sorry! TK10632 new shaft is sold out.

TK10632U Used New Process 32 Spline Front Output Shaft for New Process NP205 Transfer Cases available while supplies last.

Also see QU50345 aftermarket 32 Spline Front Output Shaft.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Genuine Part
Matching Parts
Applications

Tech Note 1: Genuine Part
TK10632 is a Genuine New Process 32 spline Front Output Shaft which is out of production and is Sold Out. We also stock QU50345 aftermarket 32 Spline Front Output Shaft.

Tech Note 2: Matching Parts
Optional Matching Parts for TK10632 32 Spline NP205 Front Output Shaft are:
TK50105 Front Output Ball Bearing
TK50356 Front Output Caged Needle Bearing
QU50185 Low Gear Bearing Rollers (use 4 packs of 16 each, 64 total needle roller bearings)
TK10514 4 Bolt Front Output Bearing Retainer Gasket
TK10604 8 Bolt Front Output, Rear Support Housing Gasket
TK20107 Front Output High Gear
TK10859 Front Output Low Gear
TK10661 or QU50339 Clutch Rings
QU10689 Low Gear Lock Ring
QU50359 Low Gear Bearing Spacer
TK10858 High Gear Thrust Washer
QU50256 Low Gear Thrust Washer
QU10316 Anti-Rotation Pin
QU10512 OR QK2036 Front Output Nuts
S9978 Threadlocker
Output Yokes and Seals: See our NP205 Web Page for choices!

Applications

Chevy and GMC
All NP205 EXCEPT 1982-1987 Synchronized Models: 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Dodge:
All Remote Mount NP205 Models: 1969, 1970, 1971, 1972, 1973, 1974, 1975
W250 with Dana 60 Front axle and Snow Plow Package, W350: 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
W250 with Cummins Diesel: 1989, 1990, 1991, 1992, 1993

Ford:
F-250 with Part Time Transfer Case: 1973, 1974, 1975, 1976, 1977, 1978, 1979
F100, F150 with 2 Speed Part Time Transfer Case: 1974, 1975, 1976, 1977, 1978, 1979
Bronco with Part Time Transfer Case: 1978, 1979

IHC:
1100 to 1400 Series Trucks: 1969, 1970, 1971, 1972, 1973, 1974, 1975
