QK1034 1992-1995 Chevy/GM 4X4 NV4500 Premium Rebuild Kit

QuadKit
No reviews yet Write a Review
$793.98
SKU:
1034
UPC:
198345000202
Condition:
New
Shipping:
Calculated at Checkout
In Stock & Ready To Ship!
Availability: Stocking Item, usually ships within 1-2 business days
Current Stock:Only left:

Description

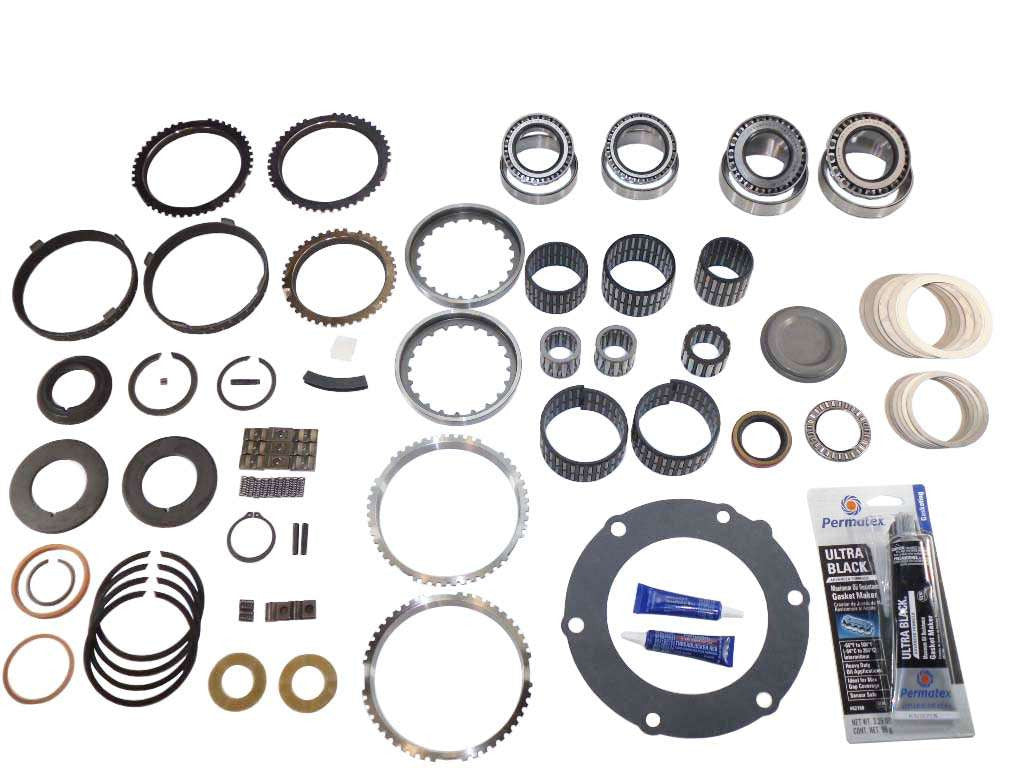

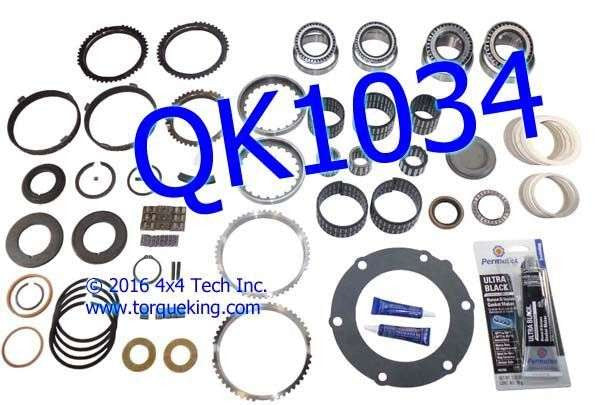

QK1034 Premium Rebuild Kit with 9 Synchro Rings for 1992-1995 Chevy/GM New Venture NV4500 4x4 5 speed manual transmissions. This Kit includes 9 OE Type Synchronizer Rings, complete Small Parts Kit, Mainshaft & Countershaft Shims, complete Bearing & Seal Kit featuring Timken™ & Torrington™ Bearings, Silicone Sealant, and 2 types of Threadlocker. This 4x4 Kit includes TK30052 Transmission to Transfer Case Gasket. Order Optional Tools from our NV4500 Tools Page. Almost all components are USA Made. Also available: Full Color TM1003 NV4500 Shop Manual.

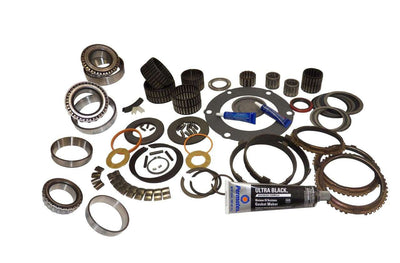

Need a Kit with just the 5 Friction Synchro Rings? See our QK1138 GM 4x4 Standard Rebuild Kit!

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Kit Components
Additional Parts for Specific Years/Models
NV4500 Tools
Applications

Tech Note 1: Kit Components
QK1034 Premium Rebuild Kit Includes:
Pads: (2) QU10164, QU10116 Center Pad
Shims: QA10008, QA10009
Seal: QU10126
Gasket: TK30052
Sealing Cap: QU10140
Taper Bearings: QU10143, QU10142, QU10145, QU10144, QU10125, QU10124, QU10118, QU10119
Synchronizer Rings: (2) QU10002, QU10003, (2) QU10004, (2) QU10014, (2) QU10015
Snap & Lock Rings: QU10300, QU10301, (4) QU10305, QU10312
Thrust Washers: QU10302, QU10303, QU0304
Springs & Struts: (4) QU10307, (9) QU10308, (9) QU10309, (4) QU10318
Bearing Spacers: QU10313, QU10314
Washers: (2) QU10315
Pins: (2) QU10316, (2) QU10317, QU10311
Needle Bearings: (2) QU10018,  QU10058, QU10133, QU10134, QU10135, QU10141, (2) QU10055 - May be either single split or dual split. Both styles are interchangeable.
Sealants & Threadlockers: S24200, S24026, QU90006

Tech Note 2: Additional Parts for Specific Years/Models
1992-1995 Shift Inhibitor: The 1-2 shift inhibitor springs and weights are not included with this Kit due to a very limited supply of these parts. While supplies last, you can purchase these parts separately as needed:
QU10331 Shift Inhibitor Weight (4 used)
QU10332 Round Spring (1st Gear Side)
QU10333 Square Spring (2nd Gear Side)
1992-1995 Backup Light Switch Gasket: Optional, order QU10147

Tech Note 3: NV4500 Tools
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated NV4500 Rebuild Manual.

You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.

TOOLS for SPECIFIC NV4500 MODELS

Component 23 Spline
Dodge 4x4
NV4500LD
29 Spline
Dodge 4x4
NV4500HD
30 Spline
Dodge 4x2
NV4500LD
31 Spline
Dodge 4x2
NV4500HD
32 Spline
GM 4x4
35 Spline
GM 4x2
Mainshaft Nut QT2002 QT2001
QT2036
QT2002 QT2001
QT2036
QT2002
QT2028
1-1/2" Hex
Socket
Mainshaft Holding NLA QT2000 NLA QT2011 N/A N/A
5th Gear Nut
Torx® Cross Bolt
N/A QT9205 N/A QT9205 N/A N/A
Output Seal Installer N/A QT1801 N/A QT2058
CALL
Not Used Not Used
Tailshaft Bushing Remover and Installer Not Used Not Used Not Used QT2044 Not Used Not Used

TOOLS For ALL NV4500 MODELS

Countershaft
Front Bearing Cup Installer
QT1802 Use with QT1101 or QT1119 Driver Handle. Also can use flat side to install Dodge 4x4 Rear Output Seal
Countershaft Front Bearing Installer QT2004 Can also use to press 3-4 Synchro Hub on original equipment mainshafts
Input Bearing & Countershaft Rear Bearing Installer QT2005 Can also use to install Input Seal
Input Bearing Cup Installer QT1801 Use with QT1100, QT1101, QT1116, or QT1119 Driver Handle.
Countershaft Support QT2006 Use to support front of countersahft when installing countershaft rear bearing
1-2 Synchronizer Support QT2008 Use to support 1-2 synchronizer hub during synchronizer assembly
10mm 1/2" Drive 12 Point Socket QT1020 USA Made Impact Socket for Factory Tailshaft Housing Bolts
Long Shank Punch for Shift Lug QT9300 3/16" x 8" Shank for 5th Gear Shift Lug Roll Pin



Applications:
Chevy and GMC:
All GM NV4500 4x4 Transmissions: 1992, 1993, 1994, 1995
