QU10301 NV4500 Mainshaft 3rd Gear Snap Ring

New Venture-MPT
No reviews yet Write a Review
$5.98
SKU:
10301
UPC:
198345390181
Condition:
New
Shipping:
Calculated at Checkout
In Stock & Ready To Ship!
Availability: Stocking Item, usually ships within 1-2 business days
Current Stock:Only left:

Description

QU10301 NV4500 Mainshaft 3rd Gear Snap Ring for all 1992-2007 New Venture NV4500 5 speed manual transmissions.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Product Note
Small Parts Kits
Lubricants, Sealants, Threadlockers
NV4500 Tools

Applications

Tech Note 1: Product Note
QU10301 is called the "3rd Gear Snap Ring", but it could also be called the 2nd Gear Snap Ring since it retains QU10302 thrust washer that holds second gear in place.

Tech Note 2: Small Parts Kits

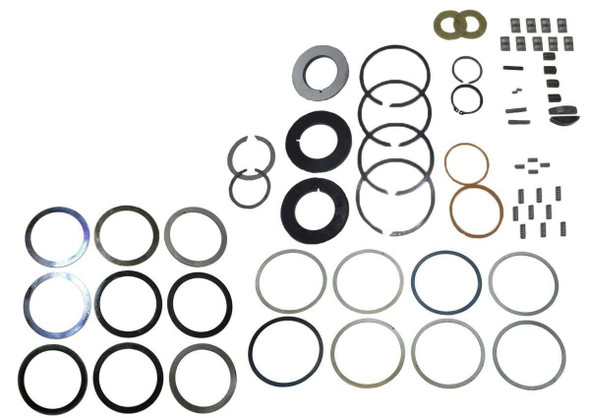

Included and optional parts for Main Case Small Parts Kits

Component Part
Number
Sub Kit QU10221
Basic Kit
QA1174
TKA1179

Main Case Kit
Less Shims
QK1010
Master Kit

With Shims
 Master Countershaft
 Shim Kit
QA10008
 Basic Countershaft
 CS Shim Kit
QU10008B    √   NR
 Master Mainshaft
 Shim Kit
QA10009
 Basic Mainshaft
 Shim Kit
QU10009B    √   NR
 Snap Ring
 Reverse Clutch
QU10300 QK1102  √  √  √
 Snap Ring
 3rd Gear
QU10301  QK1102 √   √  √
 Thrust Washer
 3rd Gear
QU10302 QK1104   √   √
 Thrust Washer
 Reverse Gear
QU10303 QK1104    √  √
 Thrust Washer
 Countershaft
 5th Gear
QU10304 QK1104   √   √
 (4) Snap Rings
 1-2 Synchro
QU10305 QK1103  √  √  √
 Snap Ring, 1st
 Design CS 5th
QU10306 QK1102 √   √**  √
 (4) Synchro
 Strut 1st-2nd
QU10307 QK1100    √  √
  (9) Synchro
 Strut R, 3, 4
QU10308 QK1099   √   √
 (9) Synchro
 Spring R, 3, 4
QU10309 QK1099    √
 (2) Key, Gear
 1992-1994
 Countershaft
QU10310 QK1129  √  √** √
 Pin, 5th Gear
 Shift Lug
QU10311 QK1109    √ √
 Snap Ring, 2nd
Design CS 5th
QU10312 QK1102  √  √  √
 Spacer, Teflon
 3rd Gear
QU10313 QK1098 √   √ √
 Spacer, Teflon,
 Reverse Gear
QU10314 QK1098  √*  √  √
 (2) Thrust Washer
 Reverse Idler
QU10315 QK1101  √  √
 Pin, Solid Rev &
 5th Thrust Washer
QU10316 QK1110    √  √
 (2) Pin, 5th Gear
w/Mushroom Head
QU10317 QK1109   √  √
 (4) Synchro
 Spring 1st-2nd
QU10318 QK1100    √  √
 Snap Ring, Rear
 Bearing GM 4x2
QU10319
 Snap Ring, 4x2
 Speedo Gear
 1994-1997
 Dodge NV4500HD
QU10330
 (4) Block, Shift
 Inhibit 1992-1994
QU10331 QK1085
 Spring, Shift
 Inhibit 1992-1994
QU10332 QK1085
 Spring, Shift
 Inhibit 1992-1994
QU10333 QK1085
 Shift Pad Kit, Early
 Reverse Fork
QK1094
 Shift Pad Kit, Late
 Reverse Fork
QK1095
*Has metal instead of Teflon Spacer
**Included with QA1174, NOT included with TKA1179



Tech Note 3: Lubricants, Sealants, Threadlockers
Early production NV4500 Transmissions used an anaerobic sealant (QU90003) to seal between the main case and input bearing retainer, top cover, and rear housing. Mid-production units used anaerobic sealant just on the input retainer and RTV for everything else. Later production transmissions used black RTV Sealant (QU90006 or QU90005) for everything. Either type of sealant works fine (except the PTO covers ALWAYS should be sealed with RTV), but I prefer RTV for all components. Regardless of which sealant you use, make sure excess sealant does not block the lube access hole at the top of input retainer pilot that fits into the transmission case. Also, the threaded holes in the main case for the four retainer bolts and 12 PTO bolts are open ended, so you must use new bolts with factory applied threadlocker or apply Threadlocker (S24200) to your existing bolts to prevent oil seepage past the bolt threads. See my TM1003 NV4500 Shop Manual or VSG1003DVD NV4500 Overhaul Video for more information.

Lubricant and Chemical List for NV4500 Transmissions
QU90020 NV4500 Manual Transmission Oil
QU90003 Anaerobic Sealant
QU90006 3.35 oz Ultra Black RTV Sealant
QU90005 0.5 oz Ultra Black RTV Sealant
S24200 6ml Threadlocker
S9978 1 gram Threadlocker
QU90003 Anaerobic Sealant
QU90006 3.35 oz Ultra Black RTV Sealant
QU90005 0.5 oz Ultra Black RTV Sealant
S24200 6ml Medium Strength Blue Threadlocker
S9978 1 gram Medium Strength Blue Threadlocker
S9979 1 gram High Strength Red Threadlocker
S24026 High Temperature Threadlocker for Mainshaft Nut

Tech Note 4: NV4500 Tools
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated TM1003 NV4500 Rebuild Manual.

You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.

TOOLS for SPECIFIC NV4500 MODELS

Component 23 Spline
Dodge 4x4
NV4500LD
29 Spline
Dodge 4x4
NV4500HD
30 Spline
Dodge 4x2
NV4500LD
31 Spline
Dodge 4x2
NV4500HD
32 Spline
GM 4x4
35 Spline
GM 4x2
Mainshaft Nut QT2002 QT2001
QT2036
QT2002 QT2001
QT2036
QT2002
QT2028
1-1/2" Hex
Socket
Mainshaft Holding NLA QT2000 NLA QT2011 N/A N/A
5th Gear Nut
Torx® Cross Bolt
N/A QT9205 N/A QT9205 N/A N/A
Output Seal Installer N/A QT1801 N/A QT2058
CALL
Not Used Not Used
Tailshaft Bushing Remover and Installer Not Used Not Used Not Used QT2044 Not Used Not Used

TOOLS For ALL NV4500 MODELS

Countershaft
Front Bearing Cup Installer
QT1802 Use with QT1101 or QT1119 Driver Handle. Also can use flat side to install Dodge 4x4 Rear Output Seal
Countershaft Front Bearing Installer QT2004 Can also use to press 3-4 Synchro Hub on original equipment mainshafts
Input Bearing & Countershaft Rear Bearing Installer QT2005 Can also use to install Input Seal
Input Bearing Cup Installer QT1801 Use with QT1100, QT1101, QT1116, or QT1119 Driver Handle.
Countershaft Support QT2006 Use to support front of countershaft when installing countershaft rear bearing
1-2 Synchronizer Support QT2008 Use to support 1-2 synchronizer hub during synchronizer assembly
10mm 1/2" Drive 12 Point Socket QT1020 USA Made Impact Socket for Factory Tailshaft Housing Bolts
Long Shank Punch for Shift Lug QT9300 3/16" x 8" Shank for 5th Gear Shift Lug Roll Pin



Applications

Chevy and GMC:
All with New Venture NV4500 Transmission: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

Dodge and Ram:
All with New Venture NV4500 Series Transmissions: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
