Description
DISCONTINUED

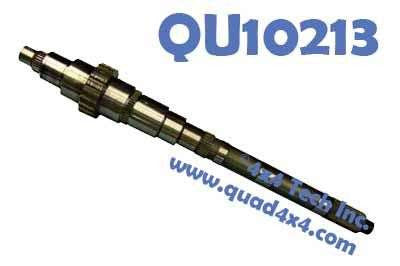

QU10213 GM 4x2 35 Spline Heavy-Duty Genuine New Venture NV4500 Mainshaft fits all fixed yoke, heavy-duty, GM 4x2 NV4500 Transmissions in 1999-2007 Export market cab and chassis trucks. These transmissions have cast iron tailshaft housings and are equipped with a Transmission Mounted Parking Brake. These strong, well machined, new takeout shafts are from brand new transmissions we cannibalized for parts. Approximate length: 25" long.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Specs
Applications
Tech Note 1: Specs
QU10213 is a 4x2 35 spline mainshaft that differs from the more common QU10212 by the having slightly larger fifth gear, speedo spacer, and mainshaft spacer dimensions. QU10213 is no longer available, but it can be replaced by QU10212 if you also replace the 5th gear, speedometer spacer, and mainshaft spacer.
QU10213 Specifications and Approximate Dimensions:
Overall Length: 25-1/4"
Output Spline: 1-1/2" x 35
3-4 Synchro Hub Spline: 1.45" x 28
1-2 Synchro Hub Spline: 3.365" x 20
Reverse Clutch Spline: 2.285" x 45
Applications:
Chevy/GMC:
Export Market Cab and Chassis Trucks with Fixed Yoke, Heavy-Duty, 4x2, New Venture NV4500 Transmissions: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
