2000-2002 Ram Dana 60 Axle Identification


All 2000-2002 Dana 60 Front Axles in Dodge Ram 2500 and Ram 3500 trucks had a Bill of Material Number (BOM) stamped on a Axle ID Build Tag attached to the differential by two of the differential cover bolts when the vehicle was shipped from the factory but, unfortunately, these tags are often missing on trucks that had prior differential service. The BOM number is a 6 digit number beginning with a 6 plus a dash number (ex: 611223-1). They can be used to determine not only the axle model, but also what components the axle was originally built with. We often ask for this number to insure we provide you with the exact parts you need for your truck.

Each different BOM number signifies an engineering part change which may be minor or major and may involve one or more parts. The dash number indicates the axle ratio. For 2000-2002 Ram 2500 and 3500 trucks built for civilian use, 3.54 ratio is a -1, 4.10 ratio is -2.

2000 and 2001 axles all had a vacuum controlled Central Axle Disconnect (CAD) actuator located at the center of the right axle tube. 2002 model year vehicles were built both with and without CAD. The Cad and non-CAD axles use the same differential components, hubs, knuckles, and left axle shaft.

Ram 2500 Bill of Material Numbers by Year
2000: 610836, 610837, 610941, 611075, 611076, 611054, 611055
2001: 611054, 611055, 611153, 611154, 611173, 611176
2002: 611153, 611173, 611175, 611176 ,611185, 611223, 2002 (listing incomplete)
 Ram 3500 Bill of Material Numbers by Year
2000: 610838, 610942, 611058, 611077, 611056
2001: 611056, 611155, 611153, 61117,
2002: 611174, 611186, 611223, (2002 listing incomplete)
 Military Air Force Tow Vehicle Bill of Material Numbers.
All have 7.17 ratio gear sets

2000: 610899, 611059
2001: 611059
2002: (none listed)
2000-2002 Ram Dana 60 Axle Identification

Sort By:

Display Type:
Filters
  • Product
  • Qty in Cart
  • Quantity
  • Price
  • Subtotal
  • Dana 60 Specs 2000-2002 Dodge Ram 2500, 3500 IDN-113 Torque King 4x4
    Quick view

    Dana 60 Specs 2000-2002 Dodge Ram 2500, 3500 IDN-113

    $0.00

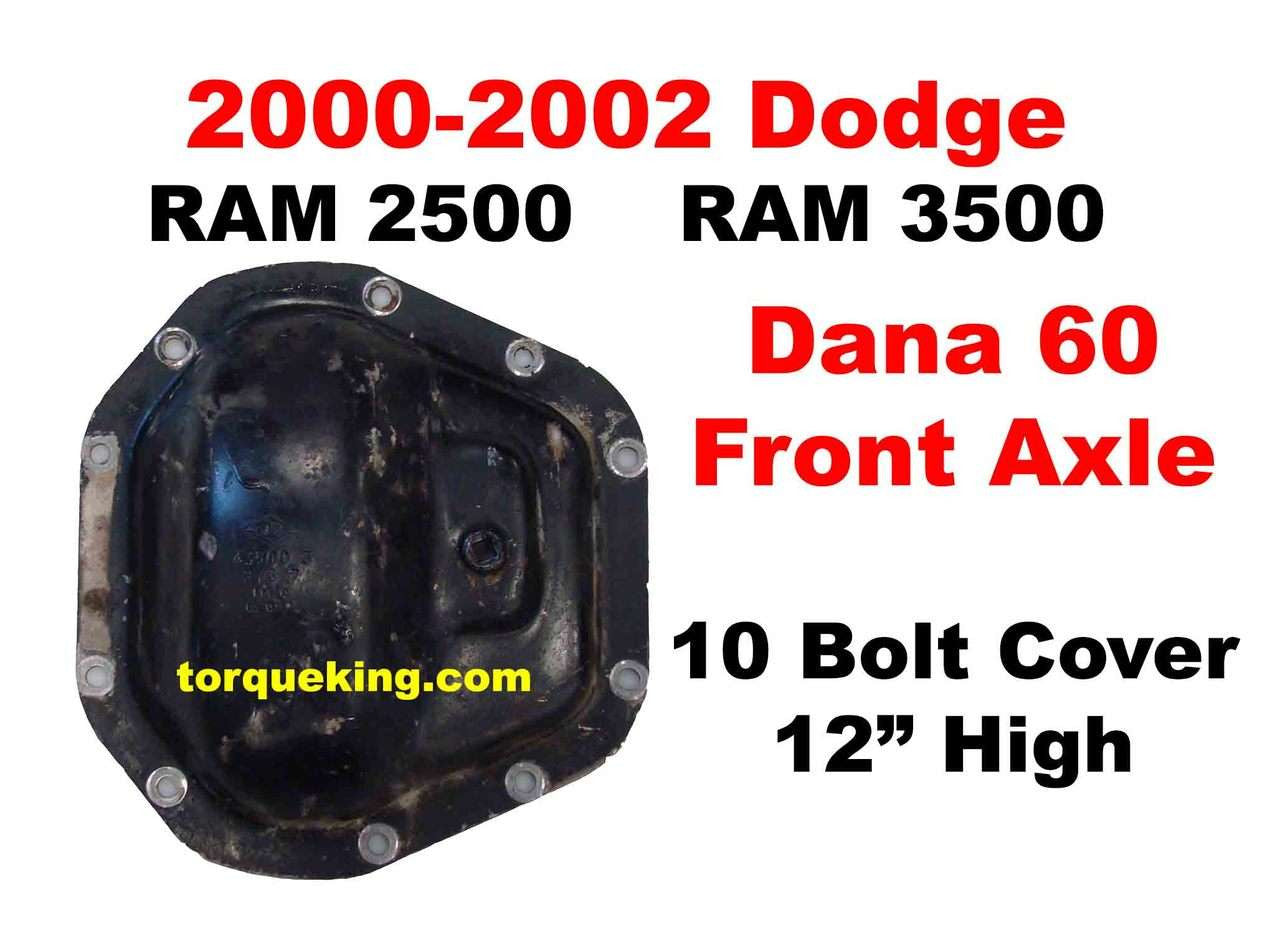

    2000-2002 Dodge Dana 60 Front Axle Base Specs:Anti-Lock Brakes: (optional), 2000-2002: ABS sensor is internal, reading off tone ring inside the wheel hub assembly. Cover: 10 Bolt, 12" high Ring Gear: 9-7/8", 12 Bolt Suspension: Coil...
    Qty in Cart: 0
    Price:
    $0.00
    Subtotal:
  • Dana Axle ID Tag IDN-100 Torque King 4x4 Dana Axle ID Tag IDN-100 Torque King 4x4
    Quick view

    Dana Axle ID Tag IDN-100

    $0.00

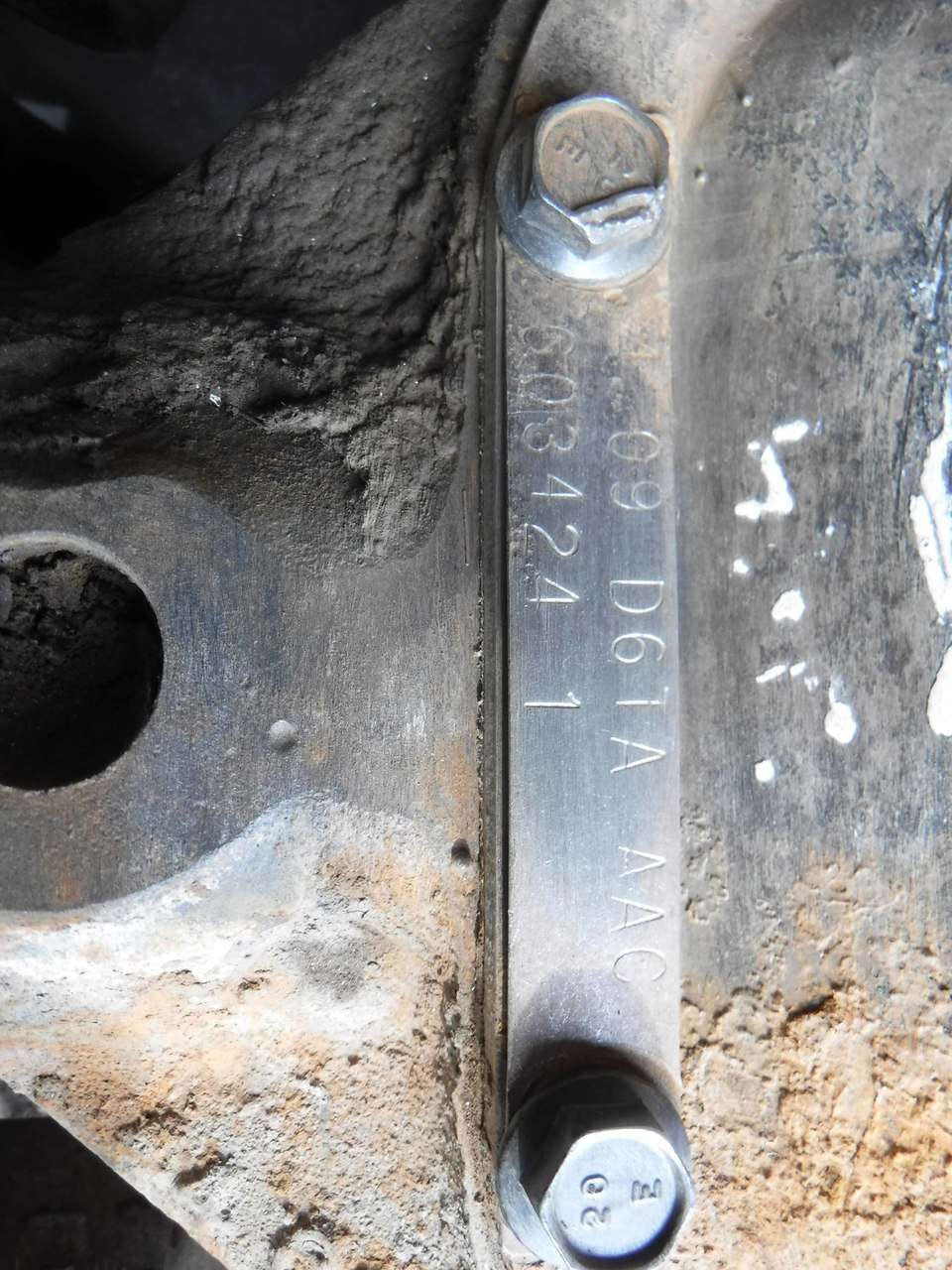

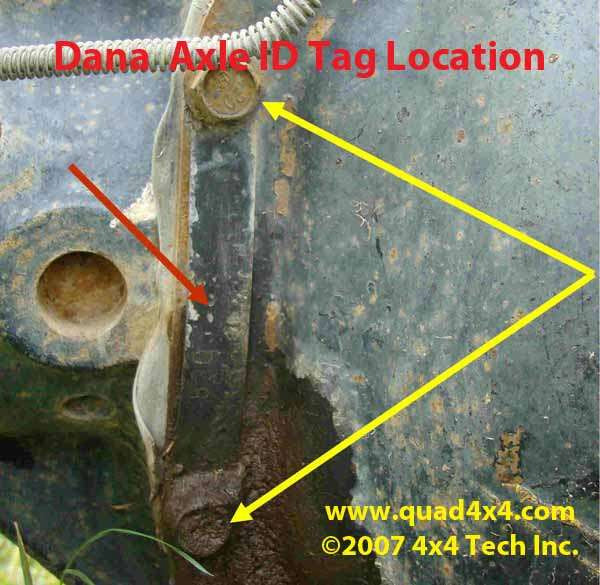

    Starting around 1965, Dana started using metal tags affixed to the differential cover by two of the cover bolts. Each tag has a Bill of Material Number (BOM) stamped on it and it is affixed to the axle before it is shipped from the factory. The photo...
    Qty in Cart: 0
    Price:
    $0.00
    Subtotal:
