New Ford NV273F Transfer Case Exploded Views - Shop the FAST and EASY way!
New, Easy-to-Use, Interactive Ford Super Duty and Excursion Transfer Cases Exploded Views are connected right to our parts database so you can shop for the parts you need all in one place! We recently added 4 new exploded views to our website - all specific to application so there is NO GUESSWORK! All of our Exploded Views come with complete case parts exploded views, recommended tools, available kits, maintenance information, torque specs, and more!
XV4041 1999-2002 Ford NV273F Transfer Case Exploded View
XV4046 2003-2004 Ford NV273F Transfer Case Exploded View
XV4047 2005-2007 Ford NV273F Transfer Case Exploded View

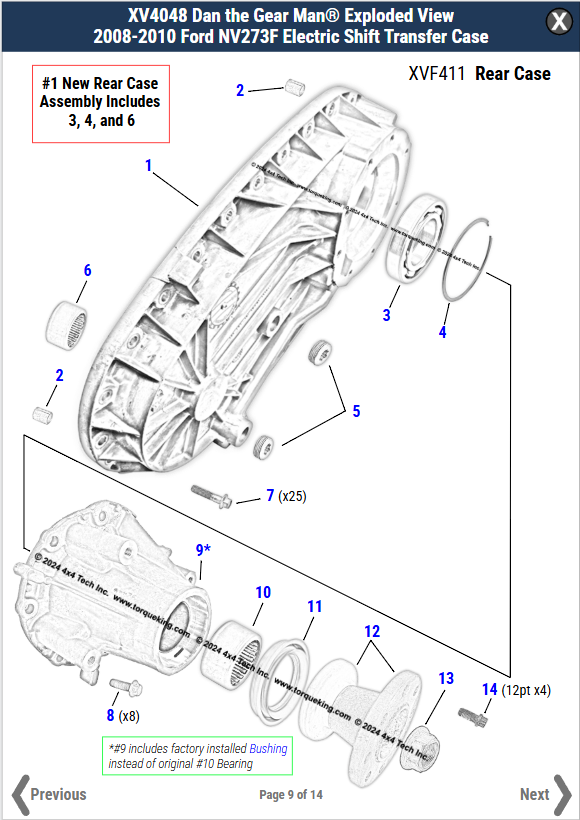

XV4048 2008-2010 Ford NV273F Transfer Case Exploded View
