Description

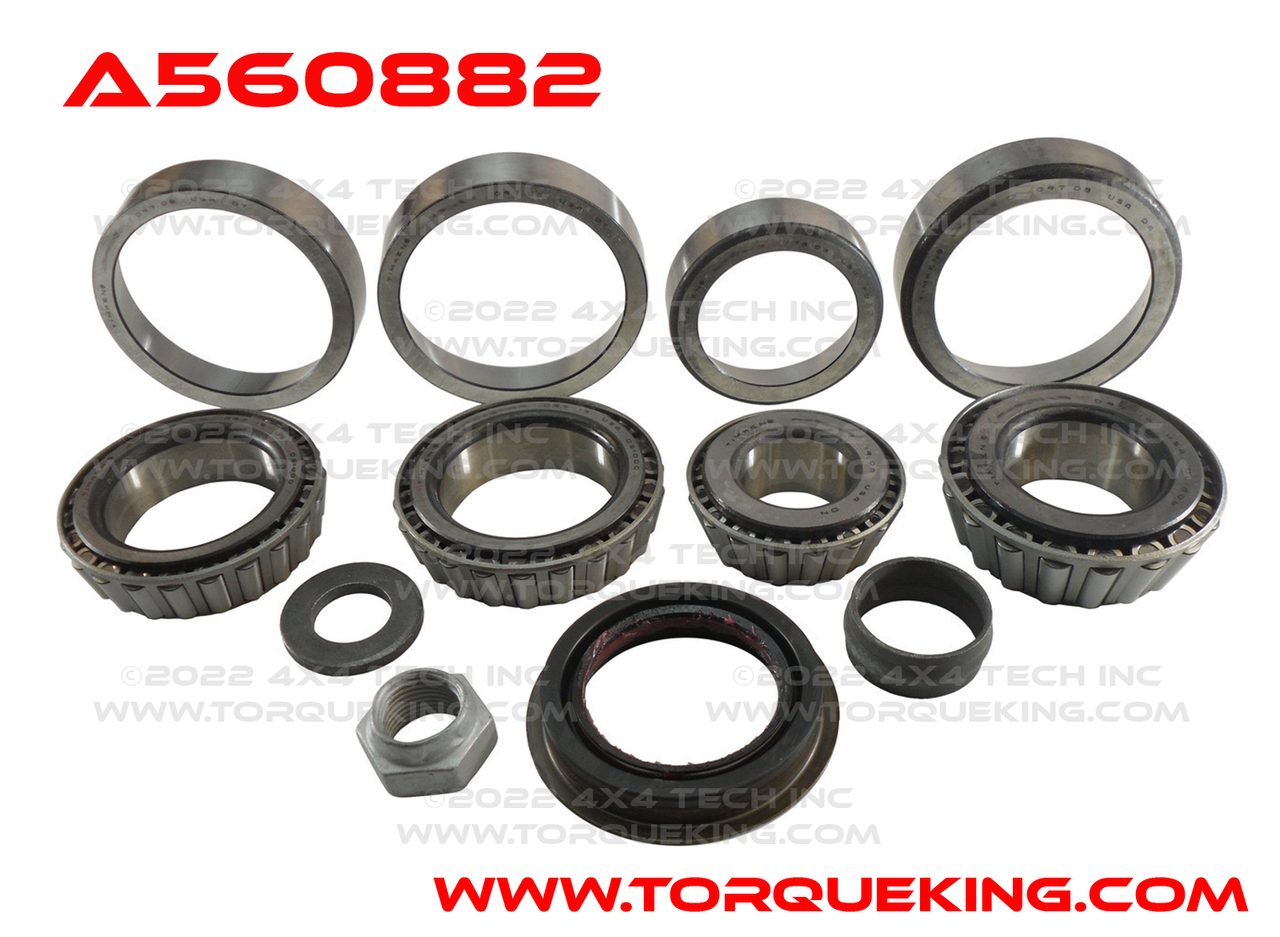

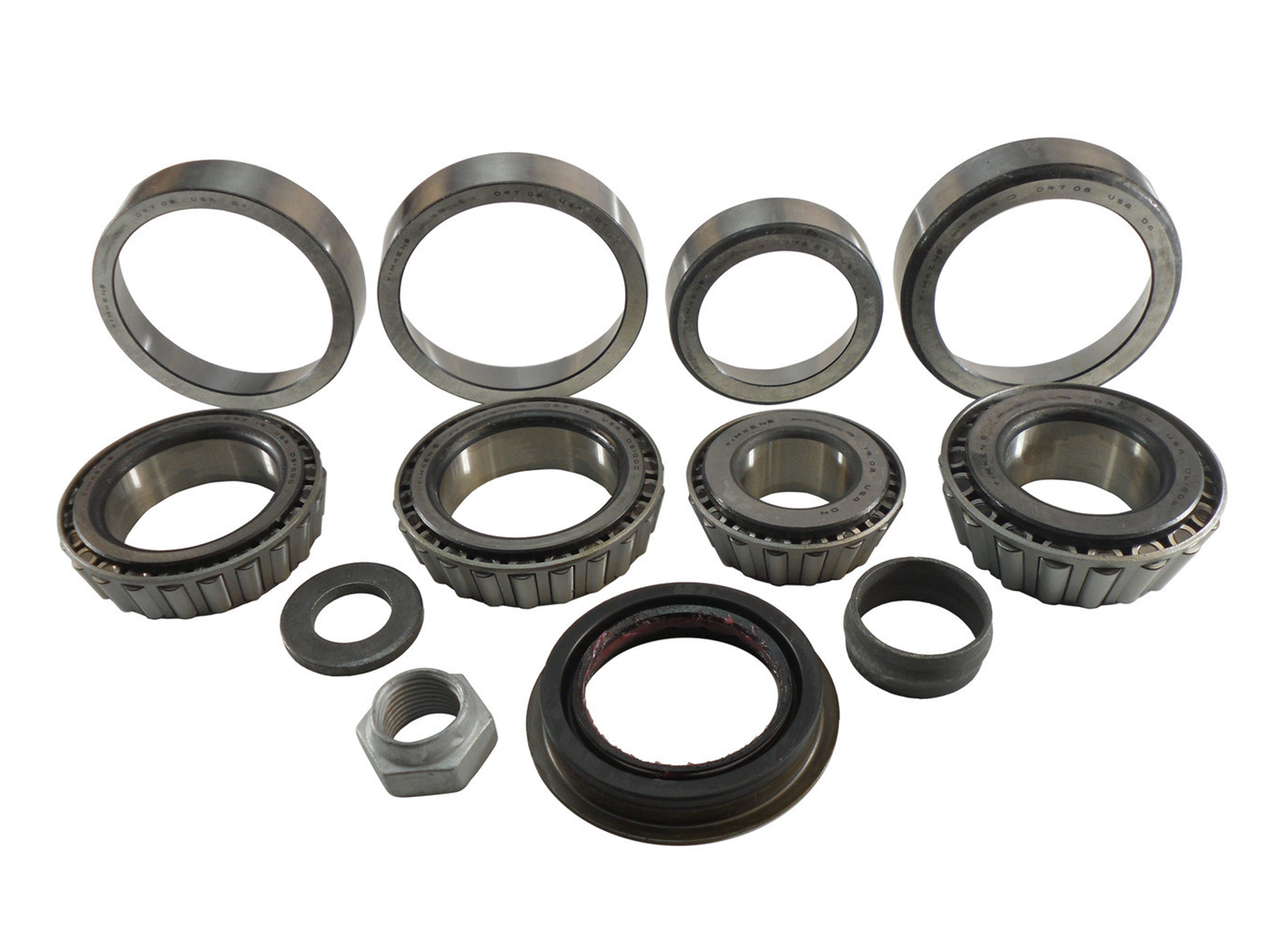

A560882 AAM Master Front Differential Bearing and Seal Kit for Ram 4x4s is a genuine AAM Service Kit that fits both 2003-2013 AAM 9-1/4" 14 Bolt and 2013-current AAM 9-1/4" 12 Bolt front axles in Ram 2500, 3500 and 2004-2010 Ram 1500 Mega Cab. A560885 features first-class Timken® Differential and Pinion Bearings, plus Pinion Nut, Crush Sleeve, Pinion Washer and Pinion Seal. NOTE: Kit does NOT include axle shaft seals!
For Dodge, also see TK4880 Master Diff Bearing and Seal Kit
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Kit Includes
Applications
 |
QU10865 9.25 AAM Pinion Seal |
 |
QU10862 Crush Sleeve (Collapsible Pinion Preload Spacer) |
 |

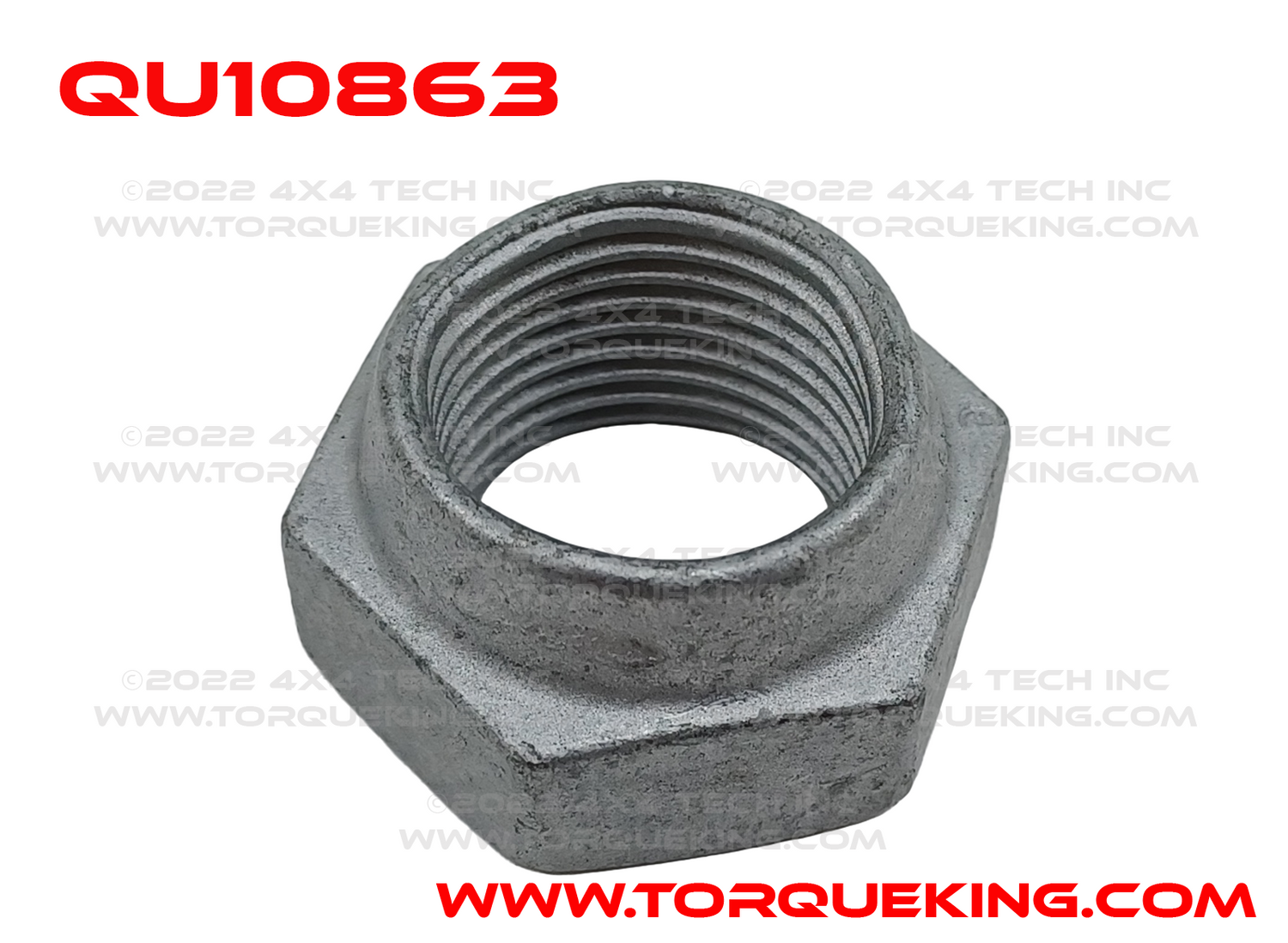

QU10863 Pinion Nut |
 |
QU10864 Pinion Yoke Washer |
 |
QU50539 Outer Pinion Bearing Cup |
 |
QU50540 Outer Pinion Bearing |
 |
QU12017 Inner Pinion Bearing Cup |
 |
QU50548 Inner Pinion Bearing |
 |
(2) QU50546 Differential Side Bearing Cup |
 |
(2) QU50547 Differential Side Bearing |
Tech Note 2: Matching Parts
Matching Parts for QK8018 Differential Bearing Set:
QU11106 Pinion Seal Wear Sleeve
QU11108 Ring Gear Bolt (replace Ring Gear Bolts any time you remove the ring gear from the diff case)
QU11107 Pinion Depth Shim Kit
QU10965 Differential Cover Gasket for 2003-2013 14 Bolt
A560679 Differential Cover Pan Gasket for 2013-up 12 Bolt
QU10945 Inner Axle Shaft Oil Seal (2 Required)
QK4685 Inner Axle Seal Kit with Install Tools
QU10861 Hub to Knuckle Bolts
QU11103 Diff Cover Bolts
QU10602 Lock Nut for Steering Linkage Ends
QK4732 Axle Shaft Nut and Washer Kit
QT1074 Inner Pinion Bearing Installer
QT1812 Outer Pinion Bearing Cup Installer
QT1816 Inner Bearing Cup Installer
Threadlocker for the Hub to Knuckle Bolts, Caliper Anchor Plate Bolts, and Diff Cap Bolts
Anti-Seize Compound to apply to the hub and knuckle mating surfaces
Disc Brake Lube for the brake hardware contact points
Dielectric Grease for the ABS brake wire electrical connection
Pyroplex Synthetic Grease for the outer axle shaft splines and threads
Applications:
Dodge:
Ram 2500: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Ram 3500: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Ram 1500 Mega Cab: 2004, 2005, 2006, 2007, 2008, 2009, 2010
