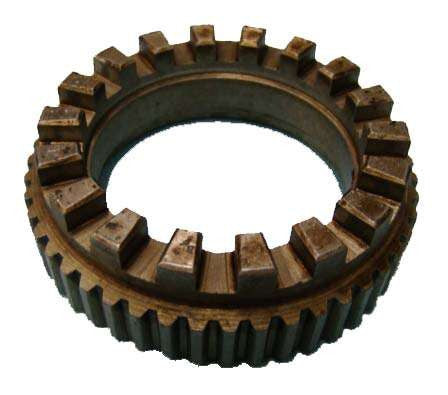

QU20114 Spicer Hub Clutch Gear

QU20114 Spicer Hub Clutch Gear is a New Old Stock (NOS) genuine Dana-Spicer part for Chevy, Ford, and GMC Dana 44 or closed knuckle Dana 60 front drive axles with external mount plastic dial Spicer factory hubs that mount to the wheel hub with (6) long 3/8" Allen Head Bolts.

Also available while supplies last: QU20114U Used

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Limited Availability
Matching Parts
Applications

Tech Note 1: Limited Availability
Spicer made external mount Plastic Dial free-wheel Hub-Locks for 1972-1977 3/4 ton 4x4s. These Hubs were the factory original equipment parts for both Ford and GM 3/4 ton 4x4 trucks with Dana 44 front axles. They were also used on Ford F-250 Crew Cab trucks with Dana 60 closed knuckle front axles from 1974-1975. Most parts for these hubs have been out of production for decades, so parts availability is becoming quite limited.

Tech Note 2: Matching Parts
Matching Parts for QU20114 Hub Gear are:
QU40547 Axle Shaft Gear
QU40032 Axle Shaft Snap Ring
QU40546 Outer Chrome Cap
QU40547 Splined Hub Body
TK40256 Hub Dial
TK40471 Dial Sealing Ring
QU40406 Hub Cam
QU40257 Hub Bolt
QU40231 Sealing Washer
QU40395 Metal Inner Hub Gasket
TK40573 Outer Fiber Hub Gasket

Applications

Chevy/GMC 3/4 ton 4x4:
K20, K25: 1972, 1973, 1974, 1975, 1976

Ford F-250 3/4 ton 4x4:
Closed Knuckle Dana 44HD 3500# Axle: 1972, 1973, 1974, 1975
Open Knuckle Dana 44 Axle with 6 Bolt External Mount Spicer Hub: 1976, 1977, 1977.5
Crew Cab with Dana 60 Closed Knuckle Axle: 1973, 1974, 1975
