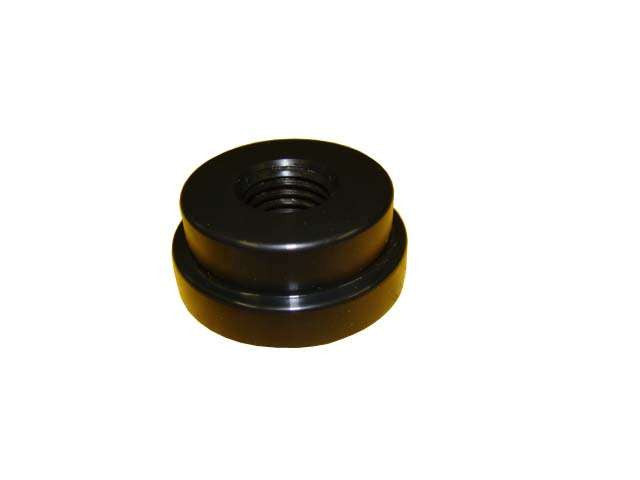

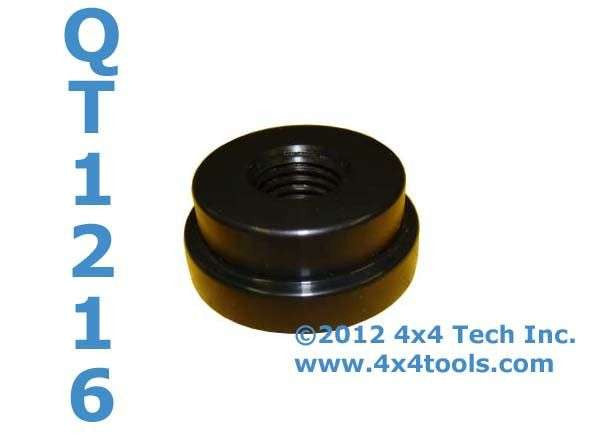

QT1216 2.25" Axle Seal Remover

QT1216 2-1/4" Front Axle Shaft Oil Seal Remover is used in conjunction with our TS4863 Handle Set to remove the front inner axle shaft oil seals from many late model 4x4 trucks with solid front drive axles. QT1216 measures a bit under 2-1/4" Outside Diameter, so it will work in all axles with axle tube inside diameters of 2.25" and larger. Maximum seal ID 2". This remover is primarily made to remove the large bore, right side inner axle seal on 2000-2002 Dodge Ram 2500 and Ram 3500 trucks with vacuum controlled Central Axle Disconnect (CAD). It will also work on all to remove the left seals on the same model trucks, plus either seal on all 2002 and newer Dodge Ram 2500 and Ram 3500 models and all 2005 and newer Ford Super Duty® F-250, F-350, F450, and F-550 4x4s. USA Made.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Axle Seals
Use Proper Tools
Other Tool Sizes
Oil Seal Remover Tool Sets
Applications

Tech Note 1: Axle Seals
Most inner axle seals are located right next to the differential and are impossible to replace without disassembling the axle up to and including the differential. Once everything except the pinion gear is removed, you drive the seals inward until they drop into the housing.

Tech Note 2: Use Proper Tools
Once the seals are removed, you need to clean any dirt, grit or crud out of the diff housing and axle tubes. After that, you can install your new seals. Seal installation is best done with our tooling made for your specific application. Sometimes you can get by with makeshift installers you cobble together, but in most cases, using makeshift tools just guarantees you get to do the job all over again.

Tech Note 3: Other Tool Sizes
Besides QT1216, Our currently available attachments are:
QT1144: Fits axle tube inside diameters of 1.75" and larger. Max seal ID with rubber lip seals is 1.5", max seal diameter with oil bath type seal is 1-9/16" (used on Ford Excursion and Super Duty® Model 50 and 60 monobeam axles from 1999 to 2004). This remover fits most Model 30, Model 44, and GM 10 Bolt front axles. The outside diameter is made to fit through the inner plastic axle guides used on 1999-2004 Ford Super Duty and 2000-2005 Ford Excursion.
QT1214: Fits axle tube inside diameters of 2.00" and larger. Max seal ID 1-3/4". This remover fits most Model Model 44, Model 50, Model 60, Model 61, Model 70, AAM 925, and GM 10 Bolt front axles with 3" or larger outside diameter axle tubes.
For Smaller Axles: For axle tube diameters between 1.50" and 1.75", you just use QU95007 nut as the remover.

Tech Note 4: Oil Seal Remover Tool Sets
Our Front Axle Shaft Oil Seal Remover Tool Sets are:
QK4647: Includes TS4863 Rod Assembly and QT1144 Remover (Most smaller axles plus Ford Excursion and 1999-2004 Super Duty®)
TS1184: Includes QT1145 Rod, QU95007 Nut, and QT1214 Remover (Specific Kit for most Dodge with CAD)
TS4862: Includes TS4863 Rod Assembly and QT1214 Remover (Most larger axles except 2000-2002 CAD equipped Ram 2500 and Ram 3500 or Ford Excursion and 1999-2004 Super Duty®)

Applications
Solid beam 4x4 front drive axles with inside tube diameters of 2.25" or larger
