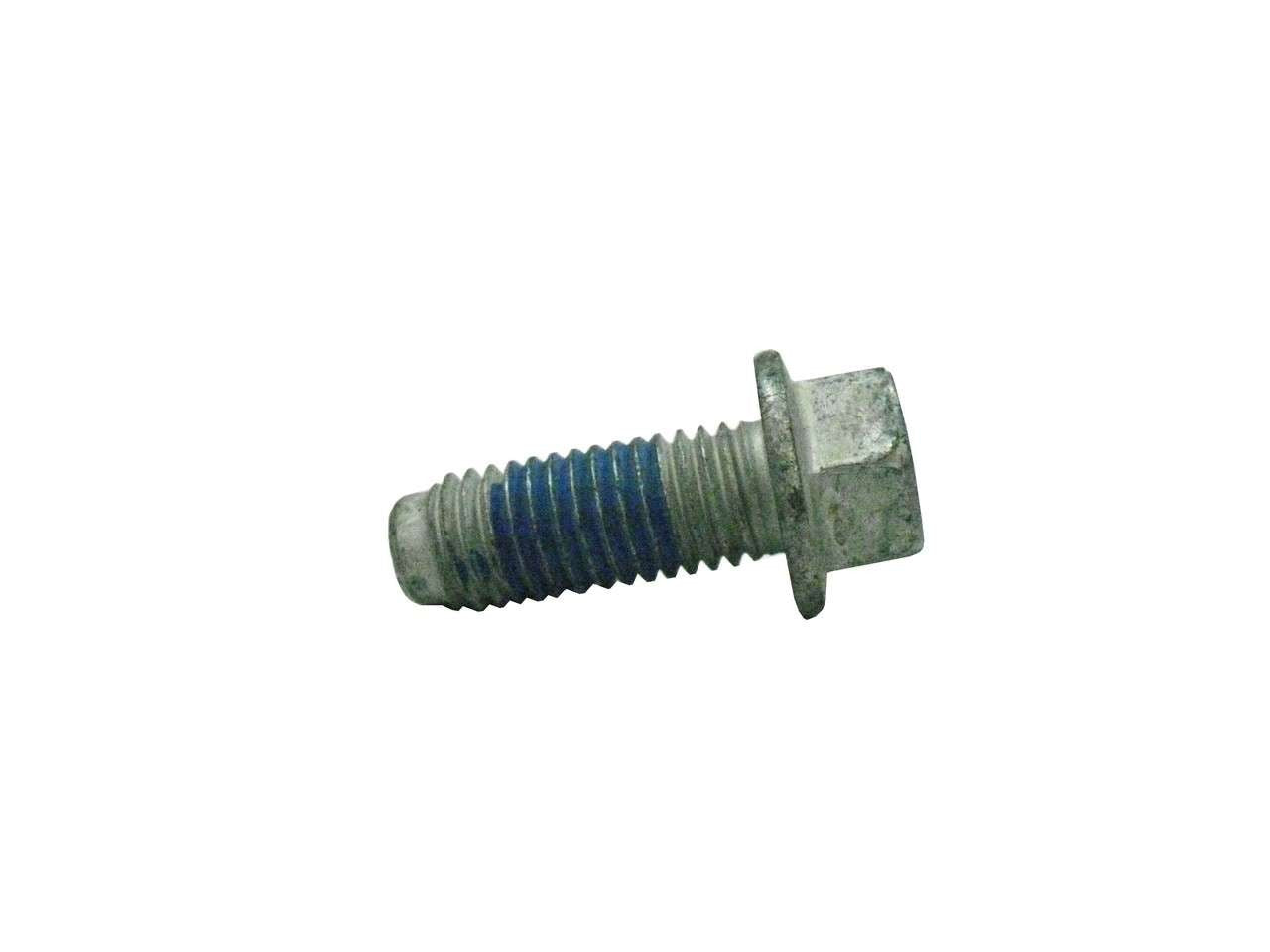

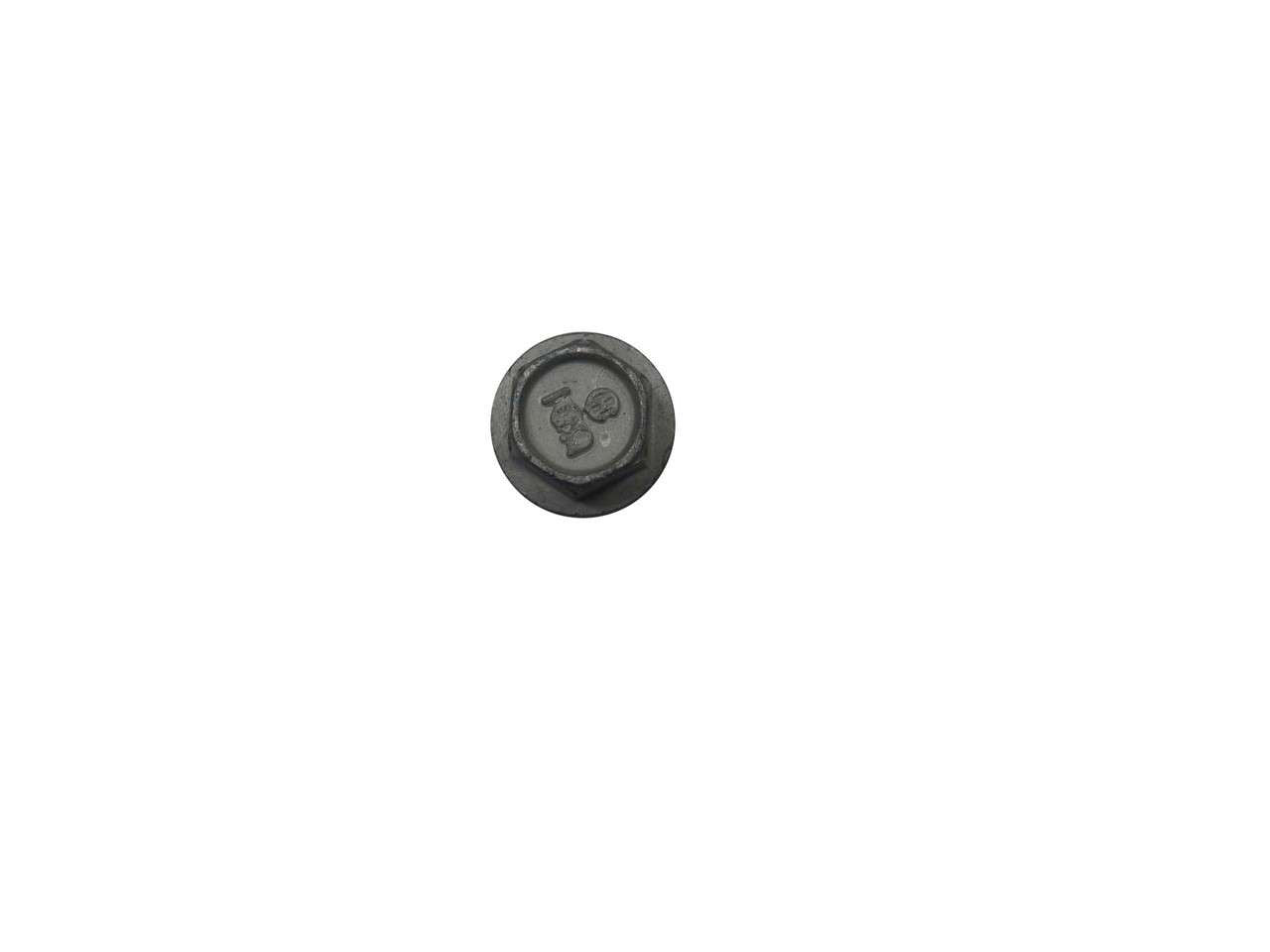

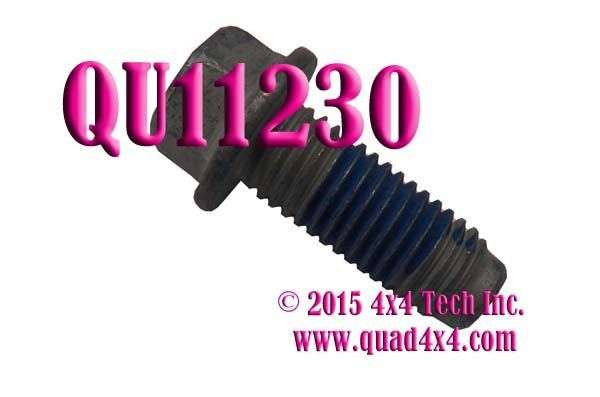

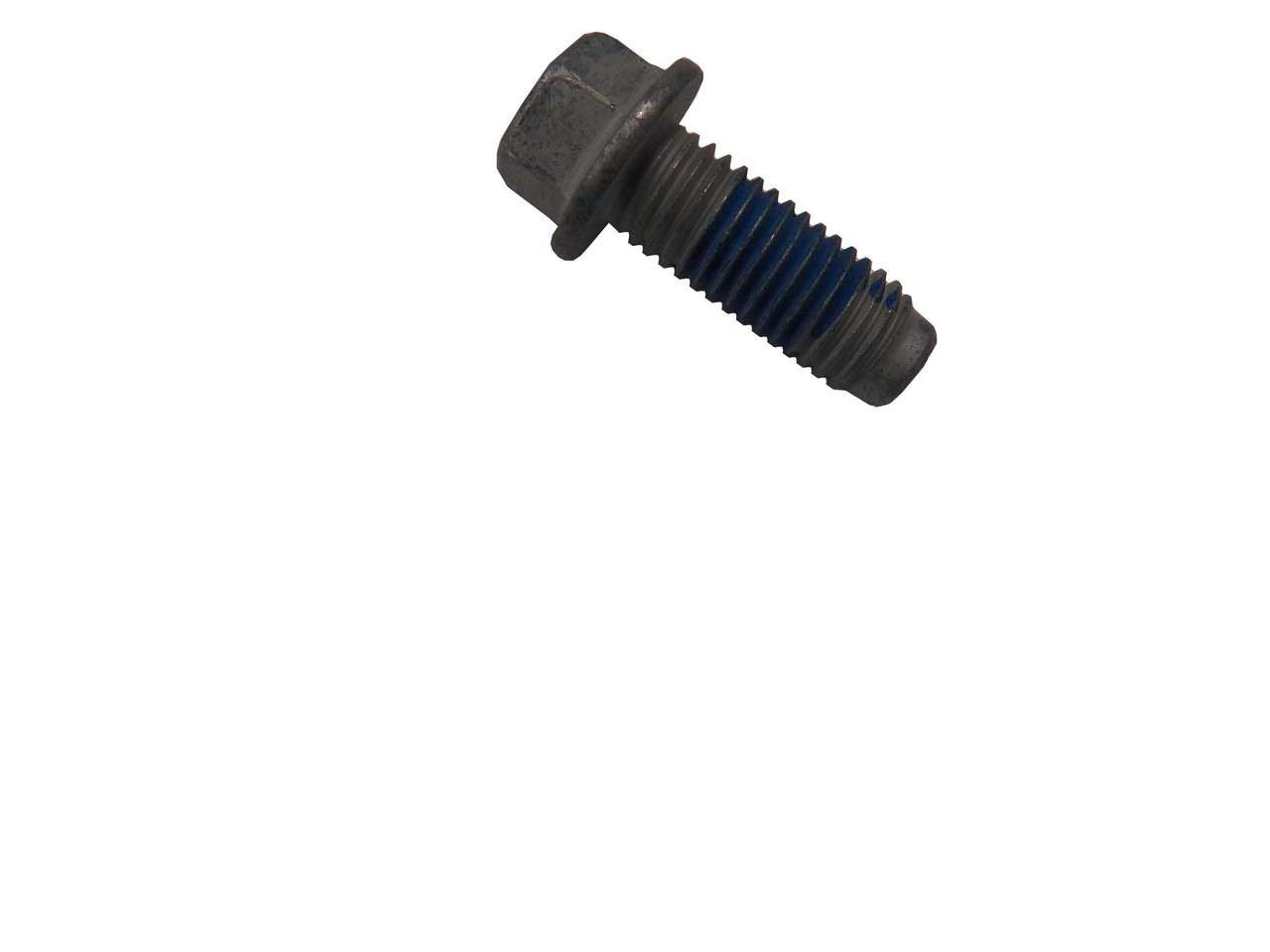

QU11230 Driveshaft to Pinion Flange or Transfer Case Flange Head Bolt

QU11230 2003-up Ram Driveshaft to Pinion Flange or Transfer Case Flange Head Bolt is a hardened, Grade 10.9 Metric Flange Head Bolt for 2003-2019 Dodge/Ram, Ram 2500, Ram 3500, Ram 4500, Ram 5500 plus 2004-2010 Ram 1500 Mega Cab rear driveshaft flange to rear axle pinion flange or Transfer Case Flange attachment. Also used on 2008-2018 Ram 4500, Ram 5500, 2013-2018 ram 3500, and 2013.5-2018 Ram 2500 4x4s to attach the front CV Driveshaft to the front axle pinion flange. Sold individually.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Matching Parts for AAM 10.5" and 11.5" Rear Axles
Matching Parts for 2013-2018 1410 Front CV Driveshafts
Matching Parts - Saved for Future Use
Matching Parts - Saved for Future Use
Applications

Tech Note 1: Matching Parts for AAM 10.5" and 11.5" Rear Axles
QU50731 Flat Face Rear Axle Pinion Flange

Tech Note 2: Matching Parts for 2013-2018 1410 Front CV Driveshafts
Exploded View XV509 2013-2018 Ram 2500 and Ram 3500 Front CV Driveshaft
QU40953 1410 Series Double Cardan CV Head Assembly
QU10806 Grade 8 Driveshaft Bolt
QU40829 CV Ball Seal
QU40835 CV Joint Tension Spring
QU40744 CV Ball and Seal Kit
TK40705 1410 Series Non-Greaseable U-Joint
QU40789 1410 Series Greaseable U-Joint
QU40704 CV Joint Ball Seal
QU51188 2.5" x 0.120" Driveshaft Tubing
QU11051 CV Driveshaft Boot Clamp
QU11382 Front CV Driveshaft Boot
TK11394 1410 Front Driveshaft Front Flange Yoke

Tech Note 3: Matching Parts
Saved for Future Use

Tech Note 4: Matching Parts
Saved for Future Use

Applications
(Partial)

Dodge or Ram Rear Driveshaft to Rear Axle:
Ram 2500, Ram 3500: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Ram 1500 Mega Cab: 2004, 2005, 2006, 2007, 2008, 2009, 2010
Ram 4500, Ram 5500: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Dodge or Ram Rear Driveshaft to Bolt-On Transfer Case Rear Output Flange:
Ram 3500 Cab and Chassis: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Ram 4500, Ram 5500: 2008, 2009, 2010
Ram 4500, Ram 5500: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Ram 2500, Ram 3500 with Fixed Transfer Case Rear Output: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Dodge or Ram 4x4 Front CV Driveshaft to Front Axle:
Ram 4500, Ram 5500: 2008, 2009, 2010
Ram 4500, Ram 5500: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Ram 3500: 2013, 2014, 2015, 2016, 2017, 2018
Ram 2500: 2013.5, 2014, 2015, 2016, 2017, 2018

NOTE: For 4x4 Front Driveshafts, the Bolt used at the Transfer Case end is different. See QU10806.
