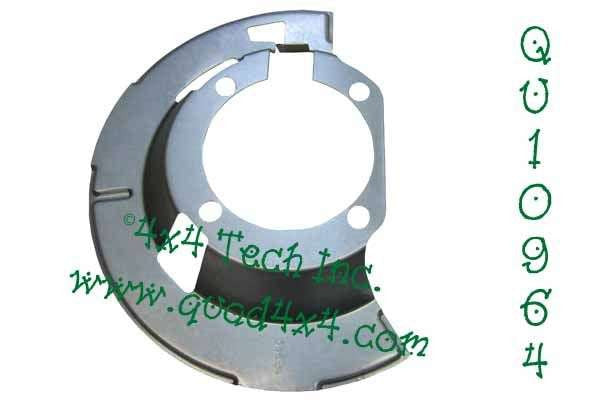

QU10964 Left Brake Shield for 2000-2002 Dodge Ram 2500, Ram 3500

QU10964 Left Brake Shield for 2000-2002 Dodge Ram 2500, Ram 3500 protects your brake pads and rotors from damaging road grit. QU10964 is a genuine original equipment part that will directly replace your rusted or damaged original Left Brake Shield. Fits both Rear Wheel and Four Wheel Anti-lock Brake Applications on all 2000, 2001, and 2002 Dodge Ram 2500 and 3500 4x4 trucks. USA Made. Special Order.

Also See: QU10964U Used available while supplies last

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Shield
Hub Removal
Ball Joints
Gaskets
Axle Shaft Seals
Matching Parts
Applications

Tech Note 1: Shield
The Brake Shield is sandwiched between the wheel hub flange and steering knuckle. When removing your wheel hub do NOT try to drive a tool between the hub and knuckle as the shield will get damaged.

Tech Note 2: Hub Removal
The first time a 2000-2002 Dodge Ram 2500, Ram 3500 Dana 60 front axle has to comes apart, it is usually an absolute WITCH to separate the wheel hub assembly from the steering knuckle as Dana did not use any anti-corrosion compound between the wheel hub flange and steering knuckle. Sometimes you can pull the entire hub off with QT1072 puller and sometimes the hub separates and is wrecked. By now, most of these axles have been apart before so the good news is, if your axle was properly reassembled, the hubs should come off with no trouble at all.

Tech Note 3: Ball Joints
Unlike 1994 to 1999 Dodge Ram trucks, 2000-2002 Ram 2500, Ram 3500 front axle ball joints are tightly pressed into the axle itself, not the steering knuckle, so you can't use a shop press like the 94-99 trucks. If you are replacing your ball joints, I Strongly recommend you use TS1065 Ball Joint Press Set.

Tech Note 4: Gaskets
It is a good idea to remove the differential cover pan and drain the diff oil before pulling the left axle shaft to prevent gear oil leaking out of the seal after the axle shaft is removed. Available genuine Dana gaskets are:
QU40367 Original Equipment Model 60/70 Fiber Differential Cover Pan Gasket
QU42029 Reusable Model 60 Differential Cover Pan Gasket

Tech Note 5: Axle Shaft Seals
Given the era of trucks this shield fits, if you remove the axle shaft, it is recommended you replace the inner axle seals which can become hard and brittle with age. For Inner Axle Shaft Seal Kits with oil seals and installation tools see: QK4621 2000-2002 with CAD. and QK4802 2002 non-CAD.
Left Seal, All Years: Pressed into the left axle tube next to the differential for all years. Differential removal is required. Use QU40298 Seal.
Right Seal, 2000-2002.5 with CAD: Pressed in the axle tube outboard of the CAD shift unit. CAD shift unit and right axle shaft removal required to replace seal. Use QU40271 Seal.
Right Axle Seal 2002 without CAD: Pressed into the right axle tube next to the differential. Differential removal is required. Use QU40298 Seal.

Tech Note 6: Matching Parts
Matching Parts for QU10964 Brake Shield:
QU10963 Right Brake Shield for 2000-2002 Ram 2500, Ram 3500
QU10594 Hub to Knuckle Bolt
QK4555 Wheel Hub Kit for 2000-2002 Ram 2500, Ram 3500 with 4 Wheel ABS
QK4574 Wheel Hub Kit for 2000-2002 Ram 2500, Ram 3500 with Rear Wheel ABS
QU10602 Tie Rod or Drag Link Nut
QU40367 Dana Original Equipment Model 60/70 Differential Cover Pan Gasket
QU42029 Dana Reusable Model 60 Differential Cover Pan Gasket
QU40090 CAD Housing Gasket for 2000-2002.5 with Central Axle Disconnect
QU40298 Inner Axle Shaft Oil Seal fits left side all 2000-2002 and right side on 2002 axles without CAD
QU40271 Right Inner Axle Shaft Oil Seal for 2000-2002.5 axles with CAD
QK4732 Outer Axle Shaft Nut and Washer Kit
QK4510 Dana OEM Ball Joint Kit
QK4776 Greaseable Ball Joint Kit
QU30332 U-Joint with greaseable Hot-Forged Cross
TK40715 Premium non-greaseable U-Joint with Cold Forged Cross
TK40724 Premium greaseable U-Joint with Cold Forged Cross|
QK4802 Inner Axle Shaft Seal Kit with Installation Tools
TS1065 Ball Joint Press Set
QT1072 Hub Puller

Applications
Dodge Ram:
2000, 2001, 2002 Ram 2500, Ram 3500
