QU10143 Timken Countershaft Front Bearing Cup for NV4500

Timken
No reviews yet Write a Review
$21.98
SKU:
10143
UPC:
198345080662
Condition:
New
Shipping:
Calculated at Checkout
In Stock & Ready To Ship!
Availability: Stocking Item-Usually ships within 1-2 business days
Current Stock:Only left:

Description

QU10143 Timken® NV4500 Countershaft Front Bearing Cup is a precision ground, taper bearing cup that is an exact replacement for the original Timken® part used by New Venture Gear (NVG) for all NV4500 transmissions in 1992-2005 Dodge and 1992-2007 GM trucks. Timken® has manufacturing plants around the world so country of origin may vary, but this part is almost always USA or Canada made. Matching Bearing is QU10142.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Matching Parts
Prep
Lubricants, Sealants, Threadlockers:
Special Tools
Matching Bearings, Seals, and Bearing Kits for Dodge NV4500
Applications

Tech Note 1: Matching Parts:
QU10142 Timken® Countershaft Front Bearing

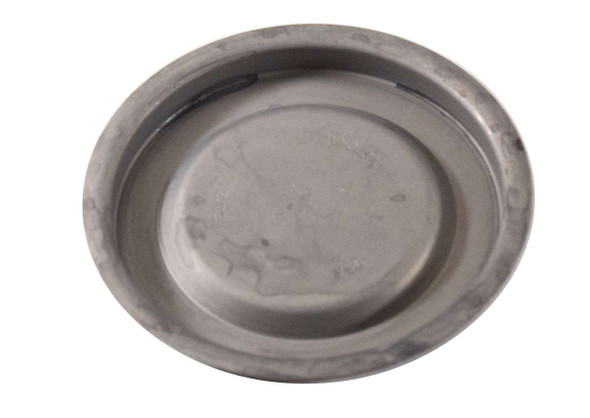

QU10140 Sealing Cap, Main Case Countershaft Front Bearing Bore
QA10008 Complete Countershaft Shim Kit
QU10008B Basic Countershaft Shim Kit
NV4500GME Low Ratio Transmission Case for 1992-1995 GM
NV4500E Low Ratio Transmission Case for 1996 GM and 1994-1996 Dodge
NV4500L High Ratio Transmission Case for 1997 and Newer GM and Dodge
QU10090 Modular Countershaft
QU10078 Countershaft Assembly for 1992-1996 EXCEPT GM with 6.34 Ratio
QU10192/QU10707 1997-2007 Countershaft Assemblies
QT1802 Countershaft Front Bearing Cup Installer
Chevy & GMC Shop Manuals
Dodge & Ram Shop Manuals

Tech Note 2: Prep:
Soak QU10143 Bearing Cup in QU90020 NV4500 GL-4 75w85w Manual Transmission Oil or other approved lubricant before assembly.

Tech Note 3: Lubricants, Sealants, Threadlockers:
Early production NV4500 Transmissions used an anaerobic sealant (QU90003) to seal between the main case and input bearing retainer, top cover, and rear housing. Mid-production units used anaerobic sealant just on the input retainer and RTV for everything else. Later production transmissions used black RTV Sealant (QU90006 or QU90005) for everything. Either type of sealant works fine (except the PTO covers ALWAYS should be sealed with RTV), but I prefer RTV for all components. Regardless of which sealant you use, make sure excess sealant does not block the lube access hole at the top of input retainer pilot that fits into the transmission case! Also, the threaded holes in the main case for the four retainer bolts and 12 PTO bolts are open ended, so you must use new bolts with factory applied threadlocker or apply Threadlocker (S24200) to your existing bolts to prevent oil seepage past the bolt threads. See my TM1003 NV4500 Shop Manual or VSG1003DVD NV4500 Overhaul Video for more information.

Lubricant and Chemical List for NV4500 Transmissions:
QU90020 NV4500 Manual Transmission Oil
QU90003 Anaerobic Sealant
QU90006 3.35 oz Ultra Black RTV Sealant
QU90005 0.5 oz Ultra Black RTV Sealant
S24200 6ml Medium Strength Blue Threadlocker
S9978 1 gram Medium Strength Blue Threadlocker
S9979 1 gram High Strength Red Threadlocker
S24026 High Temperature Threadlocker for Mainshaft Nut

Tech Note 4: Special Tools:
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated TM1003 NV4500 Rebuild Manual.

You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.

TOOLS for SPECIFIC NV4500 MODELS

Component 23 Spline
Dodge 4x4
NV4500LD
29 Spline
Dodge 4x4
NV4500HD
30 Spline
Dodge 4x2
NV4500LD
31 Spline
Dodge 4x2
NV4500HD
32 Spline
GM 4x4
35 Spline
GM 4x2
Mainshaft Nut QT2002 QT2001
QT2036
QT2002 QT2001
QT2036
QT2002
QT2028
1-1/2" Hex
Socket
Mainshaft Holding NLA QT2000 NLA QT2011 N/A N/A
5th Gear Nut
Torx® Cross Bolt
N/A QT9205 N/A QT9205 N/A N/A
Output Seal Installer N/A QT1801 N/A QT2058
CALL
Not Used Not Used
Tailshaft Bushing Remover and Installer Not Used Not Used Not Used QT2044 Not Used Not Used

TOOLS For ALL NV4500 MODELS

Countershaft
Front Bearing Cup Installer
QT1802 Use with QT1101 or QT1119 Driver Handle. Also can use flat side to install Dodge 4x4 Rear Output Seal
Countershaft Front Bearing Installer QT2004 Can also use to press 3-4 Synchro Hub on original equipment mainshafts
Input Bearing & Countershaft Rear Bearing Installer QT2005 Can also use to install Input Seal
Input Bearing Cup Installer QT1801 Use with QT1100, QT1101, QT1116, or QT1119 Driver Handle.
Countershaft Support QT2006 Use to support front of countersahft when installing countershaft rear bearing
1-2 Synchronizer Support QT2008 Use to support 1-2 synchronizer hub during synchronizer assembly
10mm 1/2" Drive 12 Point Socket QT1020 USA Made Impact Socket for Factory Tailshaft Housing Bolts
Long Shank Punch for Shift Lug QT9300 3/16" x 8" Shank for 5th Gear Shift Lug Roll Pin



Tech Note 5: Matching Bearings, Seals, and Bearing Kits for Dodge NV4500:

Bearing Individual
Bearing
or
Seal
1994-2004
TK10237
Taper Bearing Kit
1994-2004
QK1136
Primary Bearing Kit
1994-1996 QU10001
Master Bearing
& Seal Kit
1997-2004 QU10005
Master Bearing
& Seal Kit
Input
Bearing Cup
QU10125 YES YES YES YES
Input
Bearing
QU10124 YES YES YES YES
Mainshaft
Rear Cup
QU10118 YES YES YES YES
Mainshaft
Rear
Bearing
QU10119 YES YES YES YES
Countershaft
Front Cup
QU10143 YES YES YES YES
Countershaft
Front
Bearing
QU10142 YES YES YES YES
Countershaft
Rear Cup
QU10145 YES YES YES YES
Countershaft
Rear
Bearing
QU10144 YES YES YES YES
Input
Pocket
To Main
QU10133 NO YES YES YES
Input to
Main Thrust
QU10134 NO YES YES YES
5th QU10141 NO NO YES YES
3rd QU10135 NO NO YES YES
2nd QU10055 NO NO YES YES
1st QU10055 NO NO YES YES
Reverse QU10058 NO NO YES YES
Reverse
Idler Bearing
1992-96
QU10018
(quan 2)
NO NO YES NO
Reverse
Idler
Bearing
1997-07
QU10019 NO NO NO YES
 Input Seal QU10126   NO  YES  YES YES
 4x4 Output
Seal
QU10123   NO  YES  YES YES
 NV4500HD
4x2
Output
Seal
QU10023  NO  YES  YES YES
NV4500LD
4x2
Output
Seal
QU10178 NO NO NO NO
Countershaft
Front
Case Cap
 QU10140  NO YES YES  YES
 RTV Sealant  QU90006  NO  YES YES   YES
Medium Strength
Threadlocker
 S24200  NO  YES  YES YES
 High Temp
Threadlocker
 S24026  NO YES   YES YES



Applications:
Chevy and GMC:
New Venture NV4500 5 Speed Manual Transmissions: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

Dodge:
New Venture NV4500 5 Speed Manual Transmissions: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
